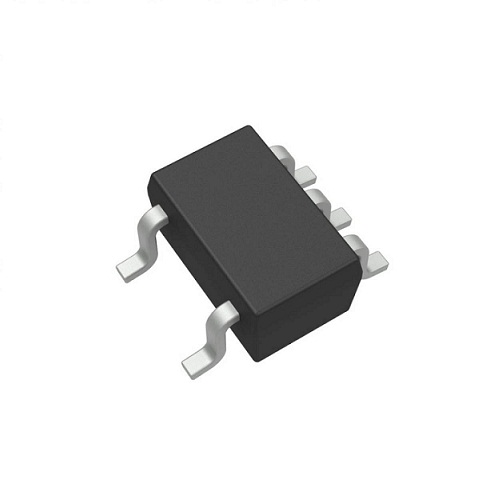

SN74LVC1G125DCKR Non-Inverting Buffer IC SOT-353 (Single 1-Bit 3-State Buffer Integrated Circuit)

The SN74LVC1G125DCKR is a high-speed single non-inverting buffer with a 3-state output designed for reliable digital signal buffering and logic interfacing. Operating from a wide supply voltage range of 1.65V to 5.5V, it is compatible with 1.8V, 2.5V, 3.3V, and 5V logic systems. Housed in a compact SOT-353 Surface Mount Device package, this IC is ideal for signal isolation, bus interfacing, level-compatible buffering, and embedded electronic applications.

Key Features -

• Single non-inverting buffer

• 3-state output for bus sharing applications

• Wide operating voltage range from 1.65V to 5.5V

• Compatible with 1.8V, 2.5V, 3.3V, and 5V logic

• High-speed signal buffering

• Low power consumption

• Compact SOT-353 Surface Mount Device package

• High noise immunity

• Suitable for digital logic interfacing

• Reliable operation across multiple logic families

Specifications -

• Product Type - Non-Inverting Buffer Integrated Circuit

• Model - SN74LVC1G125DCKR

• Logic Function - Non-Inverting Buffer

• Number of Elements - 1

• Number of Bits - 1

• Output Type - 3-State

• Supply Voltage Range - 1.65V to 5.5V

• Compatible Logic Levels - 1.8V, 2.5V, 3.3V, 5V

• Package Type - SOT-353

• Mounting Type - Surface Mount Device

• Logic Family - LVC

Applications -

• Digital signal buffering

• Microcontroller interfacing

• Bus isolation

• Shared bus systems

• Logic signal conditioning

• Data communication circuits

• Embedded system design

• Consumer electronics

• Industrial control equipment

• Printed Circuit Board signal routing
