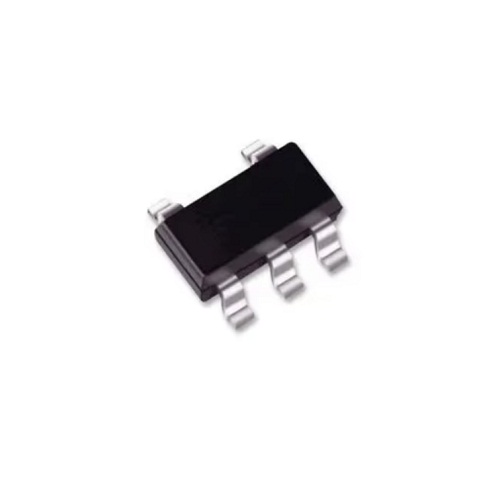

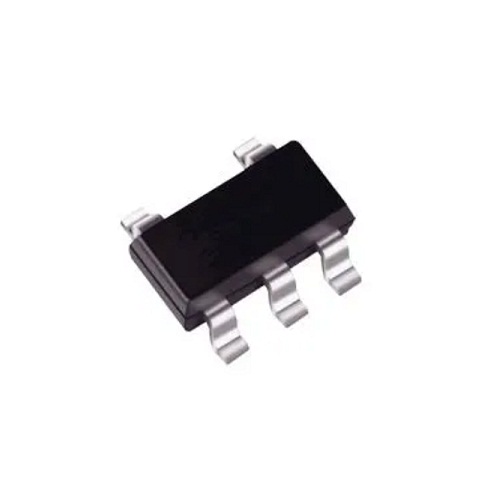

SN74LVC1G17DBVRG4 Schmitt Trigger Buffer IC SOT-23-5 (Single Non-Inverting Buffer with Schmitt Trigger Input)

The SN74LVC1G17DBVRG4 is a high-speed single non-inverting buffer featuring a Schmitt Trigger input for improved noise immunity and clean signal conditioning. Operating from a wide supply voltage range of 1.65V to 5.5V, it supports down-voltage translation and accepts input voltages up to 5.5V. Its low power consumption, fast propagation delay, and high output drive capability make it ideal for digital signal conditioning, microcontroller interfacing, industrial automation, and embedded electronic applications.

Key Features -

• Single non-inverting buffer with Schmitt Trigger input

• Wide operating voltage from 1.65V to 5.5V

• Supports down-voltage translation

• Inputs tolerate voltages up to 5.5V

• IOFF feature supports partial-power-down operation

• Back-drive protection for improved reliability

• Fast propagation delay of 4.6ns at 3.3V

• Low power consumption with 10µA typical ICC

• High output drive capability of ±24mA at 3.3V

• Green and environmentally compliant product

Specifications -

• Product Type - Schmitt Trigger Buffer Integrated Circuit

• Model - SN74LVC1G17DBVRG4

• Logic Function - Non-Inverting Buffer

• Input Type - Schmitt Trigger

• Number of Elements - 1

• Number of Bits - 1

• Supply Voltage Range - 1.65V to 5.5V

• Input Voltage Tolerance - Up to 5.5V

• Propagation Delay (tpd) - 4.6ns Typical at 3.3V

• Supply Current (ICC) - 10µA Typical

• Output Drive Current - ±24mA at 3.3V

• Latch-Up Performance - Exceeds 100mA per JESD 78 Class II

• Package Type - SOT-23-5

• Mounting Type - Surface Mount Device

Applications -

• Digital signal conditioning

• Noise filtering for digital signals

• Microcontroller interfacing

• Logic level buffering

• Switch debouncing circuits

• Industrial automation systems

• Embedded electronic systems

• Consumer electronics

• Communication equipment

• Printed Circuit Board signal integrity improvement
