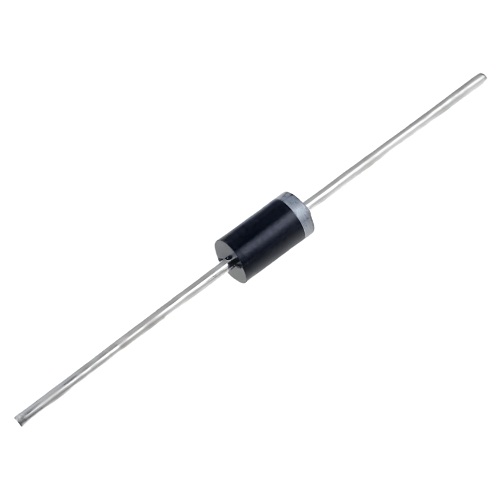

SR160 Diode – 60V, 1A Fast/Standard Rectifier Diode (DO-41 / DO-204AL, Through Hole)

The SR160 diode is a general-purpose single rectifier diode designed for low-voltage power rectification and protection applications. With a 60V repetitive peak reverse voltage and 1A average forward current, it is suitable for use in power supplies, polarity protection circuits, signal rectification, and small electronic devices. Its DO-41 through-hole package ensures easy PCB mounting and reliable thermal performance.

Key Features -

• Single rectifier diode configuration

• 60V repetitive peak reverse voltage rating

• 1A average forward current capability

• High surge current handling up to 30A

• Low forward voltage drop (max 0.7V)

• Through-hole DO-41 package for easy mounting

• Reliable performance in compact circuits

• High operating temperature capability up to 150°C

Specifications -

• Product Type - Rectifier Diode

• Part Number - SR160

• Diode Configuration - Single

• Repetitive Peak Reverse Voltage (VRRM) - 60V

• Average Forward Current (IF) - 1A

• Forward Surge Current - 30A

• Forward Voltage Drop (VF) - Max 700mV

• Package Type - DO-41 (DO-204AL)

• Mounting Type - Through Hole

• No. of Pins - 2

• Max Operating Temperature - 150°C

Applications -

• AC to DC rectification

• Power supply circuits

• Battery charging circuits

• Polarity protection

• DC-DC converters (low power)

• Signal rectification

• Consumer electronics

• General-purpose electronic circuits
