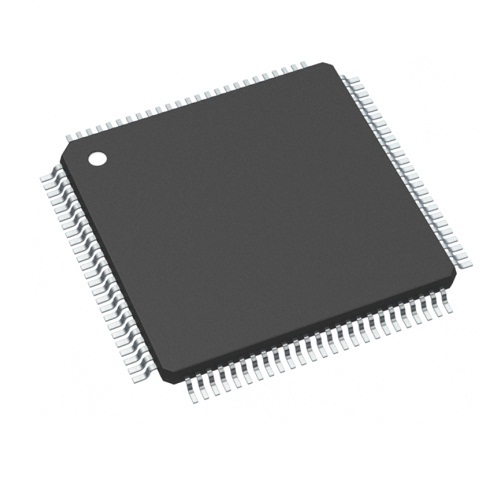

STM32F103VCT6 ARM Cortex-M3 32-Bit Microcontroller 72MHz LQFP-100 (256KB Flash 48KB SRAM MCU)

The STM32F103VCT6 is a high-performance 32-bit microcontroller from the STM32F1 series, based on the ARM Cortex-M3 core operating at up to 72MHz. It features 256KB of Flash memory, 48KB of SRAM, multiple communication interfaces, advanced timers, high-speed Analog-to-Digital Converters, Digital-to-Analog Converters, and up to 80 General Purpose Input/Output pins. Designed for embedded control, industrial automation, motor control, communication systems, and Internet of Things applications, it delivers excellent processing performance with low power consumption.

Key Features -

• ARM Cortex-M3 32-bit processor

• Maximum operating frequency of 72MHz

• 256KB on-chip Flash memory

• 48KB SRAM

• Operating voltage range from 2V to 3.6V

• Three 12-bit Analog-to-Digital Converters with up to 16 channels

• Two 12-bit Digital-to-Analog Converters

• Up to 80 high-speed General Purpose Input/Output pins

• Integrated CRC calculation unit and 96-bit unique device identifier

• Serial Wire Debug (SWD) and JTAG debugging support

• Multiple communication peripherals including SPI, I²C, USART, USB, SDIO, and CAN

• Wide operating temperature range

Specifications -

• Product Type - 32-Bit Microcontroller

• Model - STM32F103VCT6

• Microcontroller Family - STM32F1 Series

• Processor Core - ARM Cortex-M3

• CPU Architecture - 32-Bit

• Maximum Clock Frequency - 72MHz

• Flash Memory - 256KB

• SRAM - 48KB

• Operating Voltage - 2V to 3.6V

• Analog-to-Digital Converters - 3 × 12-Bit, Up to 16 Channels

• Digital-to-Analog Converters - 2 × 12-Bit

• General Purpose Input/Output Pins - Up to 80

• Timers - 4 General Purpose, 2 Advanced Control, 2 Basic

• SPI Interfaces - 3

• I²C Interfaces - 2

• USART Interfaces - 5

• USB Interface - 1

• SDIO Interface - 1

• CAN Interface - 1

• Debug Interfaces - SWD, JTAG

• CRC Unit - Integrated

• Unique Identifier - 96-Bit

• Operating Temperature - -40°C to +85°C

• Package Type - LQFP-100

• Mounting Type - Surface Mount Device

Applications -

• Industrial automation systems

• Motor control applications

• Embedded control systems

• Internet of Things devices

• Robotics

• Data acquisition systems

• Communication equipment

• Medical electronics

• Consumer electronics

• Smart energy and metering systems
