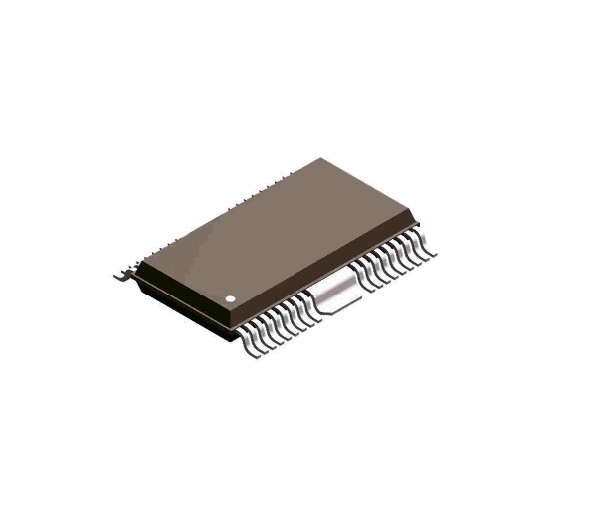

TB62209FG Stepper Motor Driver IC (HSSOP 36)

The TB62209FG is a stepper motor driver IC designed for controlling bipolar stepper motors in precision motion control applications. It integrates motor drive circuitry and current control functions, making it suitable for printers, automation equipment, office machines and other stepper motor based systems.

Key Features -

• Stepper motor driver IC

• Designed for bipolar stepper motor control

• Integrated motor drive output stage

• Supports microstepping operation

• Built in current control functionality

• Suitable for precise motor positioning

• Direction and stepping control

• Integrated protection functions

• Suitable for compact motor control circuits

• HSSOP 36 package

Specifications -

• Part Number: TB62209FG

• Component Type: Stepper Motor Driver IC

• Motor Type: Bipolar Stepper Motor

• Control Type: Step and Direction

• Drive Method: Constant Current

• Microstepping: Supported

• Package: HSSOP 36

• Mounting Type: SMD

• Application: Stepper Motor Control

Applications -

• Stepper motor controllers

• Printers and scanners

• Office automation equipment

• Industrial automation

• Positioning systems

• Robotics

• CNC control systems

• Precision motion control

• Electronic equipment

• Motorized mechanisms
