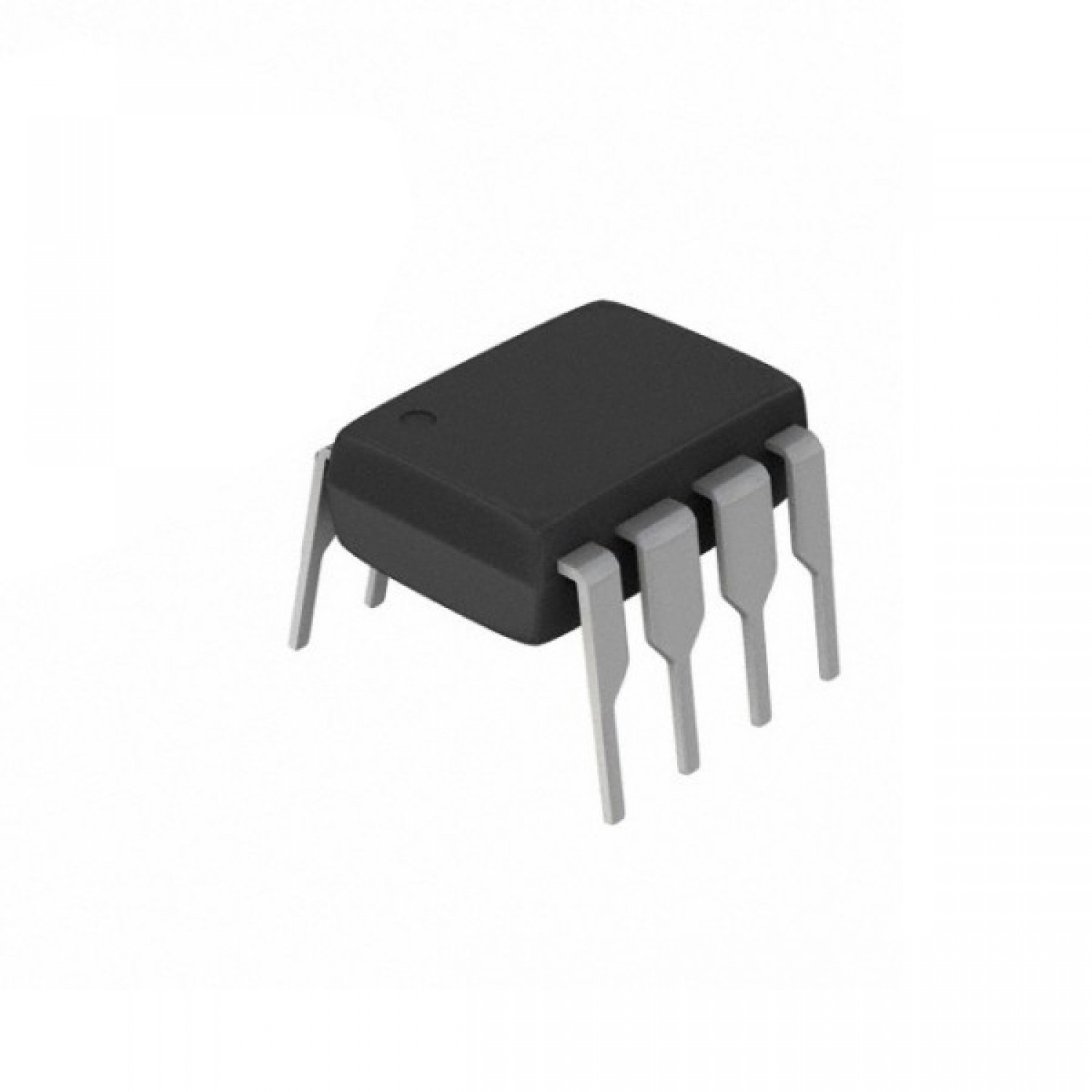

TC4427CPA Dual High-Speed MOSFET Driver IC DIP-8 (TC4427CPA MOSFET Gate Driver IC)

The TC4427CPA is a dual high-current MOSFET gate driver IC designed to efficiently drive power MOSFETs, IGBTs, and other capacitive loads in switching power supplies, motor control systems, inverters, and power electronics applications. Housed in a DIP-8 package, it provides high peak output current, fast switching performance, and reliable operation for demanding power control circuits.

Key Features -

• Dual MOSFET gate driver outputs

• High peak output drive current

• Fast rise and fall times

• Wide operating voltage range

• Low power consumption

• TTL and CMOS logic compatible inputs

• DIP-8 through hole package

Specifications -

• Product type - MOSFET gate driver IC

• Model - TC4427CPA

• Driver type - Dual non-inverting driver

• Package type - DIP-8

• Mounting type - Through Hole Mount

• Output channels - 2

• Peak output current - Up to 1.5A per channel

• Input compatibility - TTL and CMOS logic

• Operating voltage - 4.5V to 18V

• Additional features - High-speed switching, low propagation delay, and latch-up protection

Applications -

• MOSFET gate driving circuits

• Switch mode power supplies

• DC-DC converters

• Motor control systems

• Inverter circuits

• Power management systems

• Industrial automation equipment
