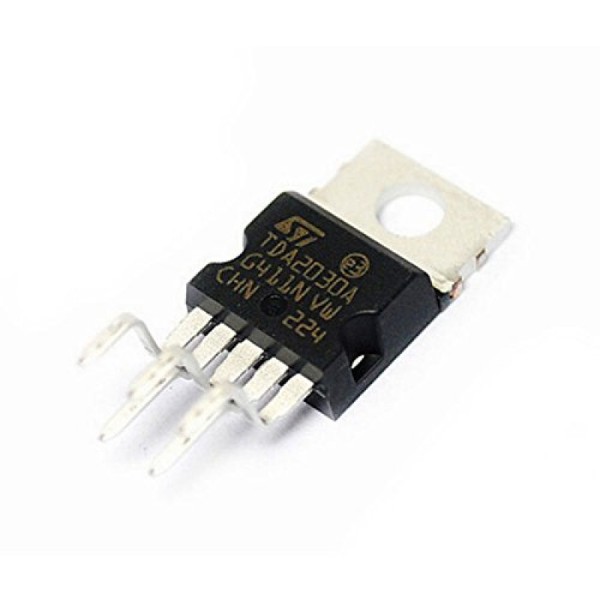

TDA2030 Audio Power Amplifier IC (5 Pin Pentawatt, 14W Output)

The TDA2030 is a monolithic audio power amplifier IC designed for high quality audio amplification in consumer and electronic audio equipment. It operates as a Class AB amplifier and provides high output current with low harmonic and crossover distortion. Its built in thermal shutdown and short circuit protection make it suitable for compact audio amplifier circuits.

Key Features -

• Class AB audio power amplifier

• Output power up to 14W under specified operating conditions

• High output current capability

• Low harmonic and crossover distortion

• Built in thermal shutdown protection

• Short circuit protection

• Suitable for single supply and dual supply amplifier designs

• Requires external components for gain setting and frequency response

Specifications -

• Part Number: TDA2030

• Component Type: Audio Power Amplifier

• Output Power: Up to 14W, depending on supply voltage, speaker impedance, and distortion limits

• Supply Voltage: Depends on single or dual supply configuration

• Maximum Output Current: Approximately 3.5A peak

• Amplifier Class: Class AB

• Package: 5 Pin Pentawatt

• Load Impedance: Depends on the supply voltage and circuit design

Applications -

• Home audio amplifier circuits

• Active speaker systems

• Television audio circuits

• Radio and multimedia audio equipment

• Small public address systems

• Audio amplifier projects and prototypes
