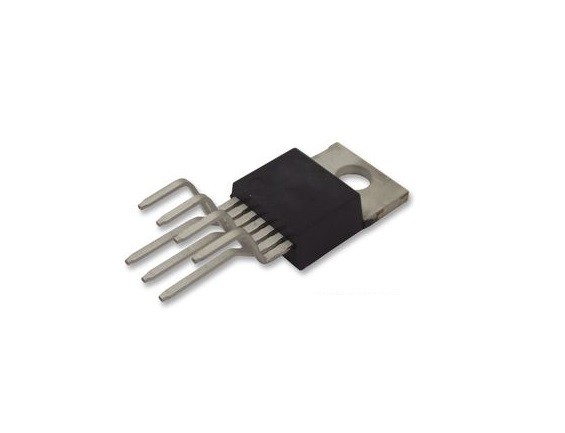

TDA4863AJ Vertical Deflection Booster IC (7 Pin DBS7P)

The TDA4863AJ is a vertical deflection booster IC designed for CRT monitor vertical deflection systems with frame frequencies up to 200 Hz. It integrates a power amplifier with differential inputs and an internal flyback generator for efficient vertical output drive.

Key Features -

• Vertical deflection booster IC

• Power amplifier with differential inputs

• Vertical output current up to 3A peak to peak

• Supports vertical deflection frequencies up to 200 Hz

• High linearity sawtooth signal amplification

• Integrated flyback generator

• Internally doubled flyback supply voltage

• No separate flyback supply required

• Designed for CRT monitor deflection circuits

• 7 pin DBS7P power package

Specifications -

• Part Number: TDA4863AJ

• Manufacturer: Philips Semiconductors

• Component Type: Vertical Deflection Booster

• Maximum Vertical Output Current: 3A Peak to Peak

• Maximum Frame Frequency: 200 Hz

• Supply Voltage 1: 9V to 30V

• Amplifier Input: Differential

• Flyback Generator: Integrated

• Flyback Supply: Internally Doubled

• Package Type: DBS7P

• Number of Pins: 7

• Mounting Type: Through Hole

Applications -

• CRT computer monitors

• Vertical deflection systems

• CRT display equipment

• Monitor deflection circuits

• Vertical scan circuits

• CRT display repair

• Legacy video equipment

• Industrial CRT displays
