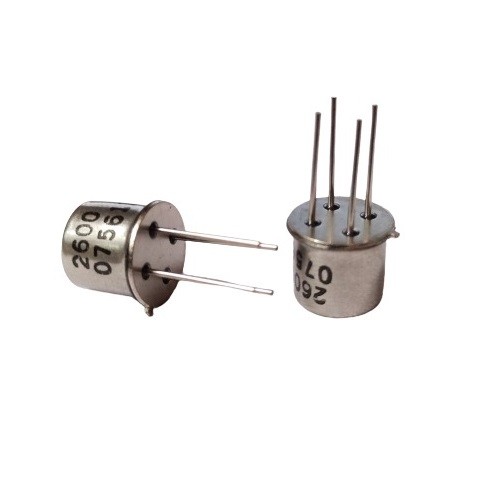

TGS2600 Air Contaminants Gas Sensor (TGS2600 Figaro Gas Sensor)
The TGS2600 Air Contaminants Gas Sensor is a high sensitivity semiconductor gas sensor designed to detect air contaminants such as hydrogen and carbon monoxide at low concentration levels. It uses a metal oxide sensing element that changes resistance based on gas presence, enabling accurate air quality monitoring. Developed by Figaro, this sensor provides stable performance, fast response, and long operational life for environmental sensing applications.
The TGS2600 gas sensor is widely used in India for air quality monitoring, indoor pollution detection, industrial electronics, and embedded systems. It is valued for its high sensitivity to low level contaminants, reliable operation, and consistent performance in environmental monitoring applications.
Key Features
- High Sensitivity Air Contaminant Detection: Detects hydrogen and carbon monoxide
- Low Concentration Detection: Suitable for indoor air quality monitoring
- Stable and Reliable Output: Consistent long term performance
- Fast Response and Recovery: Quick detection capability
- Long Operational Life: Durable sensing element
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Semiconductor gas sensor
- Target Gas: Air contaminants hydrogen carbon monoxide
- Detection Range: Low concentration gas detection
- Output Type: Analog resistance variation
- Operating Voltage: Standard sensor heater voltage
- Heater Consumption: Low power heater element
- Response Time: Fast response and recovery
- Mounting Type: Through hole sensor
- Manufacturer: Figaro
- Applications: Air quality monitoring indoor pollution detection safety systems industrial electronics embedded systems
Pinout Configuration Sensor Layout
- Heater pins for internal heating element
- Sensor output pins for resistance measurement
- VCC supply connection
- GND ground connection
