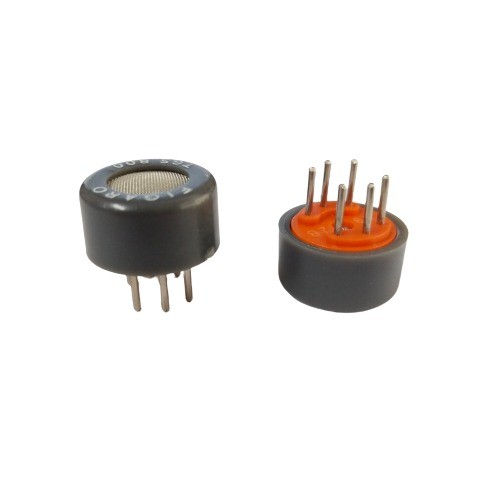

TGS800 Various Gas Sensor (TGS800 Figaro Gas Sensor)
The TGS800 Various Gas Sensor is a high sensitivity semiconductor gas sensor designed for detecting a wide range of gases including air contaminants and combustible gases. It uses a metal oxide sensing element that changes resistance based on gas concentration, enabling effective detection and monitoring in compact electronic systems. Developed by Figaro, this sensor offers stable performance, fast response, and long operational life for versatile sensing applications.
The TGS800 gas sensor is widely used in India for air quality monitoring, gas detection systems, portable devices, and embedded systems. It is valued for its compact size, multi gas detection capability, and reliable performance in industrial electronics and environmental monitoring applications.
Key Features
- Multi Gas Detection: Detects various gases and air contaminants
- High Sensitivity: Accurate detection across multiple gas types
- Compact Design: Suitable for portable and small devices
- Stable and Reliable Output: Consistent long term performance
- Fast Response and Recovery: Quick detection capability
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Semiconductor gas sensor
- Target Gas: Various gases air contaminants combustible gases
- Detection Range: Suitable for multi gas monitoring
- Output Type: Analog resistance variation
- Operating Voltage: Standard sensor heater voltage
- Heater Consumption: Low power heater element
- Response Time: Fast response and recovery
- Mounting Type: Through hole sensor
- Manufacturer: Figaro
- Applications: Air quality monitoring gas detection portable devices industrial electronics embedded systems environmental monitoring
Pinout Configuration Sensor Layout
- Heater pins for internal heating element
- Sensor output pins for resistance measurement
- VCC supply connection
- GND ground connection
