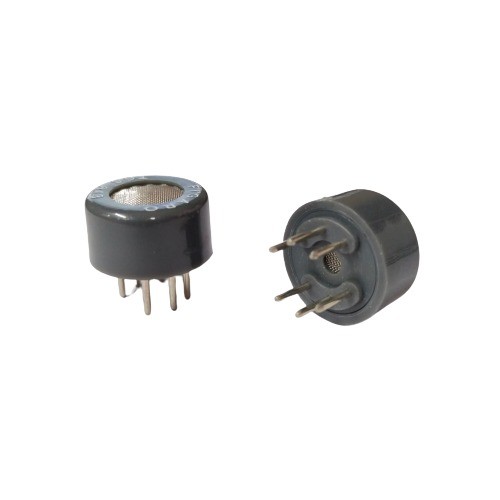

TGS813 Combustible Gas Sensor IC Module (Figaro Combustible Gas Sensor)

The TGS813 Combustible Gas Sensor IC Module is a high-sensitivity semiconductor gas sensor developed by Figaro for the reliable detection of combustible gases, including LPG, propane, and methane. It utilizes a metal oxide semiconductor (MOS) sensing element whose electrical resistance changes according to the concentration of combustible gases in the surrounding air. This resistance variation can be measured and converted into an analog signal for accurate gas monitoring and leak detection.

The TGS813 is widely used in domestic gas leak detectors, industrial safety systems, gas monitoring equipment, and embedded electronics. Its excellent sensitivity, stable output, fast response, and long operational life make it an ideal choice for safety-critical combustible gas detection applications.

Key Features -

• High sensitivity to combustible gases

• Detects LPG, propane, and methane

• Metal oxide semiconductor sensing technology

• Stable and reliable sensor output

• Fast response and recovery time

• Long operational life

• Low power heater element

• Easy integration with microcontroller-based systems

• Suitable for industrial and embedded applications

Specifications -

• Product Type: Combustible Gas Sensor Module

• Sensor Model: TGS813

• Manufacturer: Figaro

• Sensor Type: Metal Oxide Semiconductor (MOS) Gas Sensor

• Target Gases: LPG, Propane, Methane

• Output Type: Analog Resistance Variation

• Detection Range: Suitable for Combustible Gas Monitoring

• Operating Voltage: Standard Sensor Heater Voltage

• Heater Consumption: Low Power

• Response Time: Fast Response and Recovery

• Mounting Type: Through-Hole

Applications -

• LPG gas leak detection systems

• Domestic gas safety equipment

• Industrial combustible gas monitoring

• Gas leakage alarm systems

• Embedded system projects

• IoT-based gas detection systems

• Safety and fire prevention systems

• Laboratory and research equipment
