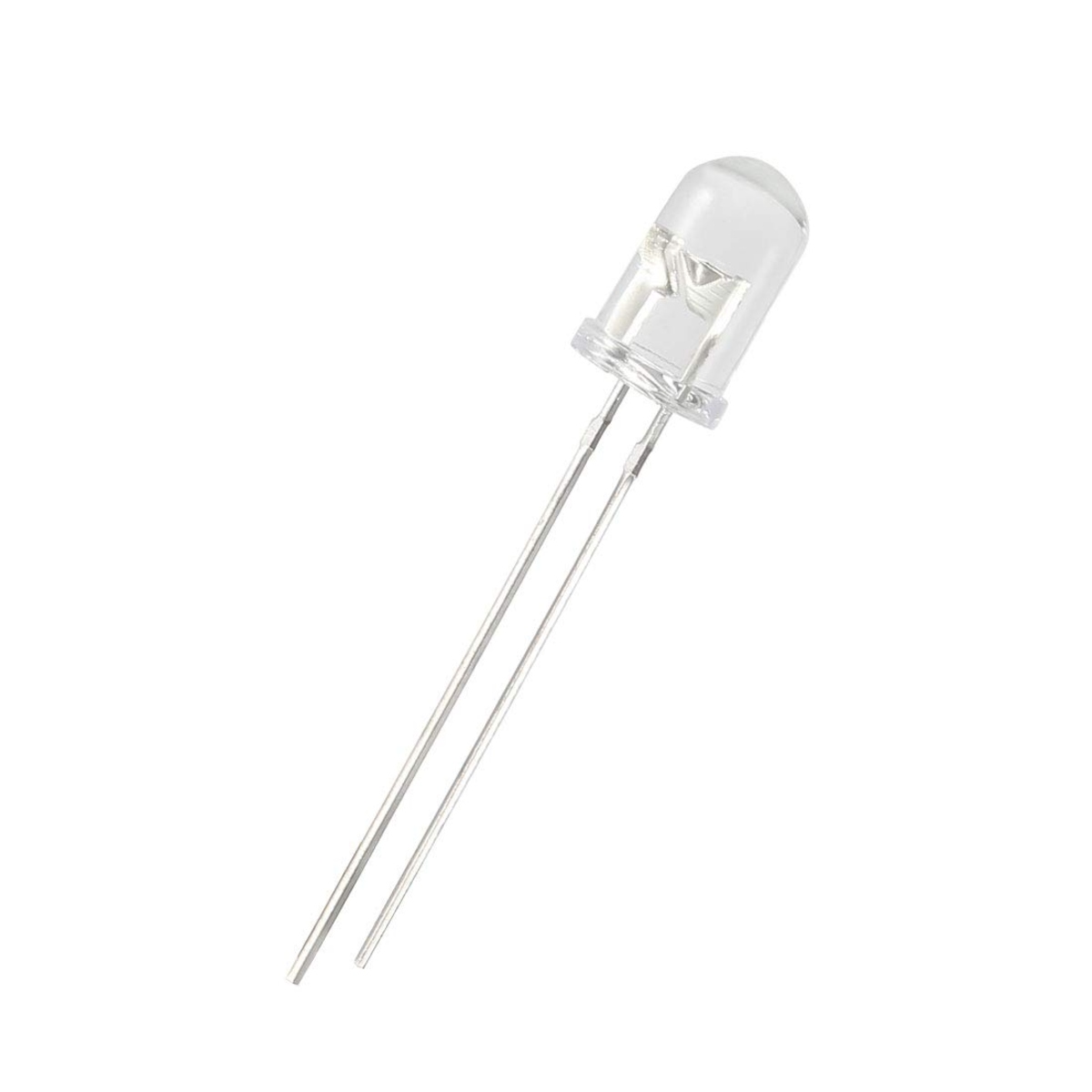

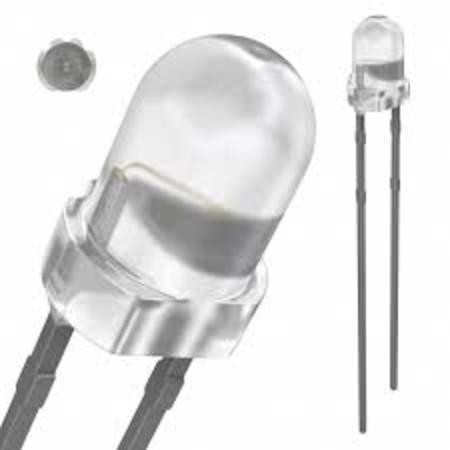

TIL32 940nm Infrared Emitter Diode (IR LED)

The TIL32 is an infrared emitting diode designed to transmit infrared light for optical sensing, detection and communication applications. Operating at a wavelength of approximately 940nm, it serves as an infrared light source for systems using compatible photodiodes, phototransistors and other optical receivers. Its through hole package supports integration into printed circuit boards for electronic prototypes and sensing equipment.

Key Features -

• Infrared light emission at approximately 940nm

• Designed for optical transmission applications

• Suitable for use with compatible infrared receivers

• Through hole package for PCB mounting

• Supports optical detection and switching circuits

• Suitable for embedded electronics and industrial instrumentation

Specifications -

• Device Type: Infrared emitting diode

• Model: TIL32

• Wavelength: Approximately 940nm, verify against the manufacturer datasheet

• Forward Current: Refer to the exact manufacturer datasheet

• Forward Voltage: Refer to the exact manufacturer datasheet

• Output Type: Infrared light emission

• Package Type: Through hole LED type

• Mounting Type: Printed circuit board mounting

• Optical output characteristics and electrical ratings: Refer to the exact manufacturer datasheet

Applications -

• Infrared transmitter circuits

• Optical interrupters

• Proximity sensing systems

• Infrared communication projects

• Photodiode and phototransistor based detection

• Embedded electronics projects

• Industrial optical sensing equipment
