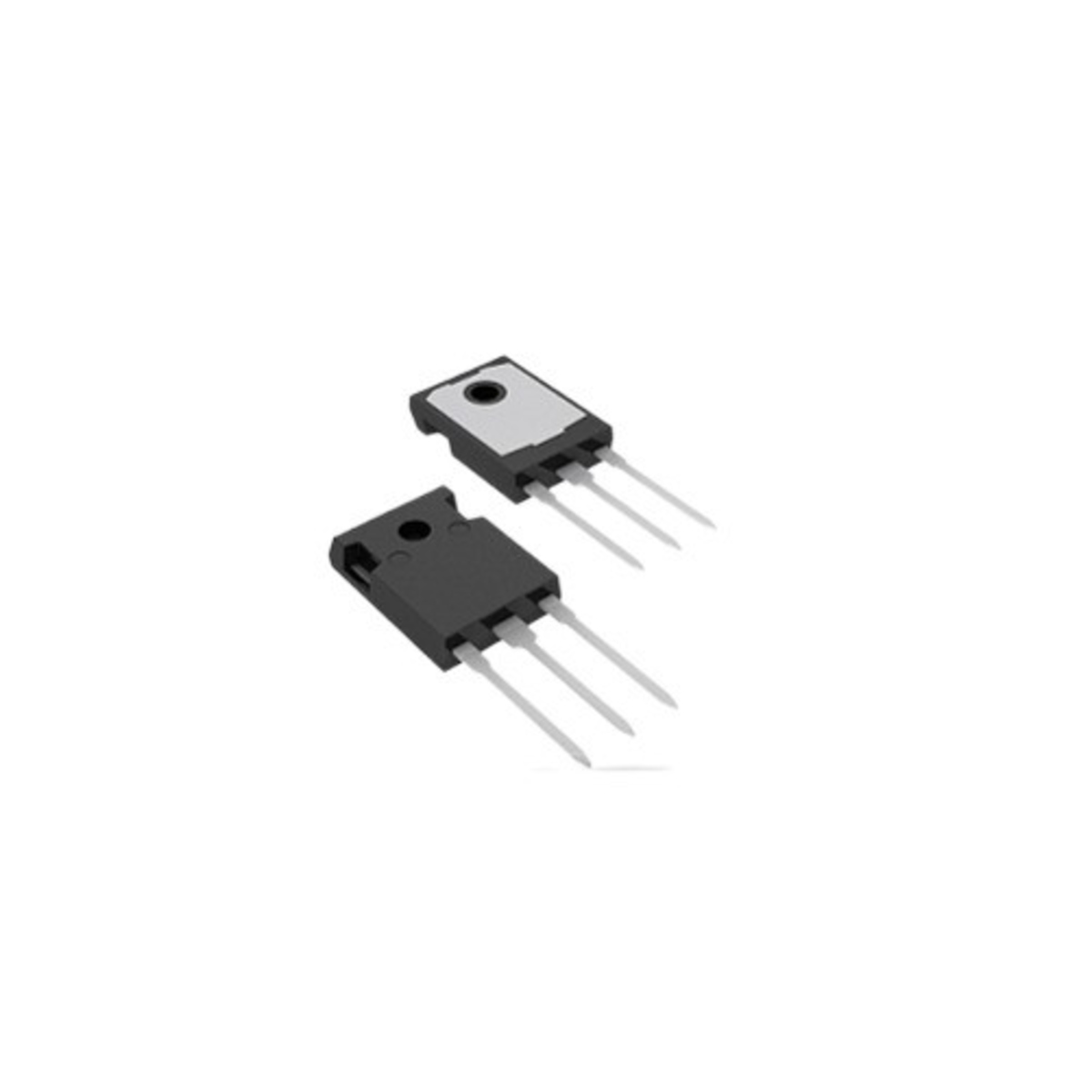

TIP36C PNP Power Transistor 100V 25A TO-247 (TIP36C Power Amplifier Transistor)

The TIP36C is a high-power PNP bipolar junction transistor designed for power amplification, switching, motor control, voltage regulation, and audio amplifier applications. With a collector-emitter voltage rating of 100V and a continuous collector current of 25A, it delivers reliable performance in high-current and high-power electronic circuits.

Its TO-247 package provides excellent thermal performance, making it suitable for power supplies, industrial control systems, inverters, and audio power amplifiers.

Key Features -

• PNP power transistor

• 100V collector-emitter voltage rating

• 25A continuous collector current

• High power dissipation capability

• Suitable for amplification and switching

• Excellent thermal performance

• TO-247 package

Specifications -

• Product type - Power Transistor

• Model - TIP36C

• Transistor type - PNP Bipolar Junction Transistor

• Collector-emitter voltage (VCEO) - 100V

• Collector current (IC) - 25A

• Package type - TO-247

• Mounting type - Through Hole Mount

• Power dissipation - High Power Design

• Application - Amplification and Switching

• Additional features - Robust thermal characteristics

Applications -

• Audio power amplifiers

• Power supply circuits

• Motor control systems

• Voltage regulators

• Inverter circuits

• Industrial electronics

• High-current switching applications
