TIP41C NPN Power Transistor (100V 6A TO-220 General Purpose Power Transistor)

The TIP41C is a general-purpose NPN power transistor designed for medium-power switching, amplification, and control applications. Its high collector-emitter voltage and current handling capability make it suitable for power supplies, motor drivers, audio amplifiers, relay drivers, and industrial electronic circuits.

Key Features -

• NPN silicon power transistor

• Collector-Emitter voltage up to 100V

• Collector current up to 6A

• Suitable for medium-power switching applications

• Good current gain characteristics

• TO-220 through-hole package

• Suitable for amplification and power control circuits

Specifications -

• Product type - NPN Power Transistor

• Part number - TIP41C

• Transistor type - NPN

• Collector-Emitter voltage VCEO - 100V

• Collector-Base voltage VCBO - 100V

• Emitter-Base voltage VEBO - 5V

• Continuous collector current IC - 6A

• Peak collector current - 10A

• Power dissipation - 65W

• DC current gain hFE - 15 to 75

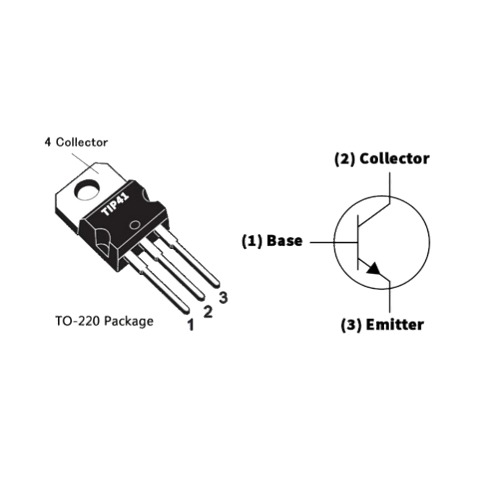

• Package type - TO-220

• Mounting type - Through-Hole

• Number of pins - 3

• Operating junction temperature - Up to +150°C

Applications -

• Power switching circuits

• Audio amplifier circuits

• DC motor drivers

• Relay and solenoid drivers

• Voltage regulator circuits

• Power supply circuits

• Battery charging circuits

• Industrial control equipment

• General-purpose power electronics
