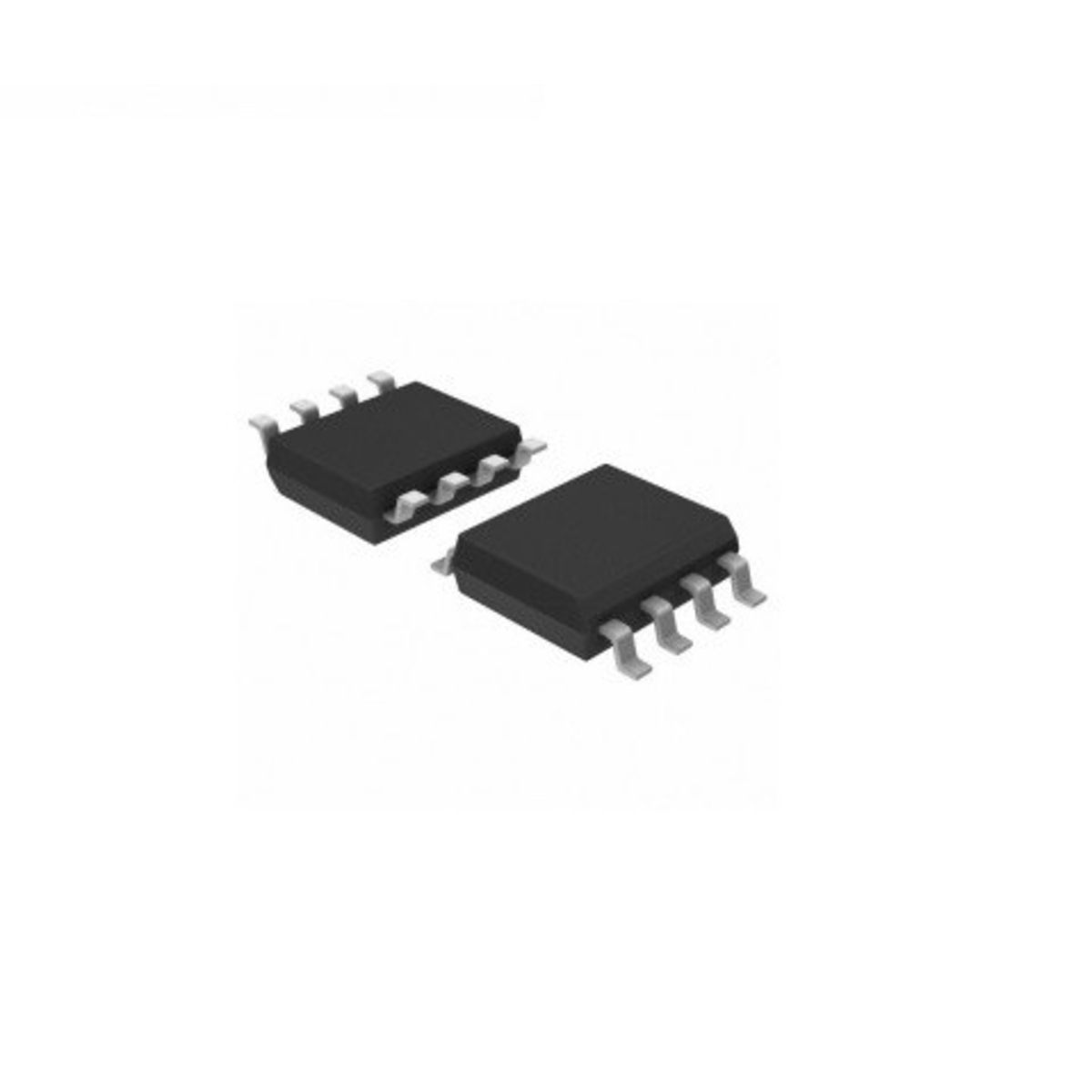

TL061 SOIC-8 Low Power JFET Input Operational Amplifier IC (TL061)
The TL061 is a low power JFET input operational amplifier IC designed for signal amplification, filtering, buffering, and analog processing applications. It offers low power consumption, high input impedance, and stable performance, making it suitable for battery operated devices, audio circuits, sensor interfaces, and embedded analog electronics.
Key Features -
- Low power JFET input operational amplifier
- High input impedance performance
- Low supply current consumption
- SOIC-8 surface mount package
- Stable and low noise analog operation
Specifications -
- IC type / Product type - JFET Input Operational Amplifier IC
- Logic family / Component type - Linear Analog IC
- Package type - SOIC-8 SMD IC
- Supply voltage - Approx +/-5V to +/-18V DC
- Input voltage - Differential analog input
- Output voltage - Analog amplified output
- Current rating - Low power supply current operation
- Frequency / propagation delay - Approx 1MHz gain bandwidth product
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - JFET input stage, high slew rate, low input bias current, high input impedance
Applications -
- Audio preamplifier circuits
- Signal conditioning systems
- Active filter circuits
- Sensor interface applications
- Battery powered embedded electronics projects
Pinout Configuration -
- Pin 1 - Offset null terminal
- Pin 2 - Inverting input
- Pin 3 - Non-inverting input
- Additional pins - Negative supply pin, output pin, positive supply pin, offset null terminal
