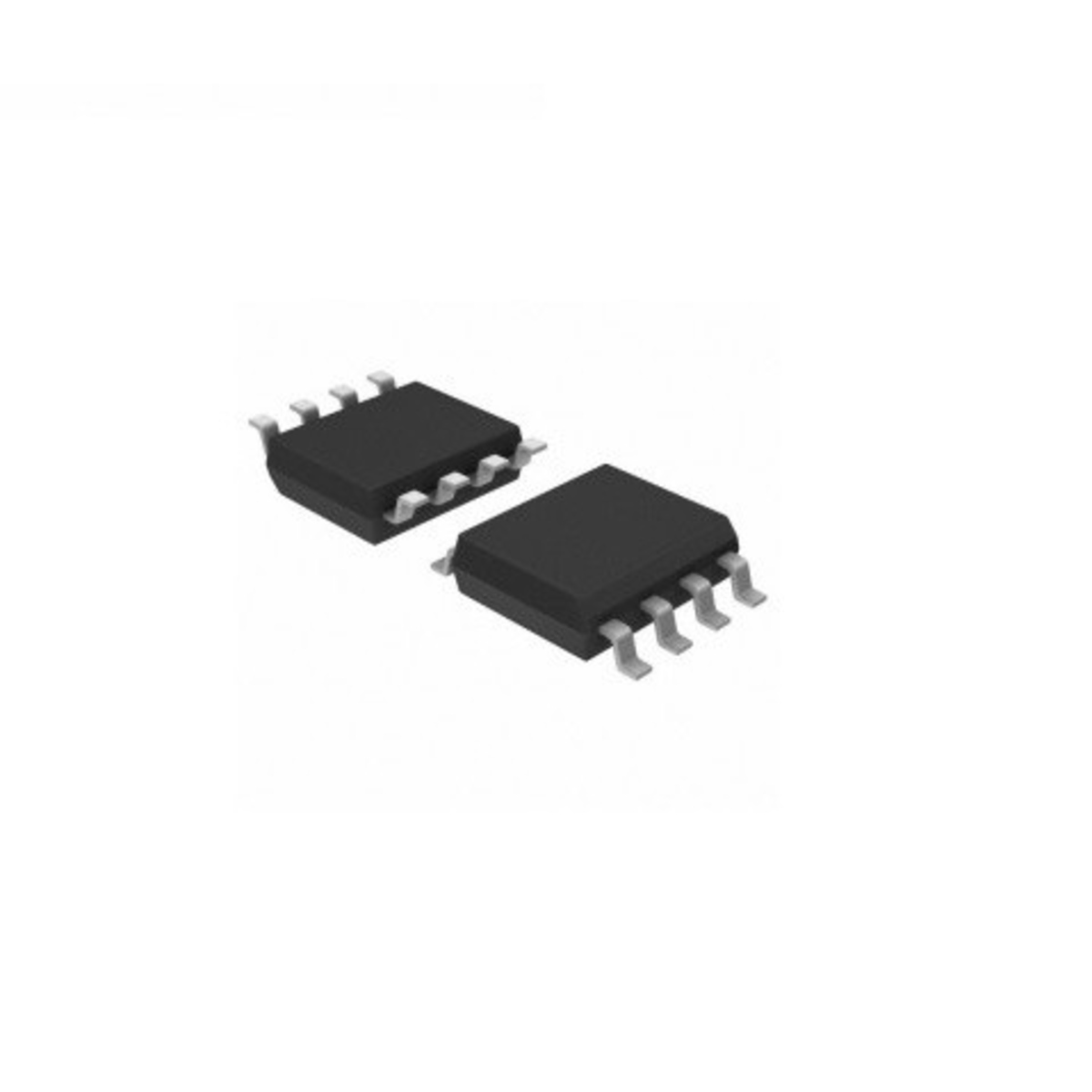

TL082 SOIC-8 Dual JFET Input Operational Amplifier IC (TL082)
The TL082 is a dual JFET input operational amplifier IC designed for high input impedance analog signal amplification, filtering, buffering, and waveform processing applications. It contains two independent operational amplifiers in a compact SOIC-8 surface mount package, making it suitable for instrumentation systems, audio circuits, sensor interfaces, and embedded analog electronics.
Key Features -
- Dual JFET input operational amplifier
- High input impedance performance
- Low input bias current operation
- SOIC-8 surface mount package
- Suitable for analog and audio signal processing applications
Specifications -
- IC type / Product type - Dual JFET Input Operational Amplifier IC
- Logic family / Component type - Linear Analog IC
- Package type - SOIC-8 SMD IC
- Supply voltage - Approx +/-5V to +/-18V DC
- Input voltage - Differential analog input
- Output voltage - Analog amplified output
- Current rating - Low power supply current operation
- Frequency / propagation delay - Approx 3MHz gain bandwidth product
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Dual operational amplifiers, high slew rate, low harmonic distortion, low input bias current, JFET input stage
Applications -
- Audio preamplifier circuits
- Active filter systems
- Signal conditioning applications
- Instrumentation systems
- Embedded analog electronics projects
Pinout Configuration -
- Pin 1 - Amplifier output
- Pin 2 - Inverting input
- Pin 3 - Non-inverting input
- Additional pins - Second amplifier input and output pins, positive supply pin, negative supply pin
