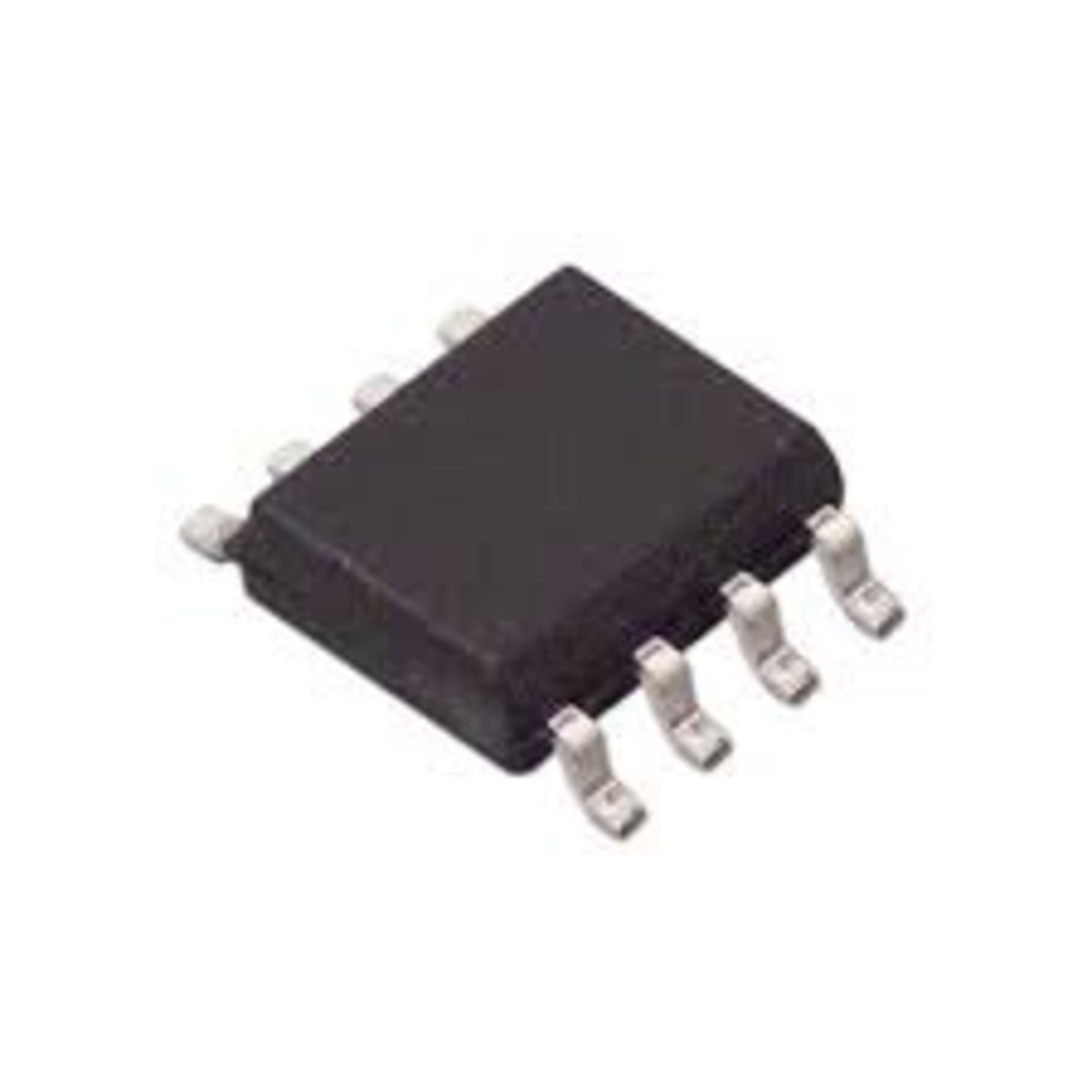

TL7705C SOIC-8 Supply Voltage Supervisor IC (Reset Controller IC, Voltage Monitor IC, Power-On Reset Supervisor)

The TL7705C is a precision supply voltage supervisor IC designed to provide reliable reset control and voltage monitoring for microprocessor and microcontroller systems. It monitors the supply voltage for undervoltage conditions and automatically generates reset signals during power-up, power-down, and voltage fault conditions, ensuring stable system startup and reliable operation. The device is housed in a compact SOIC-8 package, making it suitable for space-constrained electronic designs.

Key Features -

• Precision supply voltage monitoring

• Automatic power-on reset generation

• Undervoltage detection and protection

• Reset generation after voltage drop

• Temperature-compensated reference

• Adjustable reset pulse duration

• Complementary reset outputs

• SOIC-8 surface mount package

Specifications -

• Product type - Supply voltage supervisor IC

• Model - TL7705C

• Function - Voltage monitoring and reset control

• Threshold voltage - 4.55V typical

• Package type - SOIC-8

• Mounting type - Surface Mount Device (SMD)

• Supply voltage range - Wide operating range

• Output type - RESET and RESET outputs

• Timing control - External capacitor adjustable

• Additional features - Power-fail detection and reliable startup control

Applications -

• Microcontroller systems

• Microprocessor-based equipment

• Embedded electronics

• Industrial automation

• Data acquisition systems

• Communication equipment

• Power supply monitoring circuits
