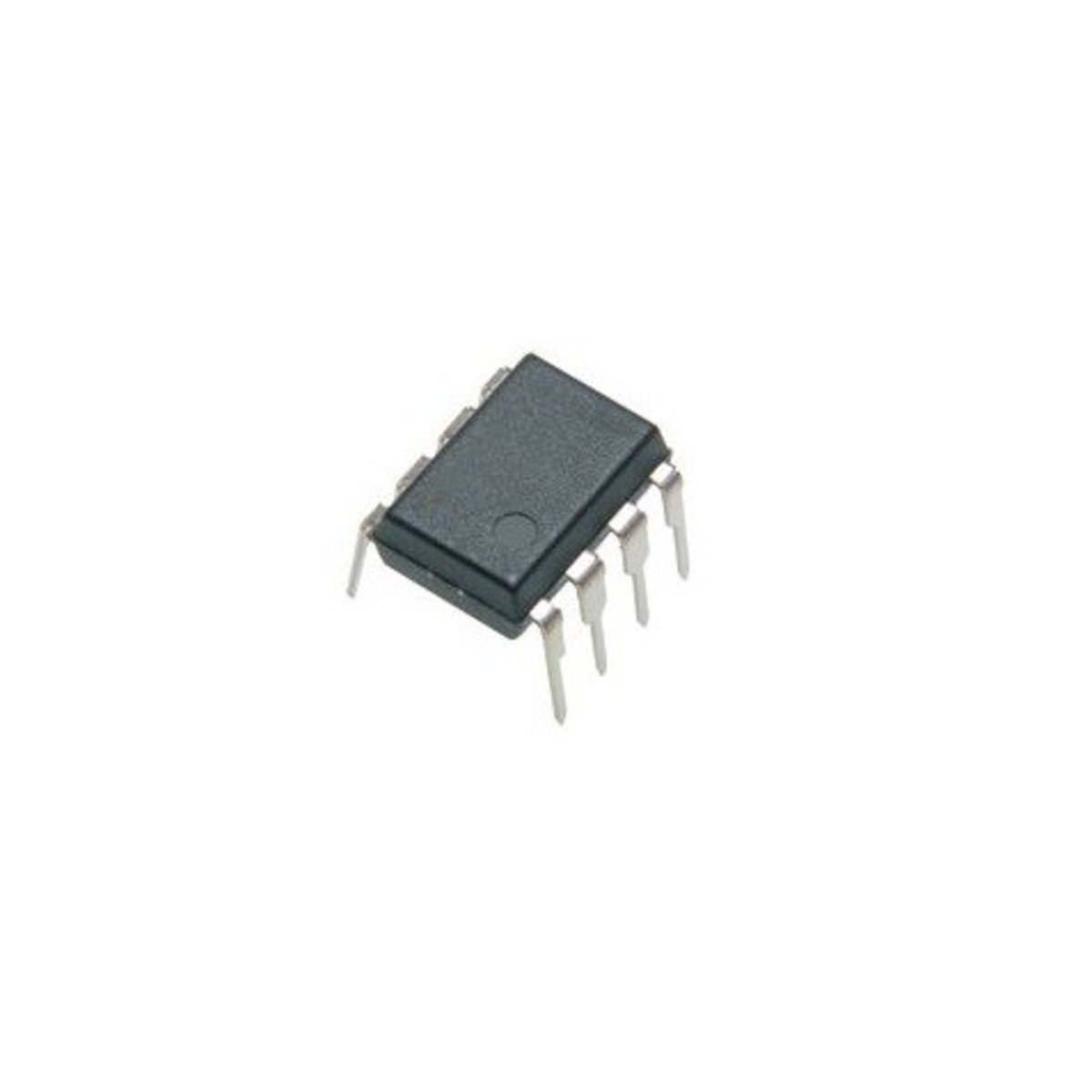

TLP250CH IGBT and MOSFET Gate Driver Optocoupler (DIP 8)

The TLP250CH is an optically isolated gate driver designed to drive the gates of insulated gate bipolar transistors (IGBTs) and power MOSFETs. It combines an infrared light emitting diode with an integrated photodetector and output driver, providing electrical isolation between control circuits and power switching stages. It is suitable for switching power supplies, motor drives, and inverter circuits.

Key Features -

• Optical isolation between control and power circuits

• Gate drive output for IGBTs and power MOSFETs

• Integrated output driver stage

• High speed switching capability

• Suitable for high side and low side gate drive circuits, subject to circuit design

• Helps protect low voltage control electronics from power stage transients

Specifications -

• Part Number: TLP250CH

• Component Type: Optically Isolated Gate Driver

• Manufacturer: Toshiba, subject to exact suffix verification

• Output Type: Gate driver output

• Typical Peak Output Current: Approximately 1.5A

• Recommended Supply Voltage: Refer to the exact manufacturer datasheet

• Package: 8 Pin DIP, verify the CH suffix and package details

• Isolation Rating and Switching Characteristics: Refer to the manufacturer datasheet

Applications -

• IGBT gate driving

• Power MOSFET switching circuits

• DC to AC inverters

• Motor control and drive systems

• Switching power supplies
