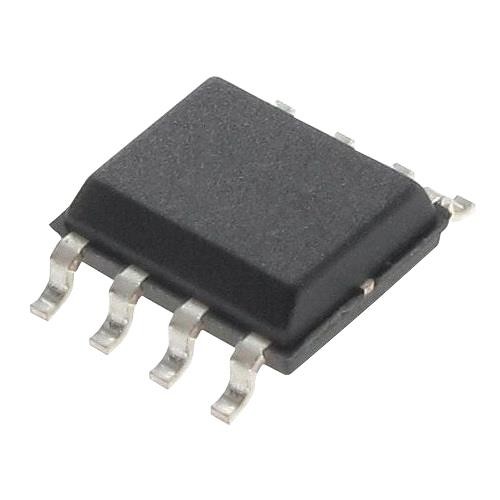

TLV5616CD Digital to Analog Converter IC (SOIC 8, 12 Bit, SPI Interface)

The TLV5616CD from Texas Instruments is a low power, 12 bit digital to analog converter (DAC) designed to convert digital data into a proportional analog voltage. It features a 4 wire serial interface compatible with SPI, QSPI, and Microwire, along with a buffered voltage output and programmable settling time. It is suitable for embedded systems, instrumentation, and precision analog control applications.

Key Features -

• 12 bit digital to analog conversion

• Single channel buffered voltage output

• 4 wire serial interface compatible with SPI, QSPI, and Microwire

• Programmable settling time for balancing speed and power consumption

• Integrated high impedance reference input buffer

• Output buffer with a gain of 2

• Low power consumption

• Power down mode for reduced power usage

• Monotonic output across the specified operating range

Specifications -

• Part Number: TLV5616CD

• Manufacturer: Texas Instruments

• IC Type: Digital to Analog Converter

• Resolution: 12 bit

• Number of Channels: 1

• Package: SOIC 8

• Supply Voltage: 2.7V to 5.5V

• Interface: 4 wire serial interface

• Output Type: Buffered voltage output

• Output Voltage Range: Up to twice the reference input voltage, subject to supply voltage limits

• Settling Time: 3 microseconds in fast mode and 9 microseconds in slow mode

• Reference Type: External voltage reference

• Architecture: Resistor string DAC

Applications -

• Embedded control systems

• Programmable analog voltage generation

• Industrial instrumentation

• Process control equipment

• Sensor signal conditioning

• Test and measurement instruments

• Analog setpoint control

• Microcontroller based data acquisition systems
