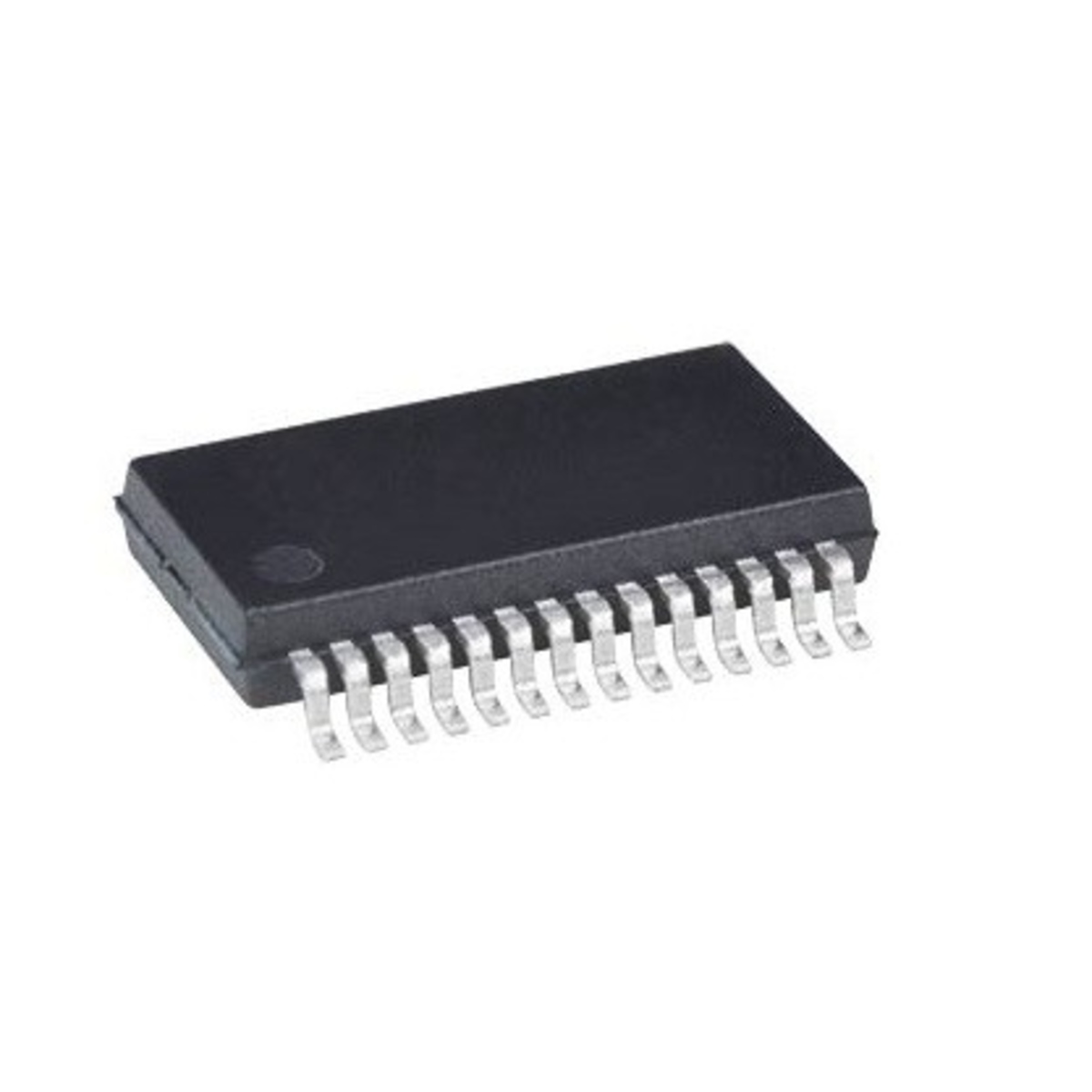

TM1640 LED Display Driver IC SSOP-28 (TM1640 LED Matrix Controller IC)

The TM1640 is a high-performance LED display driver IC designed for controlling LED matrices, 7-segment displays, and multi-digit LED display modules. Featuring integrated scanning circuitry, brightness control, and serial communication capability, the TM1640 simplifies display interfacing while reducing the number of microcontroller I/O pins required. Housed in an SSOP-28 package, it is widely used in digital displays, control panels, clocks, and embedded electronic systems.

Key Features -

• Dedicated LED display driver IC

• Supports LED matrix and 7-segment displays

• Integrated display scanning function

• Serial communication interface

• Adjustable display brightness control

• Reduces microcontroller I/O requirements

• Compact SSOP-28 package

Specifications -

• Product type - LED display driver IC

• Model - TM1640

• Package type - SSOP-28

• Mounting type - Surface Mount Device (SMD)

• Interface type - Serial communication

• Display support - LED matrix and 7-segment displays

• Brightness control - Multi-level brightness adjustment

• Operating voltage - Suitable for low-voltage digital systems

• Application type - Display control and multiplexing

• Additional features - Integrated scanning, low power consumption, and reliable display driving

Applications -

• LED matrix displays

• Digital clock displays

• Electronic scoreboards

• Control panel indicators

• Consumer electronic products

• Embedded display systems

• Industrial monitoring equipment
