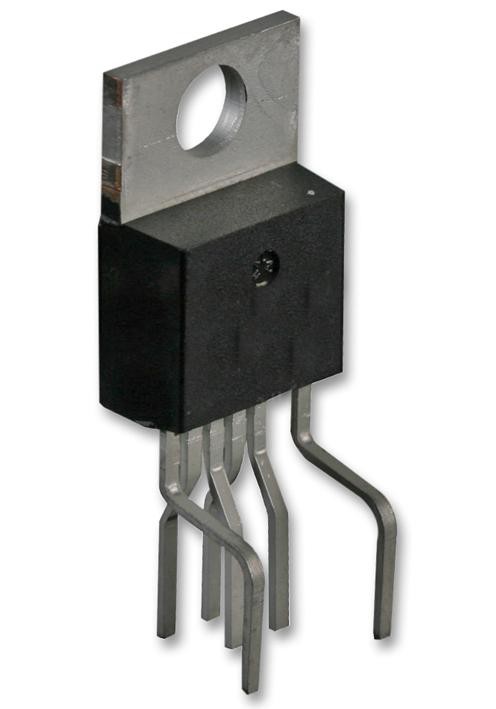

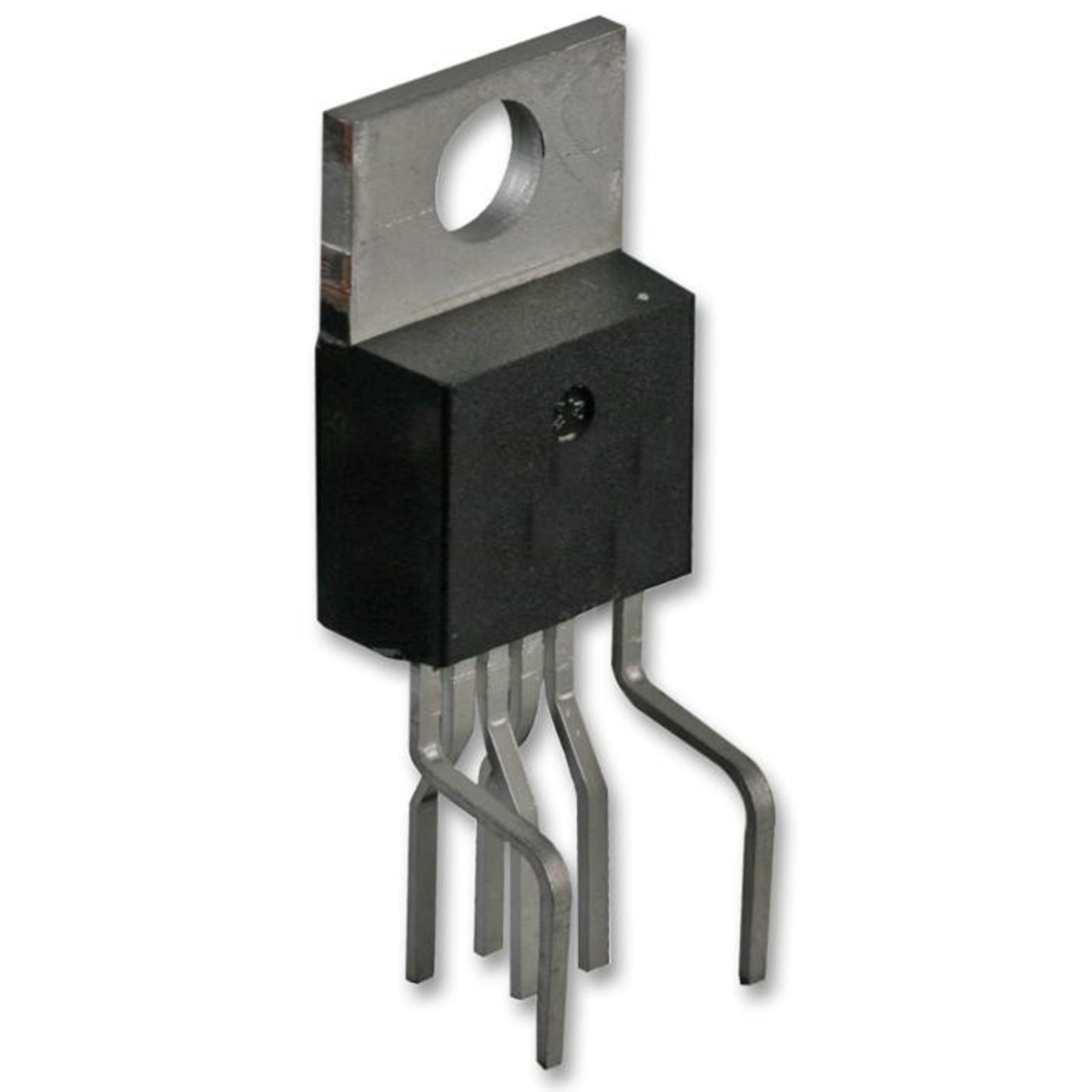

TOP242YN Integrated Off-Line Switch Mode Power Supply IC TO-220-6 (TOP242YN SMPS IC)

The TOP242YN is an integrated off-line switch mode power supply (SMPS) IC designed for efficient AC-DC power conversion in power adapters, battery chargers, industrial power supplies, consumer electronics, and embedded systems. It combines a high-voltage power MOSFET, PWM controller, startup circuitry, and protection features into a single device, reducing component count and simplifying power supply design.

Key Features -

• Integrated off-line SMPS controller

• Built-in high-voltage power MOSFET

• High-efficiency power conversion

• Low external component requirement

• Built-in startup circuitry

• Multiple protection features

• TO-220-6 package

Specifications -

• Product type - Switch Mode Power Supply IC

• Model - TOP242YN

• Function - Integrated Off-Line Power Supply Controller

• Package type - TO-220-6

• Mounting type - Through Hole Mount

• Switching technology - PWM Control

• Integrated power device - High-Voltage MOSFET

• Application - AC to DC Power Conversion

• Protection features - Overload, Overvoltage, and Thermal Protection

• Additional features - High efficiency and simplified design

Applications -

• AC-DC power supplies

• Power adapters

• Battery chargers

• Industrial control equipment

• Consumer electronics

• Embedded power systems

• LED power supplies
