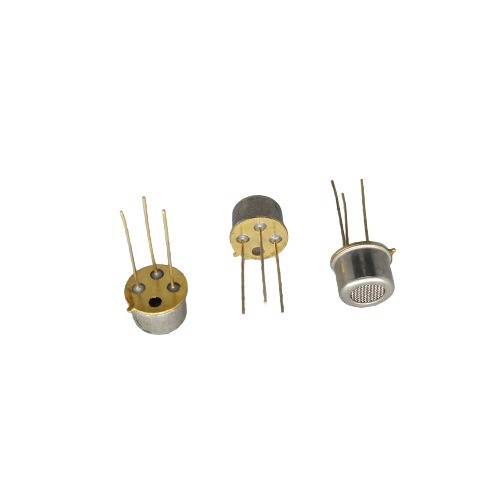

TP3C Alcohol Gas Sensor (TP-3C Alcohol Sensor)
The TP3C Alcohol Gas Sensor is a semiconductor based gas sensor designed for detecting alcohol and ethanol vapors in air. It operates using a metal oxide sensing element that changes resistance based on alcohol concentration, enabling accurate detection and monitoring. The sensor provides stable performance, fast response, and reliable operation for portable and industrial sensing applications.
The TP3C alcohol sensor is widely used in India for breath analyzers, gas detection systems, industrial electronics, and embedded systems. It is valued for its high sensitivity to alcohol, consistent output characteristics, and cost effective performance in safety and monitoring applications.
Key Features
- High Sensitivity Alcohol Detection: Optimized for ethanol vapor sensing
- Fast Response and Recovery: Quick detection capability
- Stable Output Signal: Reliable and consistent performance
- Long Operational Life: Durable sensing element
- Simple Interface: Easy integration with electronic circuits
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Semiconductor gas sensor
- Target Gas: Alcohol ethanol vapors
- Output Type: Analog resistance variation
- Operating Voltage: Typical low voltage operation
- Heater Current: Standard heater consumption
- Response Time: Fast response and recovery
- Mounting Type: Through hole sensor
- Applications: Breath analyzer alcohol detection safety systems industrial electronics embedded systems
Pinout Configuration Sensor Layout
- Heater pins for internal heating element
- Sensor output pins for resistance measurement
- VCC supply connection
- GND ground connection
