TQFP, SOP, QSOP, MSOP, TSSOP, 0805, 0603 SMD with DB9 Multi-Package Experiment Single-Sided 90 x 100mm PCB

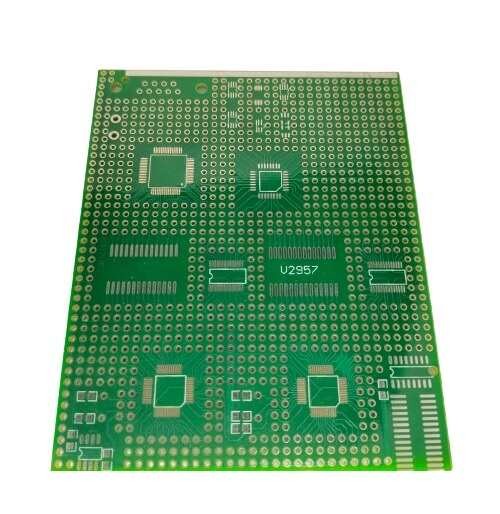

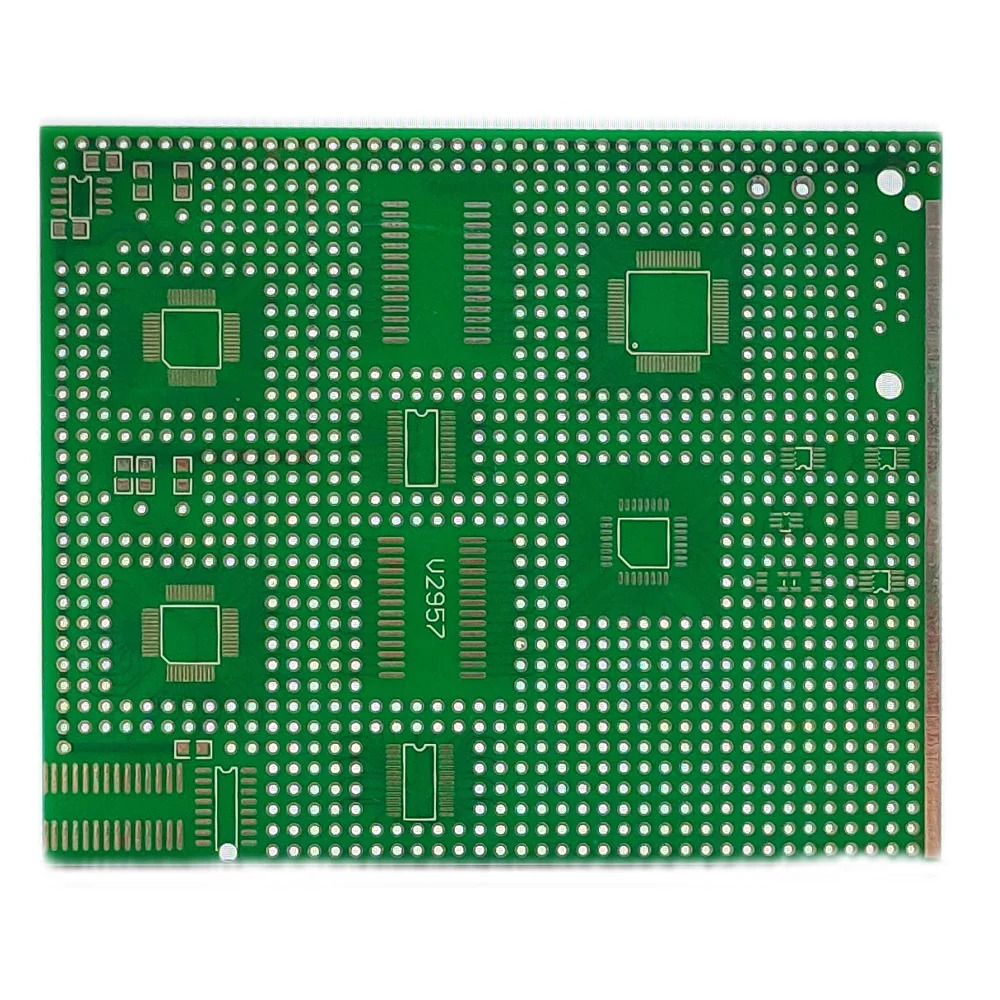

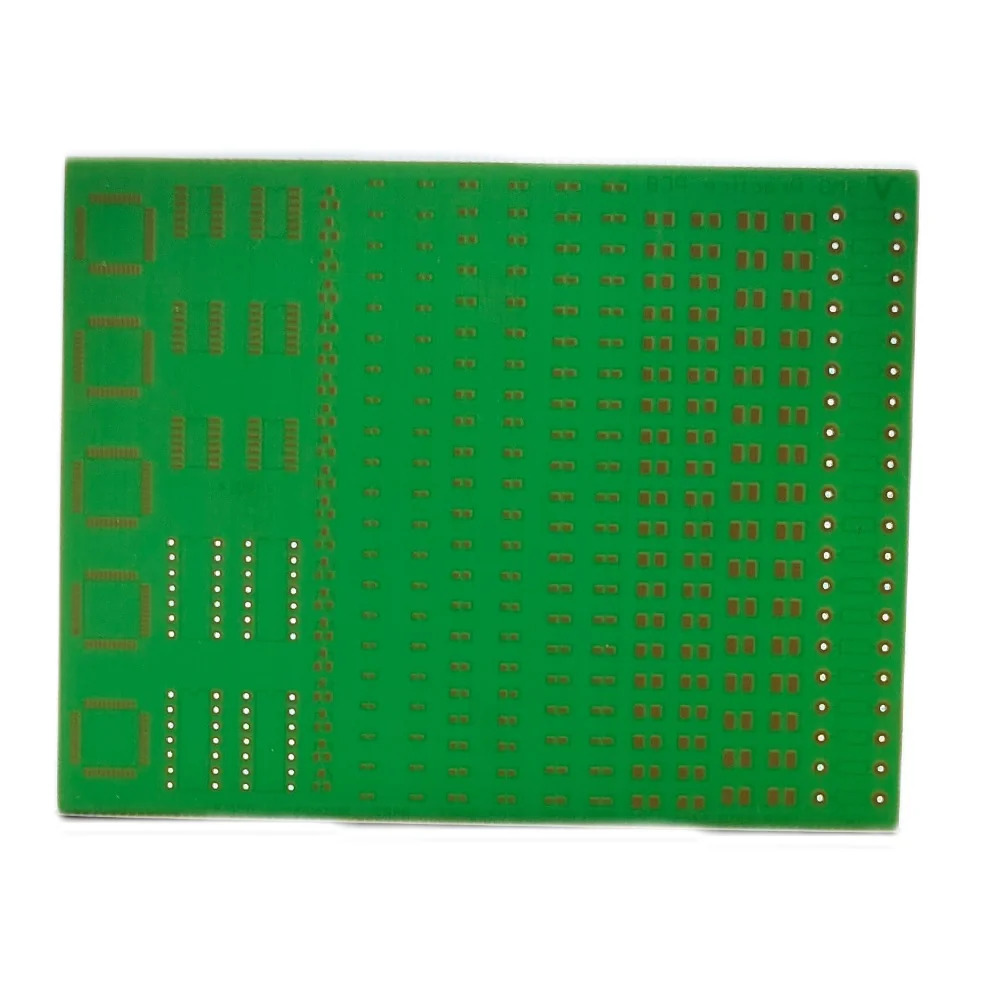

The TQFP, SOP, QSOP, MSOP, TSSOP, 0805, 0603 SMD with DB9 Multi-Package Experiment PCB is a 90 x 100mm single-sided development and soldering practice board designed for prototyping, testing, and learning Surface Mount Device (SMD) assembly. It supports a wide range of SMD IC packages including TQFP, SOP, QSOP, MSOP, TSSOP, along with 0805 and 0603 passive components. The integrated DB9 connector footprint makes it suitable for serial communication interface experiments and embedded system development.

Manufactured using high-quality FR4 glass epoxy, this multi-package experiment PCB provides a convenient platform for circuit development, soldering practice, electronic repairs, and educational laboratory projects.

Key Features -

• Supports multiple SMD IC packages on a single PCB

• Compatible with TQFP, SOP, QSOP, MSOP, and TSSOP packages

• Includes footprints for 0805 and 0603 SMD passive components

• Integrated DB9 connector footprint for serial interface projects

• Single-sided PCB design for easy soldering and inspection

• Standard 90 x 100mm board size

• High-quality FR4 glass epoxy construction

• Ideal for prototyping, testing, and SMD soldering practice

Specifications -

• Product Type: Multi-Package SMD Experiment PCB

• PCB Size: 90 x 100mm

• PCB Type: Single-Sided

• Supported IC Packages: TQFP, SOP, QSOP, MSOP, TSSOP

• Supported Passive Packages: 0805, 0603

• Connector Support: DB9 Connector Footprint

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: SMD Prototyping, Training, and Circuit Development

Applications -

• SMD soldering practice and training

• Embedded system development

• Serial communication interface projects

• Microcontroller circuit prototyping

• PCB assembly and testing

• Electronics laboratory experiments

• Educational and engineering projects

• DIY electronics development
