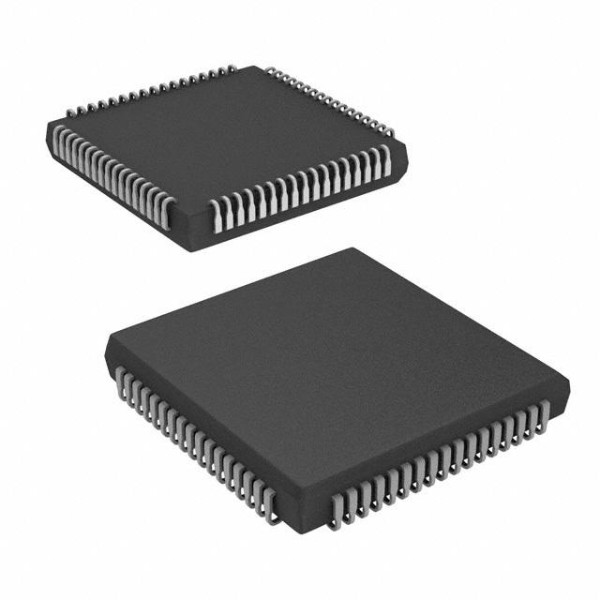

TS16C554DCJ Quad UART Serial Communication Controller IC (TS16C554DCJ DIP IC)
The TS16C554DCJ is a quad universal asynchronous receiver transmitter UART integrated circuit designed for high-performance serial communication applications. It provides four independent UART channels in a single package, making it ideal for systems requiring multiple serial ports. The DIP package allows easy through-hole mounting and convenient replacement in industrial and embedded systems.
In India, the TS16C554DCJ is widely used in industrial control systems, communication interfaces, and embedded applications. It is valued for its reliable data transmission, efficient buffering, and compatibility with standard UART protocols.
Key Features
- Quad UART Channels: Supports four independent serial communication channels.
- High Data Throughput: Enables efficient and reliable data transfer.
- FIFO Buffers: Integrated transmit and receive buffers improve performance.
- Standard UART Compatibility: Works with common serial communication protocols.
- Easy Integration: DIP package supports simple installation and servicing.
Specifications
- IC Type: Quad UART Serial Communication Controller
- Number of Channels: 4 UART Channels
- Data Interface: Asynchronous Serial Communication
- FIFO Support: Yes
- Operating Voltage: Suitable for standard logic levels
- Package Type: DIP Through-Hole
- Mounting Type: Through-Hole
- Application: Industrial systems embedded communication interfaces
Pinout Configuration (DIP IC Layout)
- Pin configuration includes multiple transmit receive and control lines for each UART channel
- Refer to datasheet or circuit diagram for exact pin details
