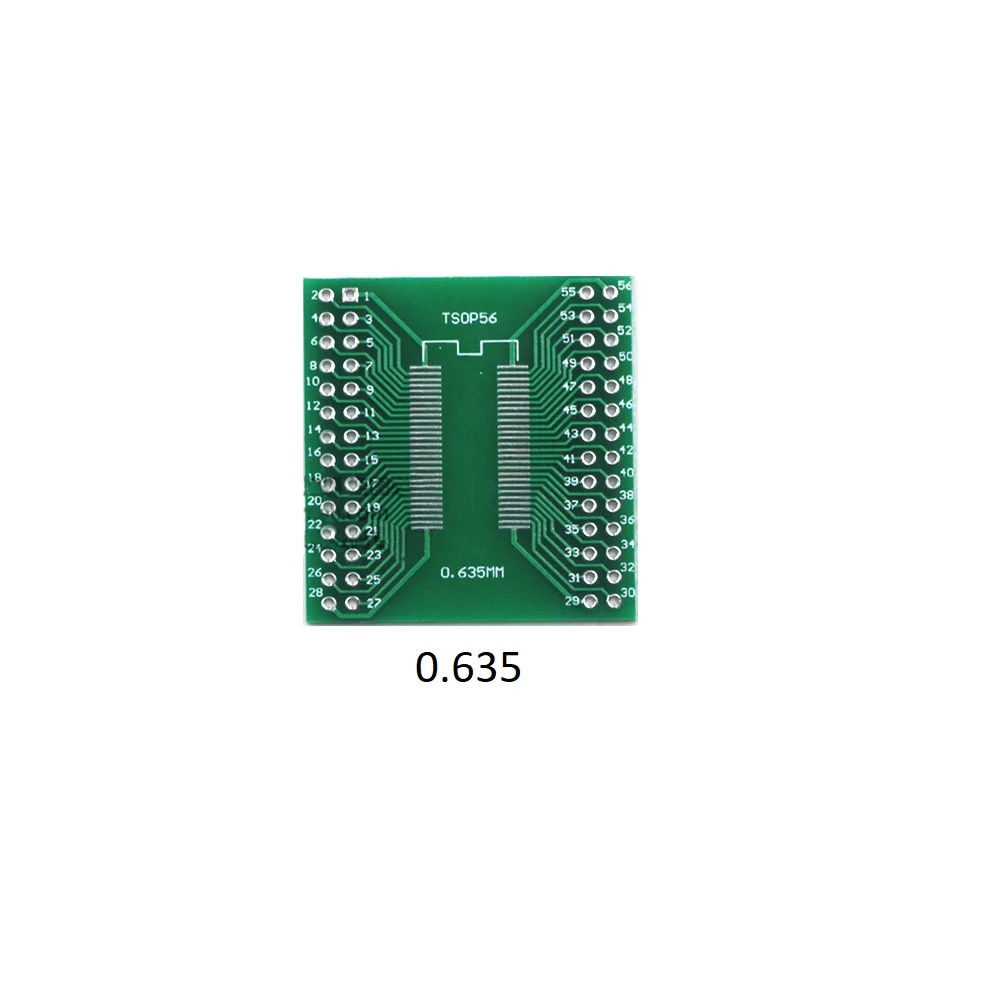

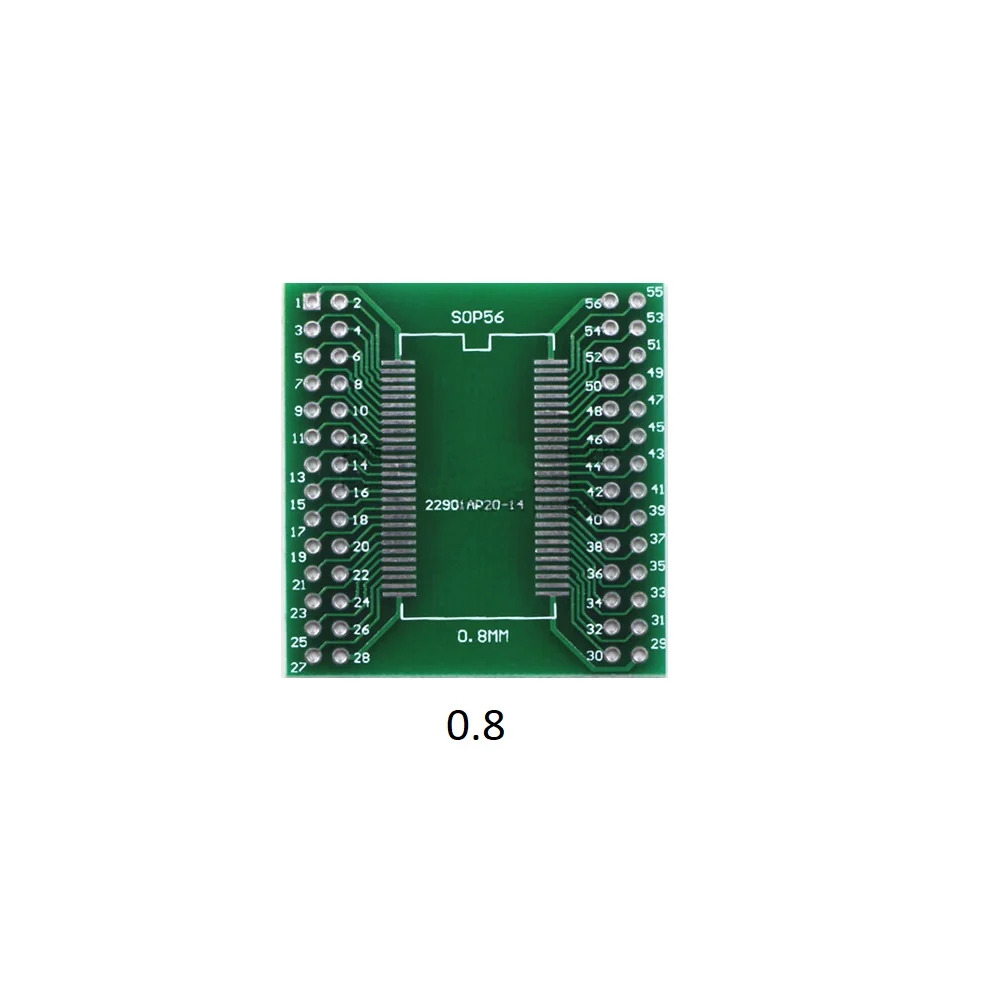

TSOPII TSSOP56 SOP56 to DIP56 Double-Sided 2.54mm Adapter PCB (0.635mm/0.8mm Pitch IC Adapter Board)

The TSOPII TSSOP56 SOP56 to DIP56 Double-Sided Adapter PCB is a versatile SMD to DIP breakout board designed to convert TSOPII-56, TSSOP-56, and SOP-56 surface-mount ICs into a standard DIP-56 footprint for convenient prototyping, testing, and breadboard applications. Its double-sided design supports both 0.635mm and 0.8mm pin pitch packages, making it compatible with a wide range of 56-pin SMD integrated circuits.

With a 2.54mm DIP pin spacing, this adapter board enables easy integration of SMD ICs into breadboards, development boards, socketed circuits, and prototype PCBs.

Key Features -

• Supports TSOPII-56, TSSOP-56, and SOP-56 IC packages

• Converts SMD ICs to standard DIP56 footprint

• Double-sided adapter PCB design

• Compatible with 0.635mm and 0.8mm pin pitch ICs

• Standard 2.54mm DIP spacing for breadboards and PCBs

• High-quality FR4 PCB with clearly marked pin layout

• Ideal for prototyping, testing, and development

Specifications -

• Product Type: SMD to DIP Adapter PCB

• Supported IC Packages: TSOPII-56, TSSOP-56, SOP-56

• Output Package: DIP56

• Supported Pitch: 0.635mm and 0.8mm

• DIP Pitch: 2.54mm

• PCB Type: Double-Sided Adapter Board

• Mounting Type: Surface Mount IC to Through-Hole Adapter

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Application: SMD IC Prototyping and Testing

Applications -

• SMD IC prototyping

• Breadboard circuit development

• Memory and controller IC testing

• Electronic repair and rework

• PCB design verification

• Educational electronics projects

• Embedded system development

• DIY electronic projects
