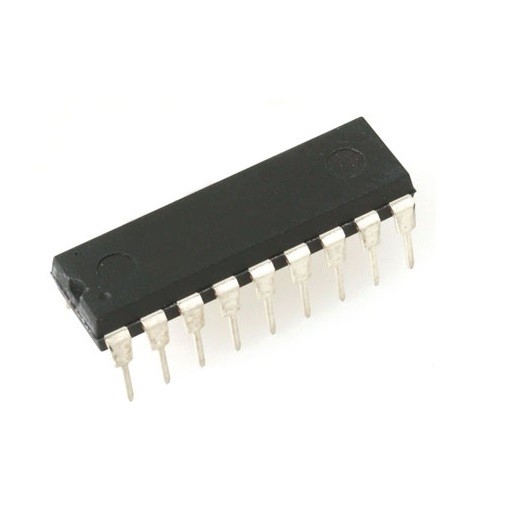

UDN2981 OG High Side Source Driver IC Original OG (UDN2981 DIP IC)
The UDN2981 OG High Side Source Driver IC Original OG is a high-voltage high-current driver designed to source current to loads from a positive supply. It is widely used to interface logic circuits with high-power devices such as relays, LED arrays, and display modules. This original OG quality IC ensures reliable performance, long life, and stable operation in demanding industrial and control applications. The DIP package allows easy through-hole mounting and dependable integration into circuit designs.
The UDN2981 OG IC is widely used in India for LED driving, relay control, display systems, and industrial automation. It is valued for its efficient current sourcing capability, logic compatibility, and robust performance in high-load applications.
Key Features
- High Side Driver: Sources current to loads from positive supply.
- 8 Channel Output: Multiple driver channels in a single IC.
- High Voltage Capability: Suitable for driving higher voltage loads.
- Original OG Quality: Ensures reliable and long-lasting performance.
- Logic Compatible Inputs: Easy interface with microcontrollers and logic ICs.
- Built-in Protection: Enhances safety in switching applications.
- DIP Package: Supports easy installation and servicing.
Specifications
- IC Type: High Side Source Driver IC
- Number of Channels: 8 Channels
- Output Type: Source Driver Output
- Output Current: Suitable for driving loads efficiently
- Input Compatibility: TTL CMOS compatible
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: LED driver relay driver display systems industrial automation control circuits
Pinout Configuration (DIP IC Layout)
- Input pins for each channel
- Output pins for load connection
- Supply voltage and ground pins
- Control pins for operation
- Refer to datasheet or circuit diagram for exact pin details
