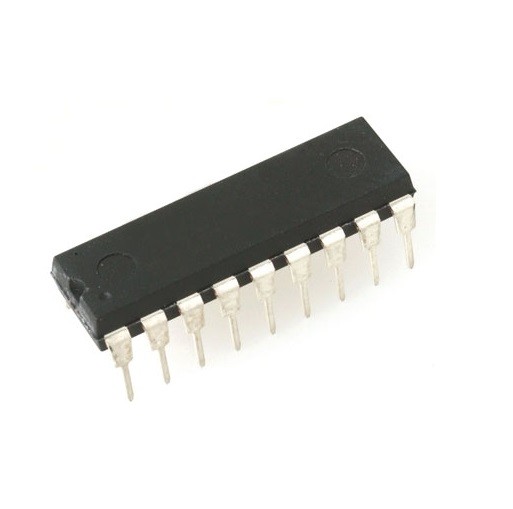

UDN2981CH High Side Source Driver IC (UDN2981CH DIP IC)
The UDN2981CH High Side Source Driver IC is a high-voltage high-current driver designed to source current to loads from a positive supply. It is commonly used to interface logic circuits with high-power devices such as relays, LED arrays, and displays. This IC contains multiple source driver channels with integrated protection features, making it ideal for industrial and control applications. The DIP package allows easy through-hole mounting and reliable use in circuit designs.
The UDN2981CH IC is widely used in India for LED driving, relay control, display systems, and industrial automation. It is valued for its ability to source current efficiently, compatibility with logic circuits, and stable performance in demanding environments.
Key Features
- High Side Driver: Sources current to loads from positive supply.
- Multiple Channels: Supports multiple output channels in one IC.
- High Voltage Capability: Suitable for driving higher voltage loads.
- Logic Compatible Inputs: Easy interface with microcontrollers and logic ICs.
- Built-in Protection: Ensures safe operation in switching applications.
- DIP Package: Easy installation and servicing.
Specifications
- IC Type: High Side Source Driver IC
- Number of Channels: 8 Channels
- Output Type: Source Driver Output
- Output Current: Suitable for driving loads efficiently
- Input Compatibility: TTL CMOS compatible
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: LED driver relay driver display systems industrial automation control circuits
Pinout Configuration (DIP IC Layout)
- Input pins for each channel
- Output pins for load connection
- Supply voltage and ground pins
- Control pins for operation
- Refer to datasheet or circuit diagram for exact pin details
