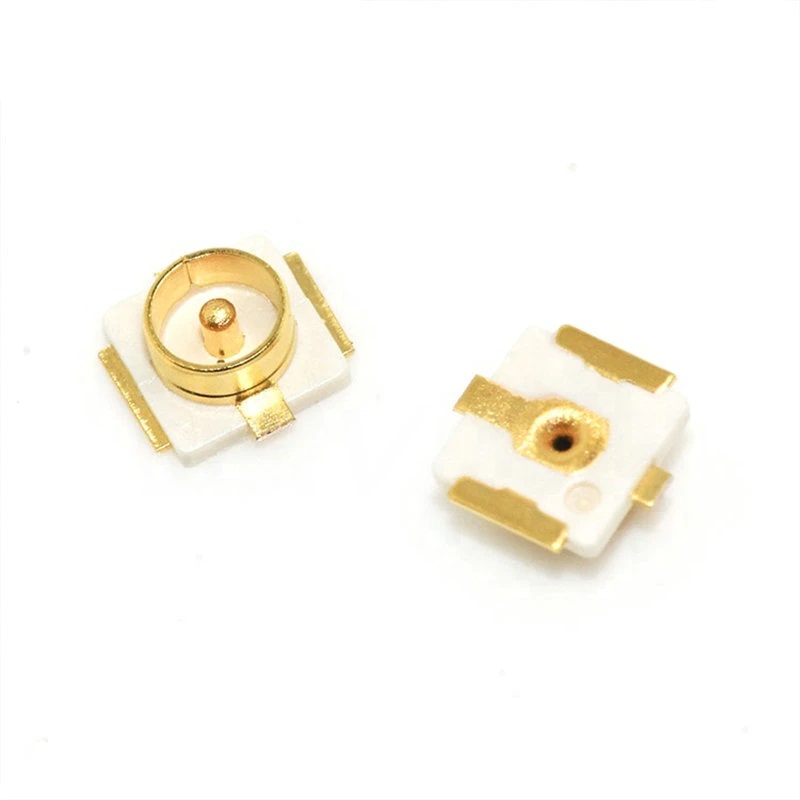

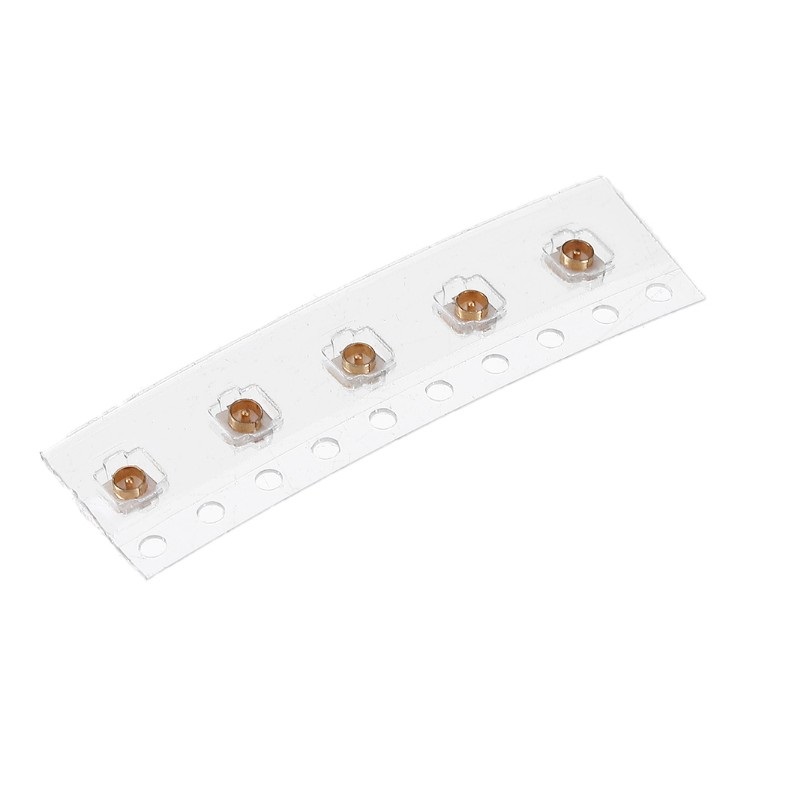

U.FL / IPEX / MHF1 Male RF Connector SMT PCB Mount (U.FL RF Connector)

The U.FL Male Connector is a compact surface mount RF connector designed for PCB integration in wireless communication devices, IoT modules, GPS receivers, WiFi systems, Bluetooth modules, and embedded RF applications. Compatible with U.FL, IPEX, and MHF1 standards, it provides reliable high-frequency signal transmission in space-constrained electronic designs.

Key Features -

• U.FL / IPEX / MHF1 compatible connector

• Surface mount SMT package

• Compact low-profile design

• Reliable high-frequency RF performance

• Suitable for miniature wireless devices

• Low insertion loss

• Secure snap-on connection

• Ideal for PCB-mounted RF applications

Specifications -

• Product type - RF Connector

• Connector type - U.FL / IPEX / MHF1 Male

• Mounting type - Surface Mount Technology (SMT)

• Package type - SMT PCB Mount

• Impedance - 50 Ohm

• Connector orientation - Straight

• Application - RF Signal Connection

• Frequency support - Suitable for RF and Microwave Applications

• Connector body material - Metal with Insulated Base

• Additional features - Compact Size, Low Profile Design, Reliable RF Performance

Applications -

• WiFi modules

• Bluetooth devices

• GPS receivers

• IoT communication modules

• Embedded RF electronics

• Wireless networking equipment

• RF development projects
