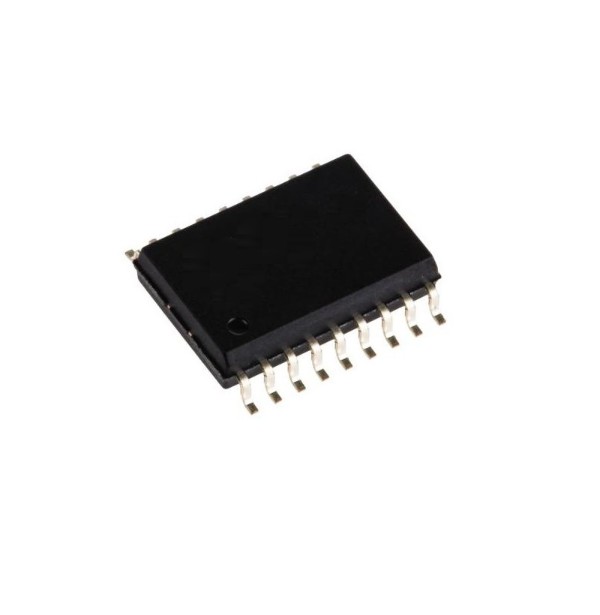

ULN2803 Original SOIC-18 Darlington Transistor Array IC (ULN2803)
₹ 33.04 (Inclusive of 18.00% GST)
Base Price: ₹ 28.00 | GST (18.00%): ₹ 5.04
In Stock
Secure payments powered by Razorpay




Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email
ULN2803 Original SOIC-18 Darlington Transistor Array IC (ULN2803)
The ULN2803 is an original high voltage and high current Darlington transistor array IC designed for driving relays, stepper motors, lamps, solenoids, and other inductive loads from TTL or CMOS logic circuits. It integrates eight Darlington transistor pairs with common emitter outputs in a compact SOIC-18 package.
Key Features -
- Original Darlington transistor array IC
- Eight high current driver channels
- TTL and CMOS logic compatible inputs
- SOIC-18 surface mount package
- Integrated flyback diode protection
Specifications -
- IC type / Product type - Darlington Transistor Array IC
- Logic family / Component type - Driver Interface IC
- Package type - SOIC-18 SMD IC
- Supply voltage - Supports external load voltages up to approx 50V
- Input voltage - TTL and CMOS compatible logic input levels
- Output voltage - Open collector driver outputs
- Current rating - Approx 500mA output current per channel
- Frequency / propagation delay - Suitable for switching and driver applications
- Operating temperature - Approx -40°C to +85°C
- Additional important specifications - Eight Darlington driver channels, integrated suppression diodes, high voltage output capability, inductive load driving support, low input current requirement
Applications -
- Relay driver circuits
- Stepper motor control systems
- Solenoid and actuator drivers
- LED and lamp driver applications
- Industrial automation equipment
Pinout Configuration -
- Pin 1 - Driver input pin
- Pin 2 - Driver input pin
- Pin 3 - Driver input pin
- Additional pins - Driver output pins, common diode connection pin, power and ground connections
