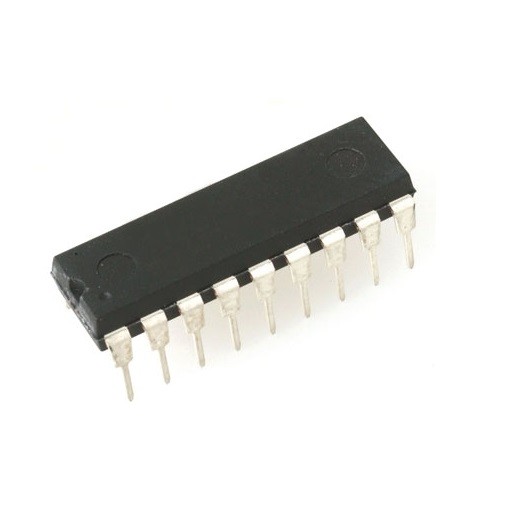

ULN2804 OG Darlington Transistor Array Driver IC Original OG (ULN2804 DIP IC)
The ULN2804 OG Darlington Transistor Array Driver IC Original OG is a high-voltage high-current driver IC designed to interface higher voltage logic signals with high-power loads. It contains eight Darlington transistor pairs with common emitters and integrated flyback diodes for protection against inductive loads. This original OG quality IC ensures reliable performance, long life, and consistent switching in demanding industrial applications.
The ULN2804 OG IC is widely used in India for driving relays, stepper motors, solenoids, lamps, and industrial loads. It is valued for its high current handling capability, compatibility with higher voltage input logic, and robust performance in automation and control systems.
Key Features
- 8 Channel Darlington Array: Eight high-gain transistor pairs in one IC.
- High Voltage Input Compatibility: Designed for higher voltage logic interface.
- High Current Capability: Suitable for driving relays motors solenoids and loads.
- Original OG Quality: Ensures reliable and long-lasting operation.
- Built-in Flyback Diodes: Protects against inductive voltage spikes.
- DIP Package: Supports easy installation and servicing.
Specifications
- IC Type: Darlington Transistor Array Driver IC
- Number of Channels: 8 Channels
- Output Current: High current sink capability per channel
- Input Compatibility: Suitable for higher voltage logic systems
- Output Voltage: Suitable for high voltage switching
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Relay driver stepper motor driver solenoid control lamp driver industrial automation
Pinout Configuration (DIP IC Layout)
- Input pins for each channel
- Output pins for load connections
- Common emitter ground pin
- Common diode suppression pin
- Refer to datasheet or circuit diagram for exact pin details
