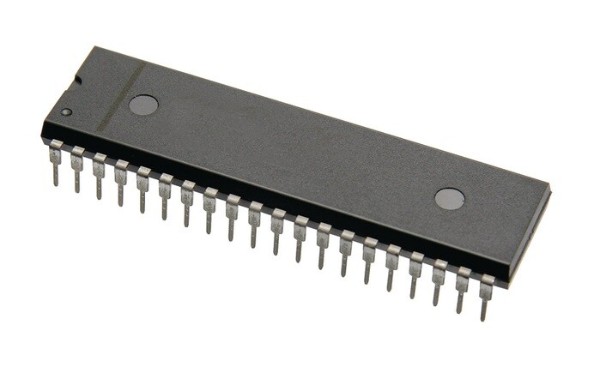

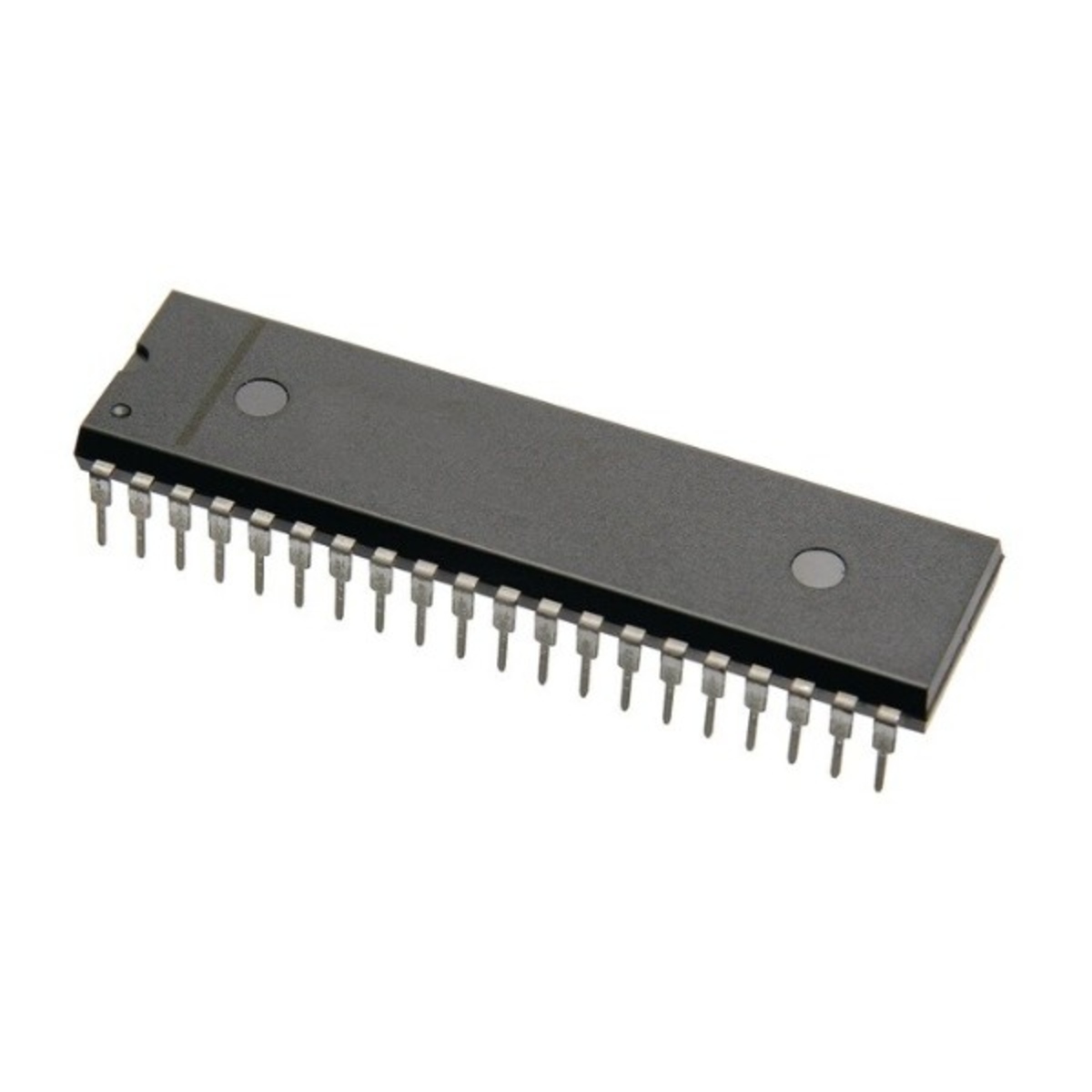

UM8250B Asynchronous Communication Interface IC DIP-40 (UM8250B IC)

The UM8250B is an asynchronous communication interface IC commonly used as a UART (Universal Asynchronous Receiver Transmitter) controller in computer systems, embedded devices, and serial communication applications. It converts parallel data from a processor into serial data for transmission and converts received serial data back into parallel format, enabling reliable communication between digital systems and peripheral devices.

Key Features -

• UART communication controller IC

• Asynchronous serial data transmission

• Parallel to serial data conversion

• Serial to parallel data conversion

• Full duplex communication support

• Compatible with microprocessor systems

• DIP-40 through hole package

• Reliable serial interface operation

Specifications -

• Product type - UART Interface IC

• Model - UM8250B

• Function - Asynchronous Communication Controller

• Communication type - Serial UART

• Data transfer mode - Full Duplex

• Package type - DIP-40

• Mounting type - Through Hole

• Interface type - Parallel to Serial Conversion

• Application - Serial Data Communication

Applications -

• Serial communication systems

• Computer interface circuits

• Embedded systems

• Industrial automation equipment

• Data acquisition systems

• Microprocessor-based designs

• Communication peripherals
