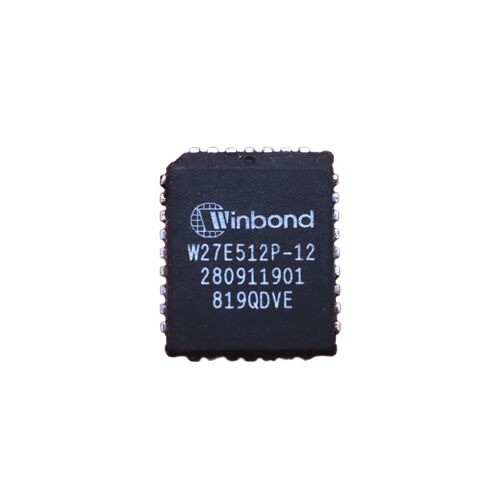

W27E512P Winbond Flash Memory IC PLCC32 (W27E512P PLCC-32 IC)
The W27E512P Winbond Flash Memory IC is a high-performance non-volatile memory device designed for storing firmware, program code, and system data in embedded and industrial applications. It offers 512K bit memory capacity with electrically erasable and programmable functionality, eliminating the need for UV erasing. The PLCC-32 package provides compact size and reliable socket mounting for professional circuit designs.
The W27E512P IC is widely used in India for embedded systems, industrial control boards, BIOS storage, and programmable devices. It is valued for its fast programming capability, high endurance, and reliable data retention.
Key Features
- 512K Bit Flash Memory: Provides non-volatile data storage.
- Electrically Erasable: No UV required for erase operations.
- Fast Programming: Supports quick write and erase cycles.
- High Endurance: Suitable for multiple program erase cycles.
- Reliable Data Retention: Ensures long-term storage stability.
- PLCC-32 Package: Compact design with secure socket mounting.
Specifications
- IC Type: Flash Memory IC
- Memory Capacity: 512K Bit
- Interface: Parallel Interface
- Erase Method: Electrical erase programmable
- Access Time: Fast read access
- Package Type: PLCC-32
- Mounting Type: Socket Mounting Surface Mount compatible
- Applications: BIOS storage embedded systems industrial electronics programmable devices firmware storage
Pinout Configuration (PLCC-32 Layout)
- Address input pins
- Data input output pins
- Chip enable output enable and write enable pins
- Supply voltage and ground pins
- Refer to datasheet or circuit diagram for exact pin details
