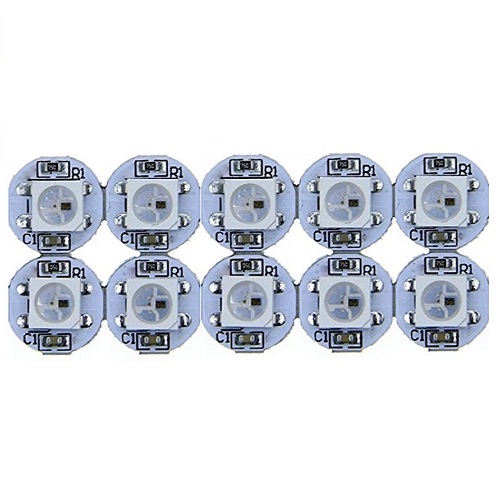

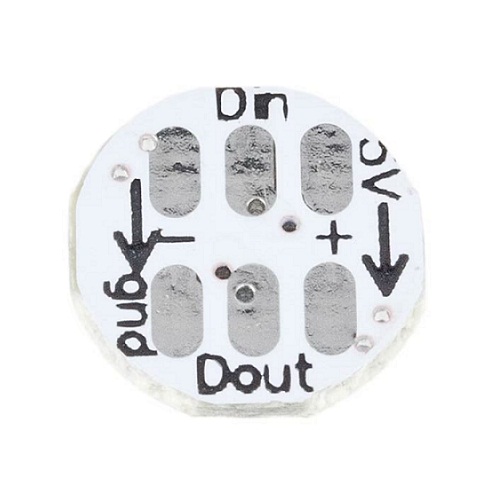

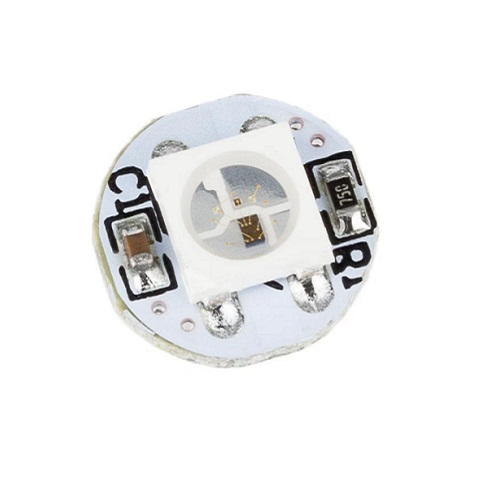

WS2812B RGB Addressable LED Module (5V Intelligent Individually Addressable RGB LED)

The WS2812B RGB Addressable LED Module is a compact intelligent LED module featuring an individually addressable RGB LED with an integrated driver IC. Operating from a 5V supply, the module enables full-color lighting effects using a single digital data line, making it ideal for decorative lighting, electronic displays, wearable devices, and microcontroller projects. With a 120° viewing angle, built-in power-on reset circuitry, and vibrant red, green, and blue LEDs, the WS2812B delivers smooth color transitions and dynamic lighting animations with minimal wiring.

Key Features -

• Individually addressable RGB LED module

• Operates from a 5V DC supply

• Integrated LED driver IC

• Single-wire digital control interface

• Full-color RGB output with 24-bit color control

• Wide 120° viewing angle

• Built-in electric reset circuit

• Built-in power-loss reset circuit

• Supports cascading multiple modules

• Easy interface with popular microcontrollers

Specifications -

• Product Type - Addressable RGB LED Module

• LED Type - WS2812B

• Supply Voltage - 5V DC

• Viewing Angle - 120°

• Red Wavelength - 620 to 630nm

• Red Luminous Intensity - 550 to 700mcd

• Green Wavelength - 515 to 530nm

• Green Luminous Intensity - 1100 to 1400mcd

• Blue Wavelength - 465 to 475nm

• Blue Luminous Intensity - 200 to 400mcd

• Reset Circuit - Built-in Electric Reset and Power-Loss Reset

• Control Interface - Single-Wire Digital

Applications -

• Decorative LED lighting

• Arduino and ESP32 projects

• LED matrix displays

• Digital signage

• Wearable electronics

• Smart lighting systems

• DIY electronics projects

• Interactive art installations

• Gaming and PC lighting

• Robotics and embedded systems
