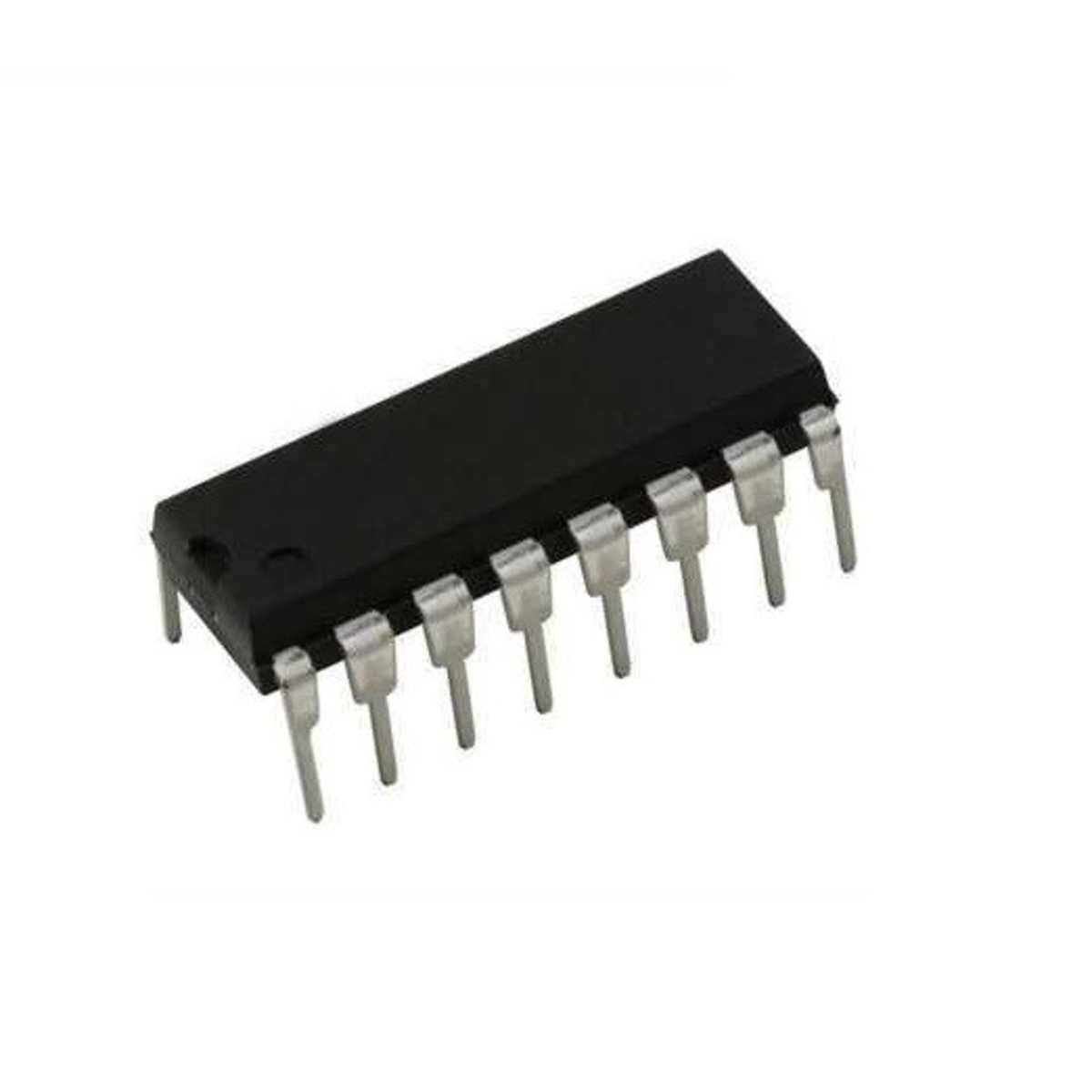

XR2206 CH Function Generator IC (DIP 16, Waveform Generator)

The XR2206 CH is a monolithic function generator IC designed to generate high quality sine, square, triangle, ramp, and pulse waveforms. It uses external timing components to control the output frequency and supports frequency modulation, amplitude modulation, and frequency shift keying applications. Its versatile waveform generation capabilities make it suitable for signal generators, test equipment, and electronic circuit development.

Key Features -

• Generates sine, square, triangle, ramp, and pulse waveforms

• Wide frequency generation range

• Frequency controlled using external resistor and capacitor

• Supports frequency modulation and amplitude modulation

• Frequency shift keying capability

• Adjustable waveform characteristics using external components

• Suitable for signal generation and testing circuits

Specifications -

• Part Number: XR2206 CH

• IC Type: Function Generator

• Package: DIP 16

• Waveforms: Sine, square, triangle, ramp, and pulse

• Frequency Range: Approximately 0.01 Hz to 1 MHz, depending on circuit configuration

• Frequency Control: External resistor and capacitor

• Modulation: Frequency modulation, amplitude modulation, and frequency shift keying

• Supply Voltage: Refer to the exact manufacturer datasheet

• Output amplitude and distortion: Depend on waveform, circuit configuration, and external components

Applications -

• Function generator circuits

• Audio signal generation

• Frequency sweep generators

• Electronic testing and troubleshooting

• Frequency modulation experiments

• Communication circuit development

• Educational electronics projects
