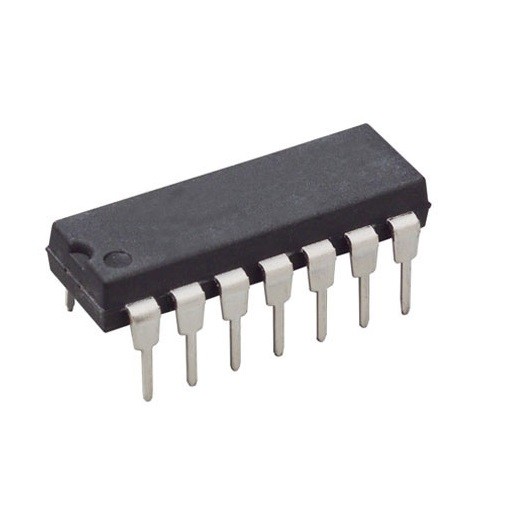

XR4741CN Quad Operational Amplifier IC (DIP 14)

The XR4741CN is a quad operational amplifier IC containing four independent general purpose amplifier sections in a single package. It is suitable for analog signal amplification, active filtering, signal conditioning, instrumentation and various industrial electronic circuits.

Key Features -

• Quad operational amplifier

• Four independent amplifier channels

• General purpose analog operation

• High voltage gain

• Suitable for signal amplification

• Supports active filter configurations

• Suitable for signal conditioning circuits

• Useful for instrumentation applications

• Suitable for legacy equipment repair and replacement

• DIP 14 through hole package

Specifications -

• Part Number: XR4741CN

• Component Type: Operational Amplifier

• Number of Amplifiers: 4

• Input Type: Bipolar

• Output Type: Analog

• Package Type: DIP 14

• Number of Pins: 14

• Mounting Type: Through Hole

Applications -

• Analog signal amplification

• Active filter circuits

• Signal conditioning

• Audio circuits

• Instrumentation

• Measurement equipment

• Industrial control circuits

• Analog computing circuits

• Legacy equipment repair

• General purpose analog electronics
