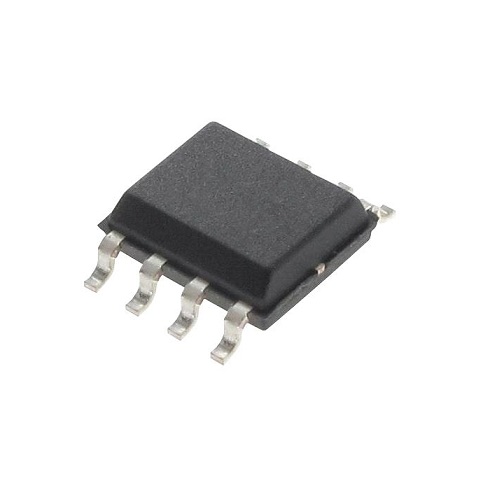

XTR115UA/2K5 4-20mA Current Loop Transmitter Signal Conditioner 7.5V to 36V SOIC-8 (Precision Industrial Signal Conditioner IC)

The XTR115UA/2K5 is a precision 4-20mA current-loop transmitter / signal conditioner IC designed for industrial sensor and process-control applications. It converts low-level input signals into a standard 4-20mA current-loop output, providing reliable signal transmission over long cable distances. Its compact SOIC-8 SMD package makes it suitable for transmitters, sensor interfaces, and industrial instrumentation.

Key Features -

• Precision 4-20mA current-loop transmitter

• Designed for industrial signal conditioning applications

• Supply / loop voltage range from 7.5V to 36V

• Suitable for two-wire current-loop systems

• Integrated precision voltage reference

• Low quiescent current for loop-powered applications

• Compact SOIC-8 surface mount package

• Suitable for industrial temperature environments

Specifications -

• Product type - Current Loop Transmitter / Signal Conditioner IC

• Part number - XTR115UA/2K5

• Signal type - 4-20mA Current Loop

• Supply / loop voltage - 7.5V to 36V

• Output type - Current

• Voltage reference - 2.5V

• Package type - SOIC-8

• Number of pins - 8

• Mounting type - Surface Mount (SMD/SMT)

• Minimum operating temperature - -55°C

• Maximum operating temperature - +125°C

• Packaging - Tape & Reel

• Application type - Sensor Signal Conditioning and Industrial Current Loop Transmission

Applications -

• 4-20mA sensor transmitters

• Industrial process control

• Pressure transmitters

• Temperature transmitters

• Bridge sensor interfaces

• PLC and industrial automation systems

• Remote sensor monitoring

• Data acquisition equipment

• Industrial instrumentation
