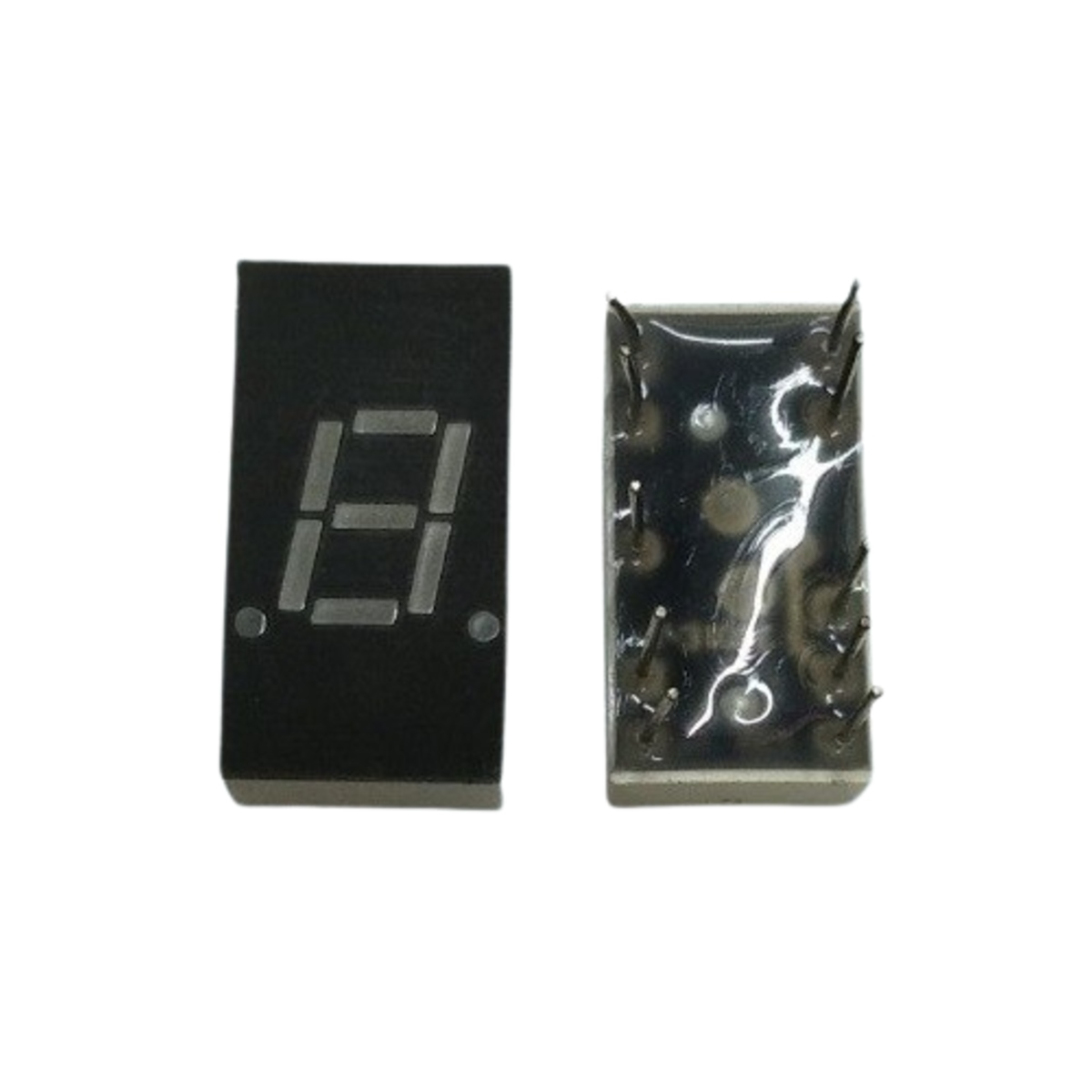

Foryard FYS-3013AS-11 0.3 Inch Red LED Display (Common Cathode, Single Digit 7-Segment)

The Foryard FYS-3013AS-11 is a 0.3 inch red single-digit LED display designed for numeric indication in electronic circuits and embedded systems. It uses a common cathode configuration, where the LED segment cathodes share a common connection. The display is suitable for digital counters, measurement instruments, microcontroller projects, and electronic control panels.

Key Features -

• 0.3 inch character height

• Red LED display

• Common cathode configuration

• Single-digit 7-segment display

• Individual segment control for numeric representation

• Compact design for electronic circuits

• Suitable for microcontroller-based display systems

• Requires appropriate current-limiting resistors or a compatible LED driver

Specifications -

• Part Number: FYS-3013AS-11

• Manufacturer: Foryard

• Category: LED Displays

• Display Type: Single-digit 7-segment LED display

• Character Height: 0.3 inch

• Display Colour: Red

• LED Configuration: Common cathode

• Display Technology: Light Emitting Diode (LED)

• Segment Configuration: Seven segments

• Decimal Point: Confirm availability from the manufacturer's datasheet

• Operating Voltage: Depends on LED forward voltage and the drive circuit

• Drive Method: Direct segment drive or compatible display driver

• Package Type: Refer to the manufacturer's datasheet for confirmation

• Electrical Connection: Individual segment terminals and common cathode connection

Applications -

• Digital counters and timers

• Arduino and microcontroller projects

• Digital measurement instruments

• Electronic control panels

• Clock and numeric display circuits

• Industrial instrumentation

• Electronic status indicators

• Educational electronics projects

• Embedded system interfaces
