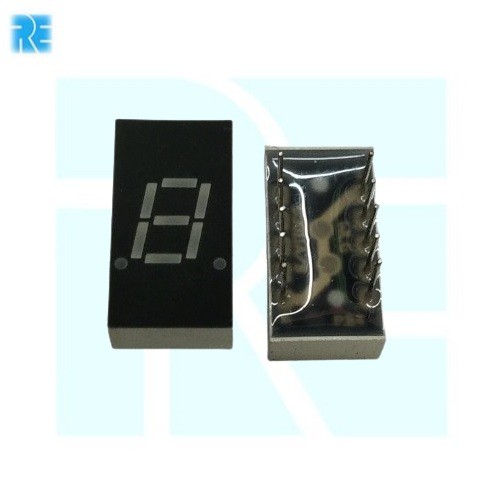

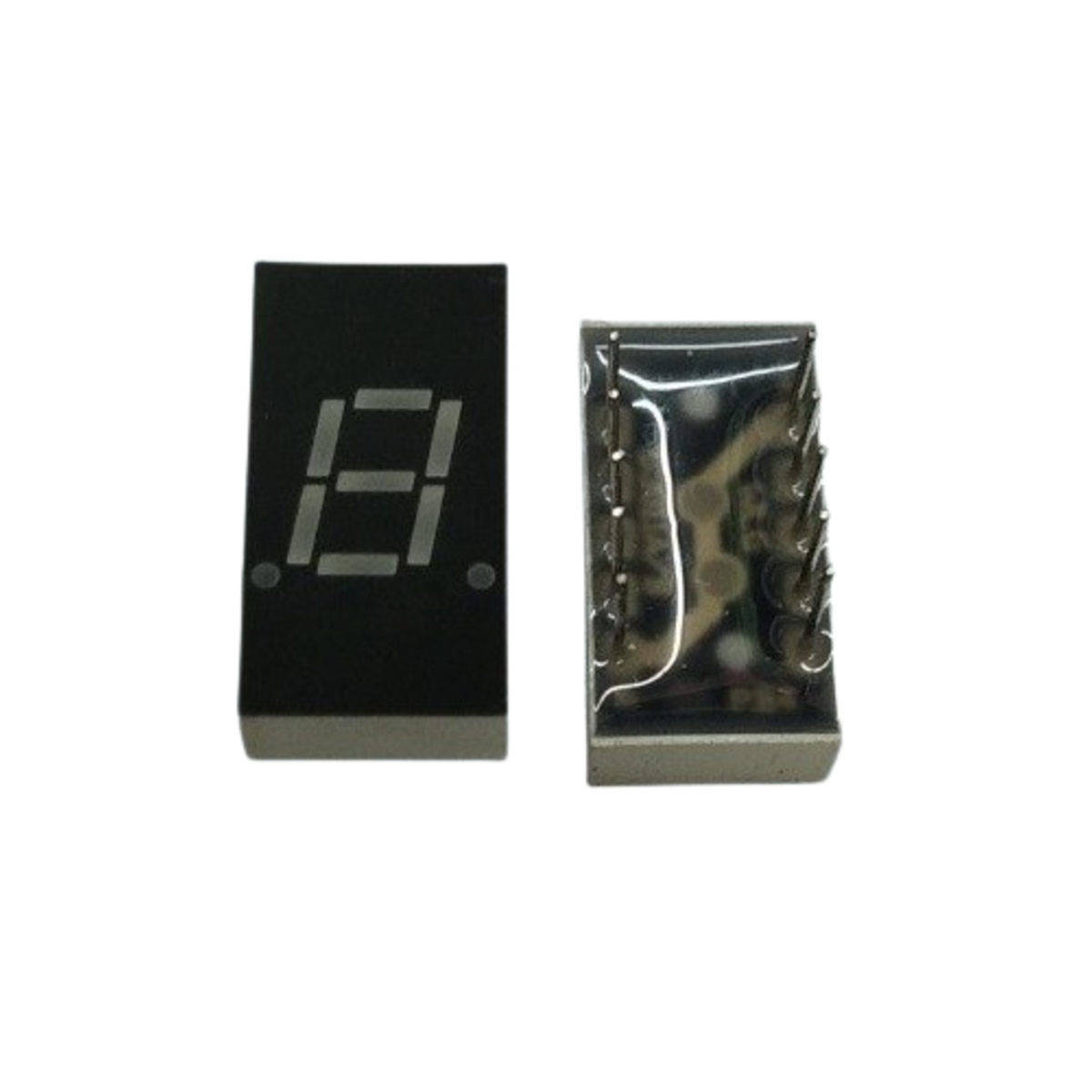

Foryard FYS-3011AS11 0.3 Inch Red LED Display (Common Cathode, Dual Decimal Point)

The Foryard FYS-3011AS11 is a 0.3 inch red LED display designed for numeric indication in electronic circuits and embedded systems. It features a common cathode configuration and dual decimal point indicators for displaying numeric values in measurement instruments, counters, timers, and microcontroller-based applications. Its compact design makes it suitable for electronic control panels and educational projects.

Key Features -

• 0.3 inch character height

• Red LED display

• Common cathode configuration

• Dual decimal point indicators

• Seven-segment numeric display

• Individual segment control for numeric representation

• Compact design for electronic equipment

• Suitable for microcontroller-based display circuits

• Requires appropriate current-limiting resistors or a compatible LED driver

Specifications -

• Part Number: FYS-3011AS11

• Manufacturer: Foryard

• Category: LED Displays

• Display Type: Numeric LED display

• Character Height: 0.3 inch

• Display Colour: Red

• LED Configuration: Common cathode

• Segment Configuration: Seven-segment display

• Decimal Point: Dual decimal point indicators

• Display Technology: Light Emitting Diode (LED)

• Operating Voltage: Depends on LED forward voltage and the drive circuit

• Drive Method: Direct segment drive or compatible LED driver

• Package Type: Refer to the manufacturer's datasheet for confirmation

• Electrical Connection: Individual segment terminals and common cathode connection

Applications -

• Digital counters and timers

• Digital voltmeters and measurement instruments

• Electronic control panels

• Arduino and microcontroller projects

• Numeric display circuits

• Industrial instrumentation

• Electronic monitoring systems

• Embedded system interfaces

• Educational electronics projects
