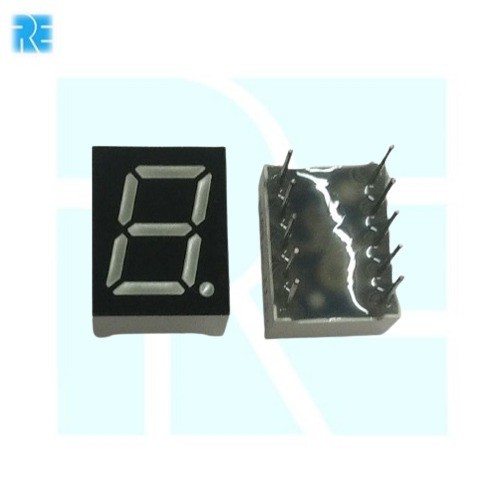

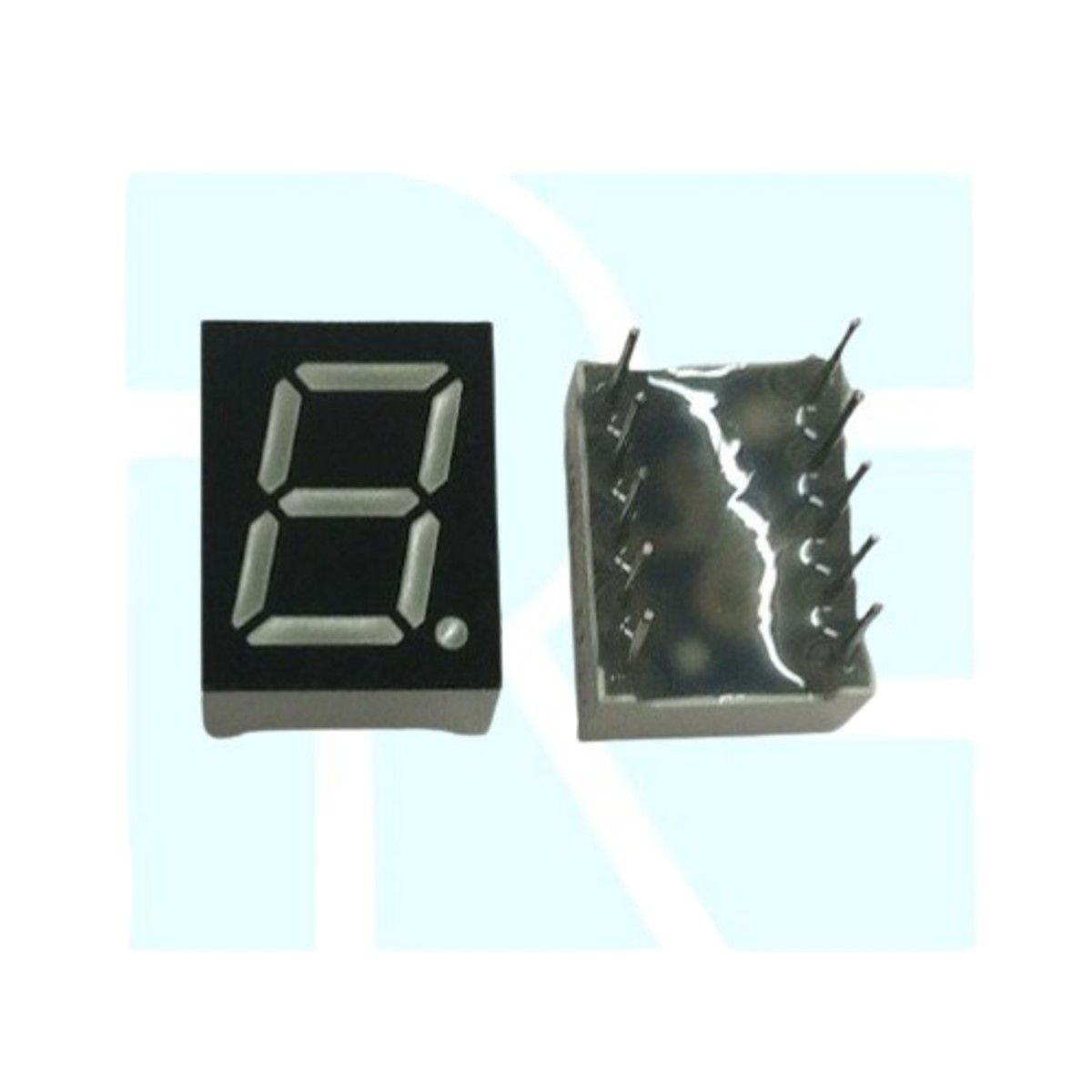

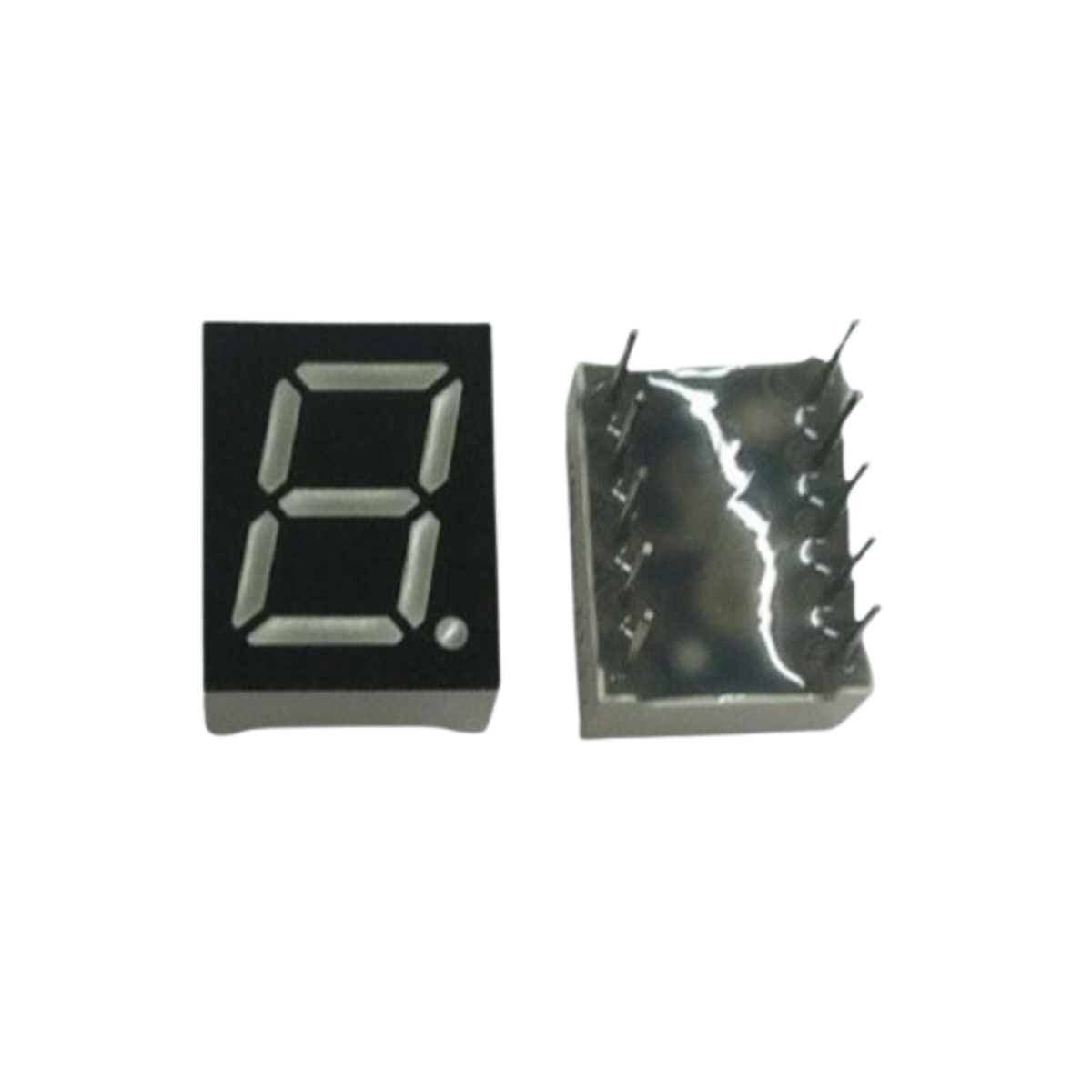

0.39 Inch Red 7 Segment LED Display Common Anode FYS-3911BS-11 Single Digit Through Hole

The FYS-3911BS-11 is a 0.39 Inch single digit 7 segment LED display with a common anode configuration and red LED illumination. It is designed for displaying numeric information in electronic circuits, measuring instruments, counters, timers, clocks, and embedded systems. The compact through hole package provides easy PCB mounting and reliable operation in a wide range of display applications.

Key Features -

• 0.39 Inch single digit 7 segment LED display

• Common anode configuration

• Bright red LED segments

• High visibility numeric display

• Through hole PCB mounting

• Compact and lightweight design

• Suitable for microcontroller interfacing

• Long operating life

Specifications -

• Product type - 7 Segment LED Display

• Model - FYS-3911BS-11

• Brand - Foryard

• Display size - 0.39 Inch

• Display type - Single Digit

• LED color - Red

• Configuration - Common Anode

• Segment count - 7 Segments with Decimal Point

• Mounting type - Through Hole

• Package type - DIP

• Application - Numeric Display Indication

Interfaces -

• Segment A - LED Segment Control

• Segment B - LED Segment Control

• Segment C - LED Segment Control

• Segment D - LED Segment Control

• Segment E - LED Segment Control

• Segment F - LED Segment Control

• Segment G - LED Segment Control

• DP - Decimal Point Control

• COM - Common Anode Connection

Applications -

• Digital counters

• Digital clocks and timers

• Panel meters

• Frequency counters

• Embedded electronics projects

• Industrial control systems

• Instrumentation displays
