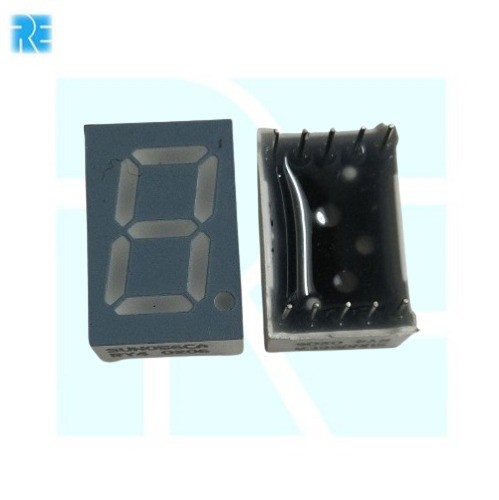

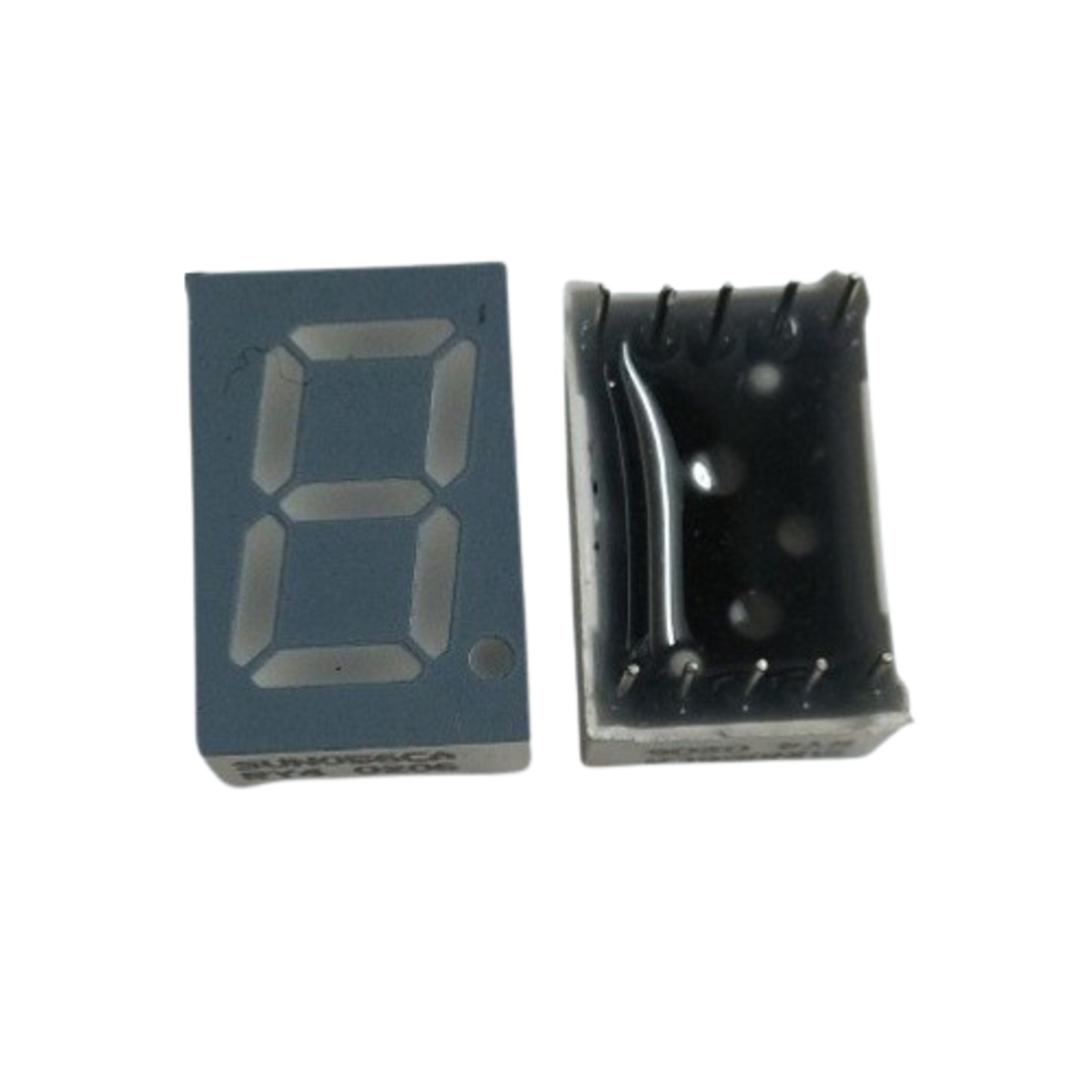

SUN SUN056CA 0.56 Inch Red 7-Segment LED Display (Common Anode, Single Digit)

The SUN SUN056CA is a 0.56 inch red LED display designed for numeric indication in electronic circuits, embedded systems, and digital instrumentation. It features a common anode configuration, in which the anodes of the LED segments share a common positive connection. The display is suitable for digital counters, measurement instruments, control panels, and microcontroller-based projects.

Key Features -

• 0.56 inch character height

• Red LED illumination

• Common anode configuration

• Seven-segment numeric display

• Individual segment control for numeric representation

• Suitable for digital display circuits

• Compatible with appropriate LED driver circuits

• Requires current-limiting resistors for safe operation

• Suitable for electronic instrumentation and embedded applications

Specifications -

• Part Number: SUN056CA

• Manufacturer: SUN

• Category: 7-Segment LED Displays

• Display Type: Numeric LED display

• Character Height: 0.56 inch

• Display Colour: Red

• LED Configuration: Common anode

• Segment Configuration: Seven segments

• Display Technology: Light Emitting Diode (LED)

• Operating Voltage: Depends on LED forward voltage and the drive circuit

• Drive Method: Direct segment drive or compatible LED driver

• Mounting Type: Refer to the manufacturer's datasheet for confirmation

• Package Type: Refer to the manufacturer's datasheet for confirmation

• Electrical Connection: Individual segment terminals and common anode connection

Applications -

• Digital counters and timers

• Digital voltmeters and measurement instruments

• Arduino and microcontroller projects

• Electronic control panels

• Industrial instrumentation

• Numeric status indicators

• Clock and timer circuits

• Embedded system interfaces

• Educational electronics projects
