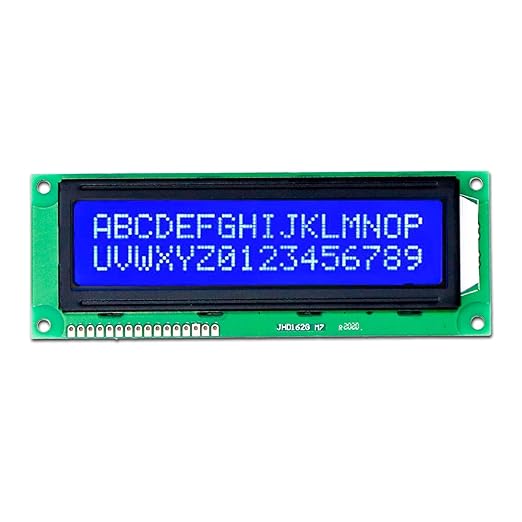

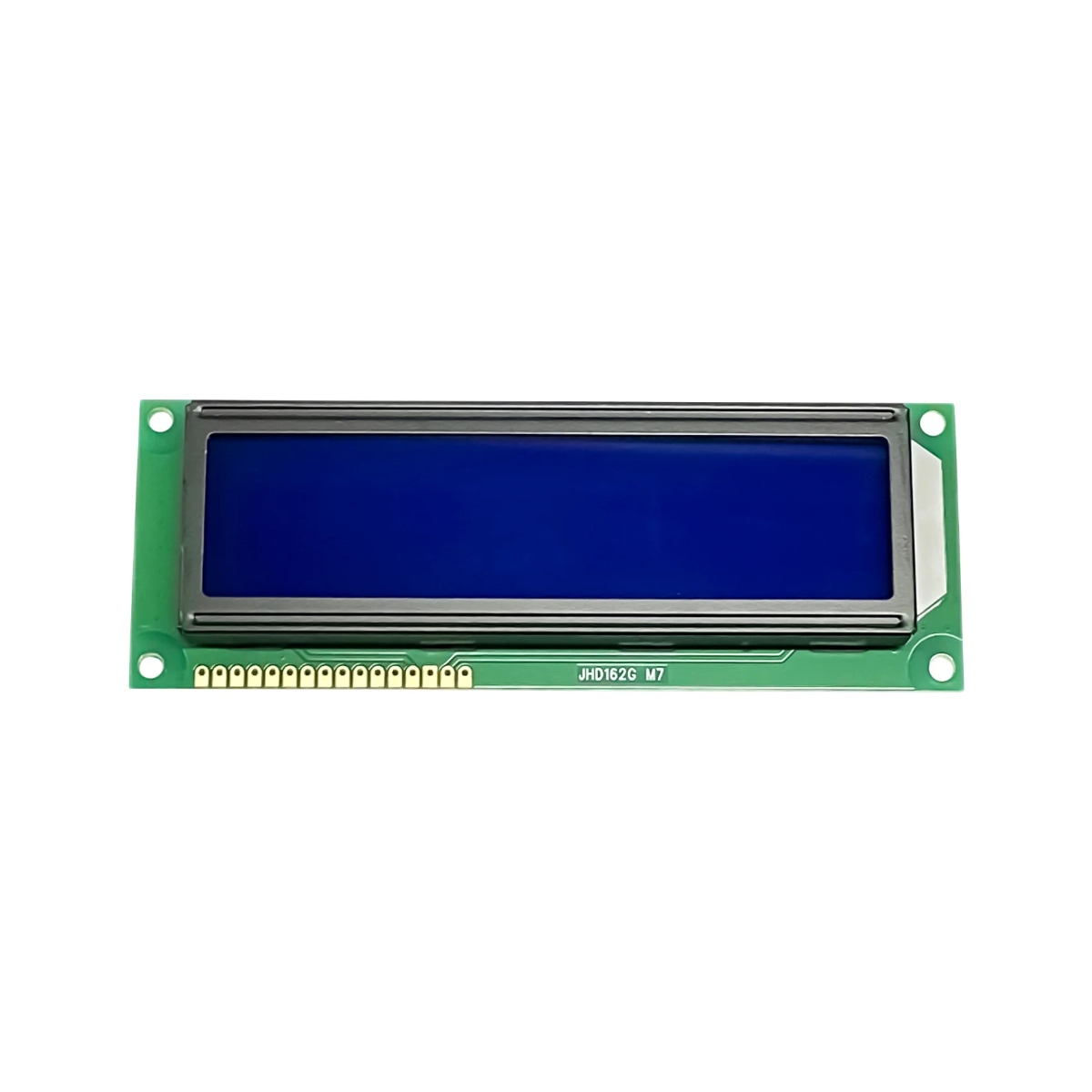

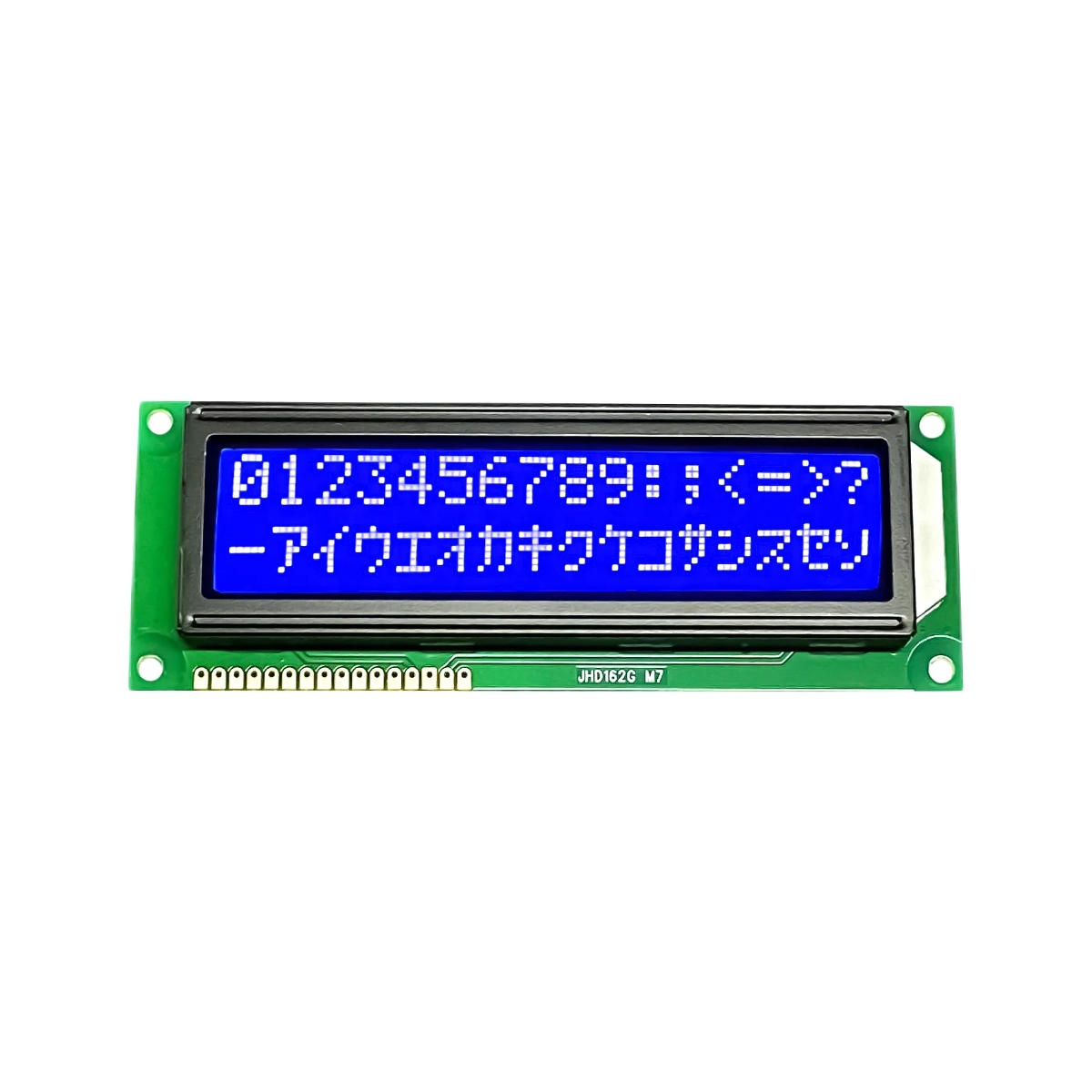

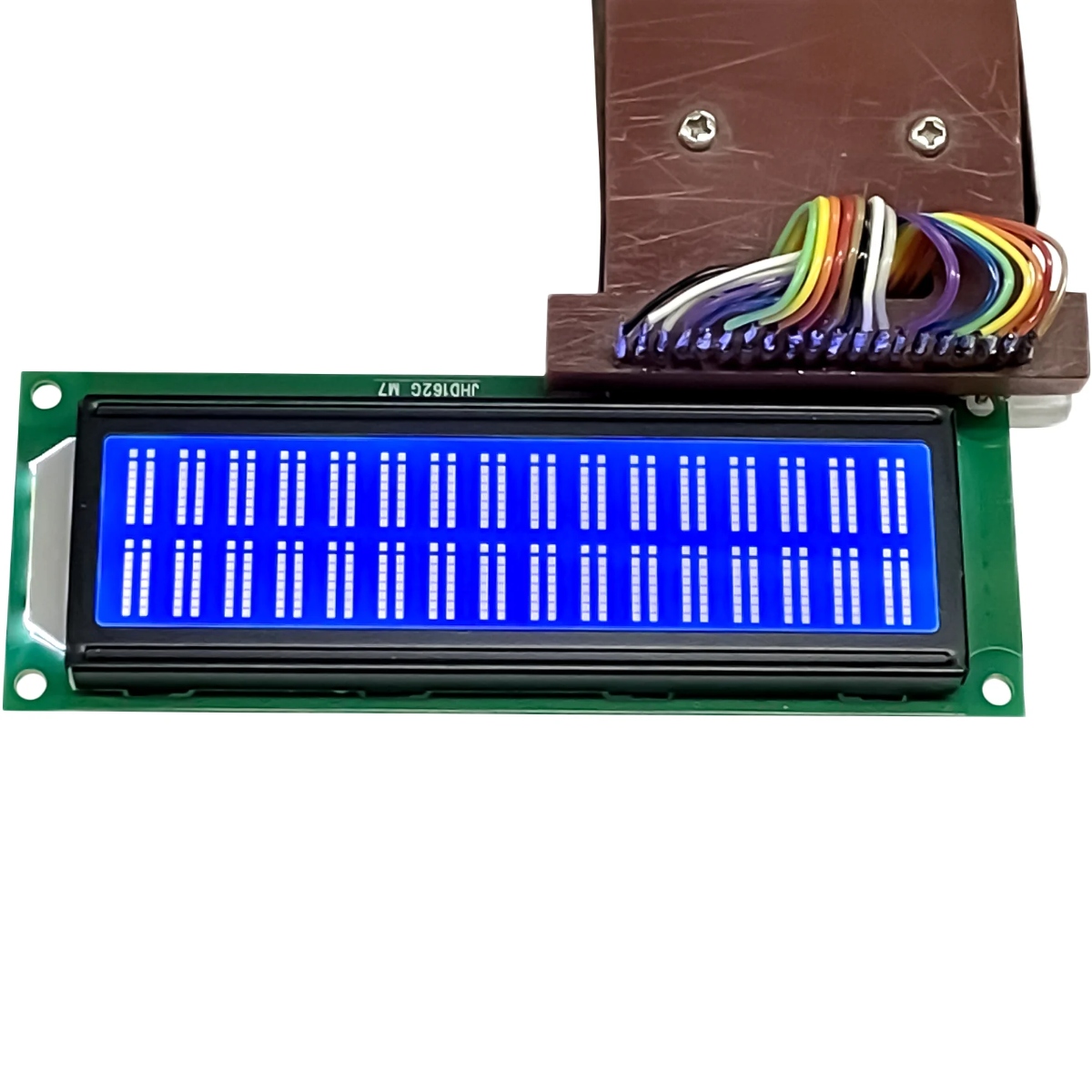

Original JHD 16x2 Jumbo Blue Character LCD Display (5V, HD44780 Compatible)

The Original JHD 16x2 Jumbo Blue LCD Display is a high contrast alphanumeric display module designed for embedded systems, microcontroller projects, and electronic equipment requiring clear text output. It displays 16 characters per line across two rows, providing a total capacity of 32 characters. Its larger character presentation helps improve readability in applications where displayed information needs to be easily visible.

The module features white characters on a blue background with an integrated LED backlight. It supports 4 bit and 8 bit parallel communication modes through an HD44780 compatible controller, enabling integration with supported platforms such as Arduino, AVR, PIC, and STM32.

Key Features -

• 16 character by 2 line jumbo character display

• Total display capacity of 32 characters

• Larger character presentation for improved readability

• White characters on a blue background

• Integrated LED backlight

• HD44780 compatible controller

• Supports 4 bit and 8 bit parallel communication

• Can typically be controlled using 6 digital signal lines in 4 bit mode

• Compatible with supported Arduino, AVR, PIC, and STM32 platforms

• Suitable for embedded systems and electronic instruments

Specifications -

• Product Type: Jumbo Character LCD Display Module

• Brand: JHD

• Model Type: Original JHD LCD

• Display Format: 16x2 Characters

• Total Character Capacity: 32 Characters

• Display Background Colour: Blue

• Character Colour: White

• Backlight Type: LED

• Input Voltage: 5V DC

• Supply Current: 1.5 mA, as specified for the supplied module

• Controller: HD44780 Compatible

• Interface Type: Parallel

• Communication Modes: 4 Bit and 8 Bit

• Board Dimensions: 23 x 44 mm

• Display Dimensions: 100 x 24 mm

• Weight: 66 g

Applications -

• Electronic equipment

• Medical equipment interfaces

• Smart home control systems

• Fax machines and printer interfaces

• Laser printer control panels

• Industrial test equipment

• Networking equipment

• Embedded system status displays

• Microcontroller development projects
