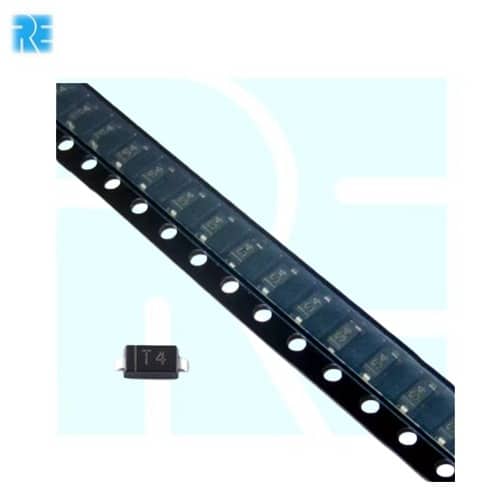

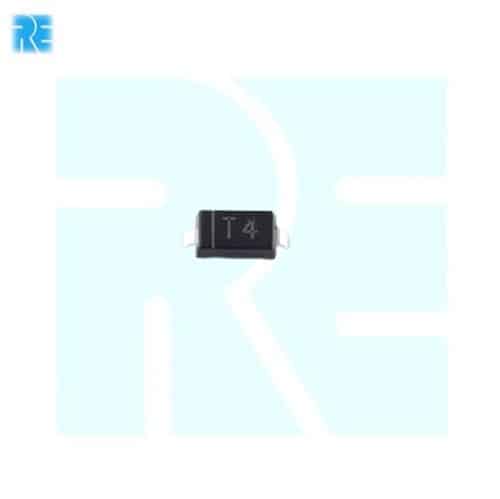

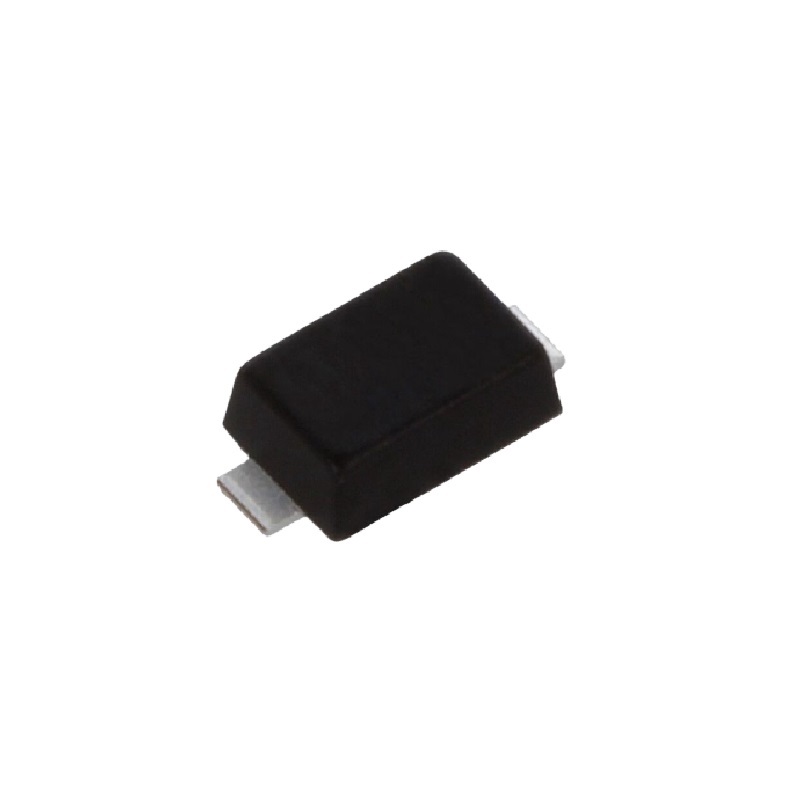

1N4148W High Speed Fast Switching Diode SOD-123 (Signal Switching Diode)

The 1N4148W High Speed Fast Switching Diode is a surface mount signal switching diode designed for high-speed switching, signal processing, protection circuits, logic circuits, and general-purpose electronic applications. It features a compact SOD-123 package, fast switching speed, low leakage current, and reliable electrical performance, making it ideal for modern high-density PCB designs.

The 1N4148W is widely used in consumer electronics, communication equipment, embedded systems, industrial control circuits, and automotive electronics.

Key Features -

• High speed fast switching diode

• Compact SOD-123 package

• Fast switching performance

• Low forward voltage drop

• Low leakage current

• High reliability

• Suitable for high-frequency signal applications

• Surface mount design

Specifications -

• Product Type: High Speed Switching Diode

• Part Number: 1N4148W

• Diode Type: Signal Switching Diode

• Package Type: SOD-123

• Mounting Type: Surface Mount (SMD)

• Peak Repetitive Reverse Voltage (VRRM): 100V

• Average Forward Current (IF): 150mA

• Forward Voltage (VF): Approximately 1V (Typical)

• Reverse Recovery Time (trr): Approximately 4ns

• Operating Temperature: Minus 65 Degree Celsius to Plus 150 Degree Celsius

• Additional Features: Fast switching speed, low leakage current, compact package

Applications -

• High speed switching circuits

• Signal processing circuits

• Logic circuits

• Protection circuits

• Communication equipment

• Embedded electronic systems

• Consumer electronics

• General-purpose electronic projects
