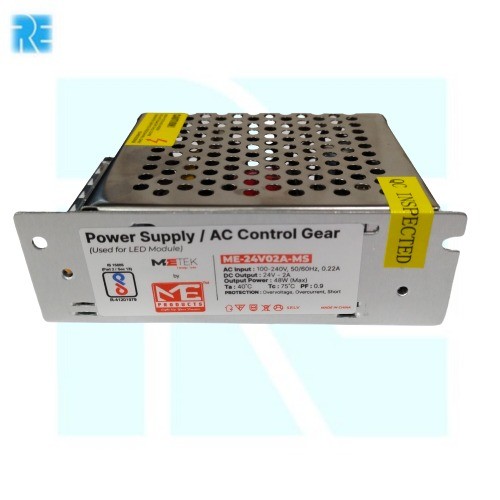

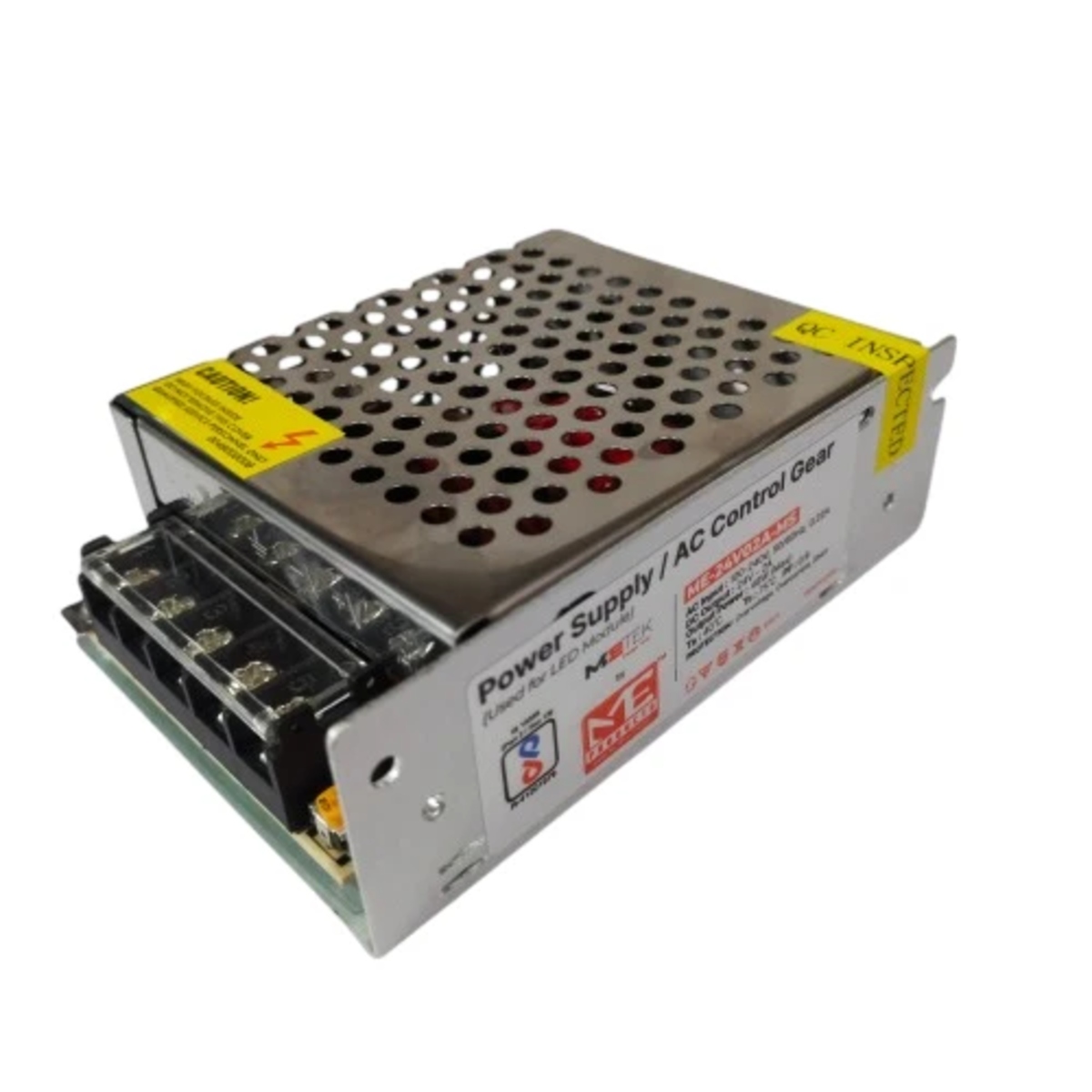

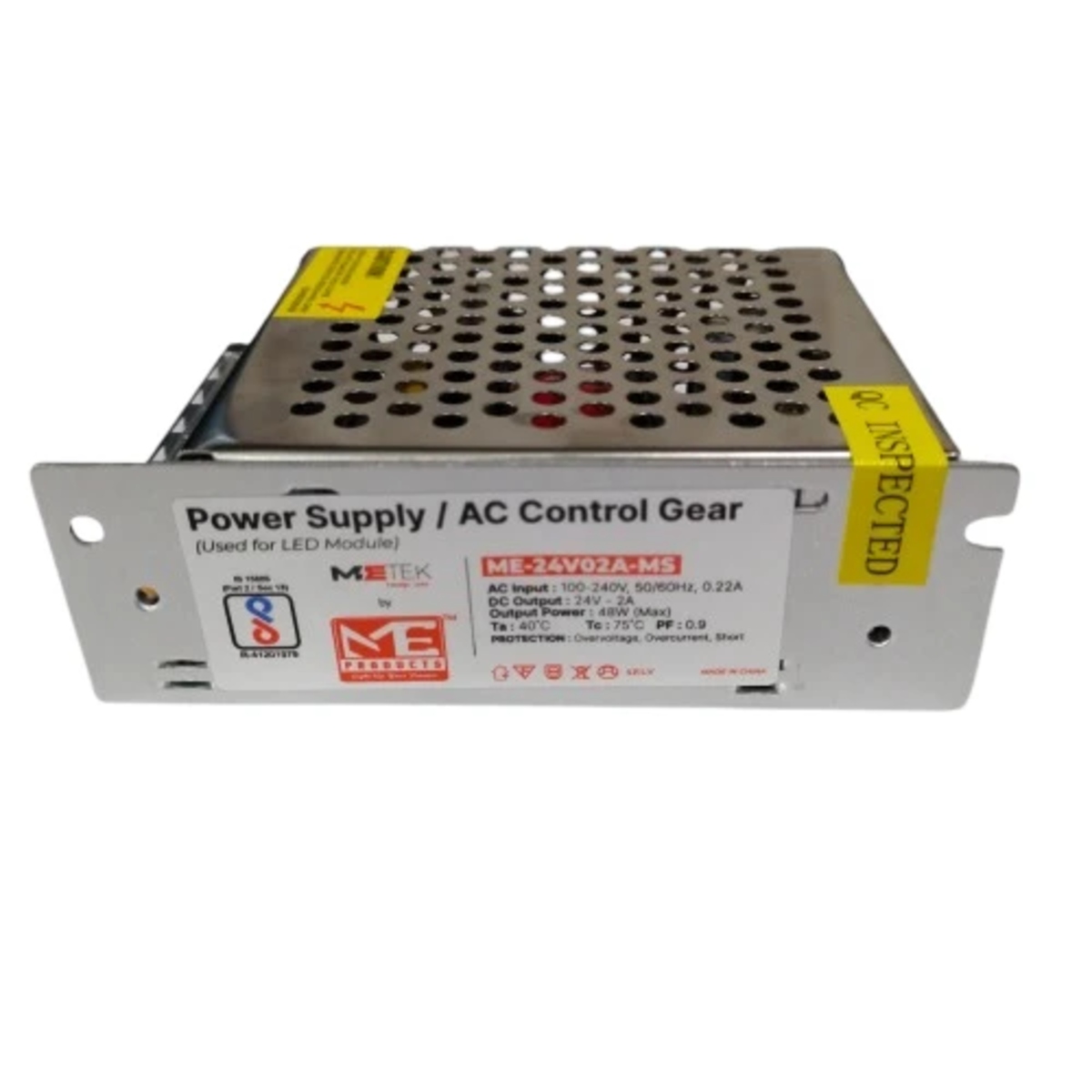

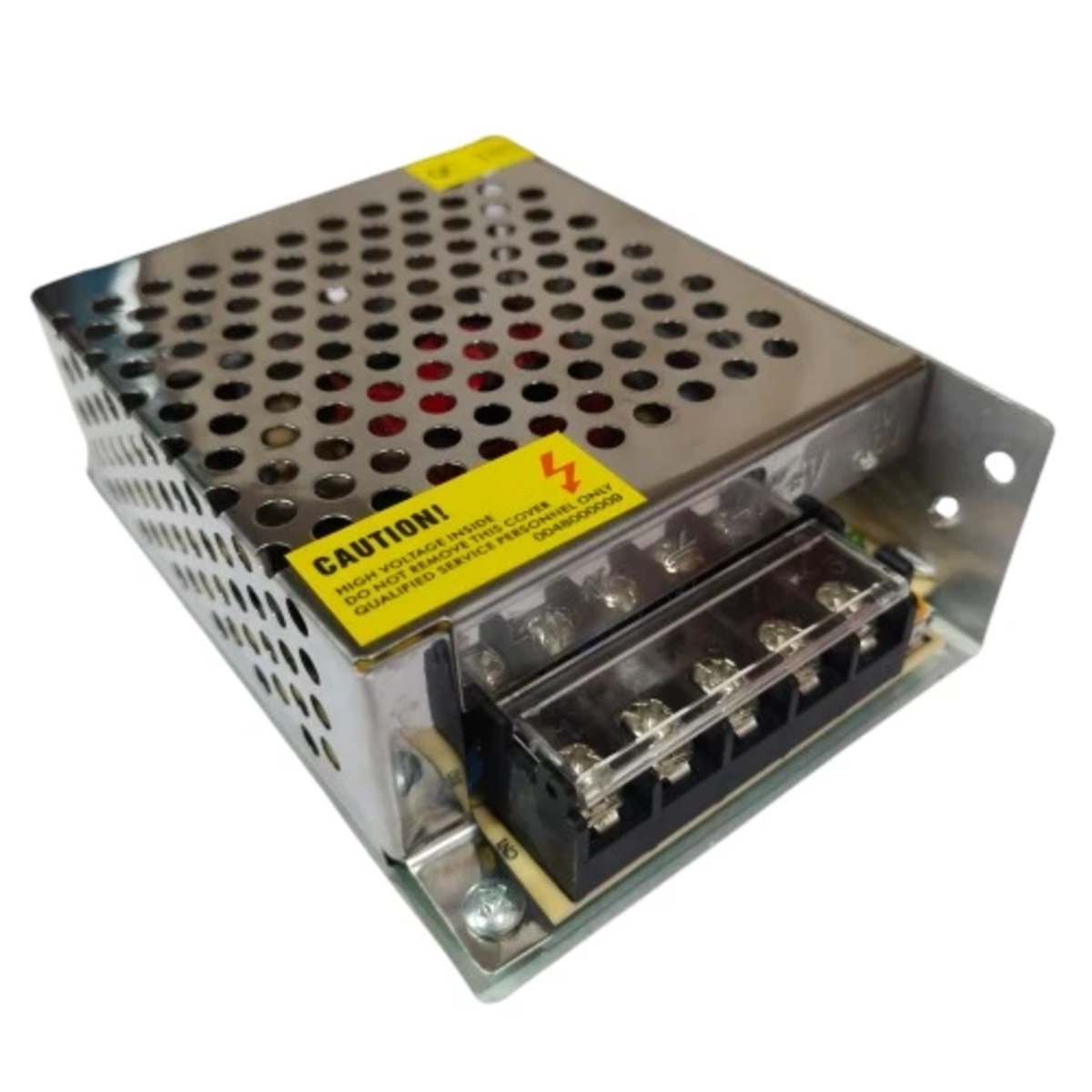

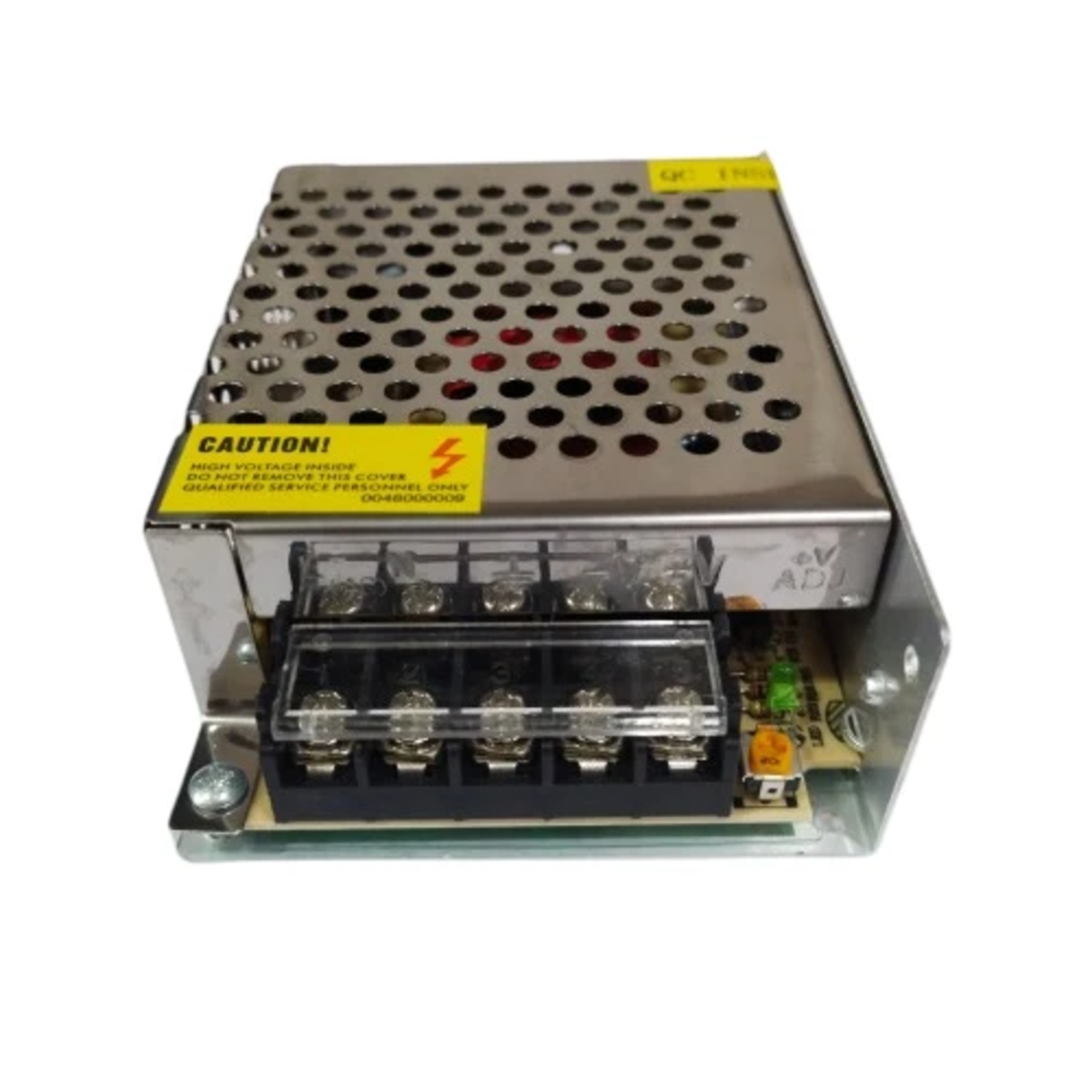

METEK ME-24V02A-MS 24V 2A SMPS 48W DC Metal Power Supply (Industrial Switching Power Supply)

The METEK ME-24V02A-MS 24V 2A SMPS is a compact and reliable 48W enclosed switching power supply designed to provide a stable and regulated 24V DC output. Delivering up to 2A output current, it is suitable for industrial automation, LED modules, access control systems, microcontrollers, sensors, relay modules, and other low-power electronic equipment.

Built with a rugged metal enclosure, the power supply provides excellent durability while its fanless free-air convection cooling enables quiet operation. Integrated overload, overvoltage, and short-circuit protection with auto-recovery helps protect both the power supply and connected equipment. The wide 100V to 264V AC input range makes it suitable for different AC power environments.

Key Features -

• Regulated 24V DC output

• Maximum output current of 2A

• 48W maximum output power

• Wide 100V to 264V AC input range

• Adjustable output voltage

• Rugged metal enclosure

• Fanless and silent operation

• Free-air convection cooling

• Overload, overvoltage, and short-circuit protection

• Auto-recovery protection function

• LED power status indicator

• CE certified

Specifications -

• Product Type: Enclosed Switching Mode Power Supply (SMPS)

• Brand: METEK

• Model: ME-24V02A-MS

• Input Voltage: 100V to 264V AC

• Input Frequency: 50Hz / 60Hz

• Output Voltage: 24V DC

• Output Current: 2A Max

• Output Power: 48W

• Output Voltage Adjustment: +/-20 Percent

• Efficiency: Greater than 80 Percent

• Cooling Method: Free Air Convection

• Enclosure Type: Metal Casing

• Mounting Type: Screw / Panel Mount

• Power Indicator: LED

• Operating Temperature: -10C to 60C

• Storage Temperature: -20C to 85C

• Dimensions: 110mm x 75mm x 35mm

• Weight: Approximately 180g

• Certification: CE

• Protection Features: Overload, Overvoltage and Short-Circuit Protection

Applications -

• Industrial automation systems

• Access control systems

• Low-power LED modules

• PLC signal equipment

• Arduino development boards

• ESP32 and microcontroller projects

• Sensor power supplies

• Relay modules

• Industrial control panels
