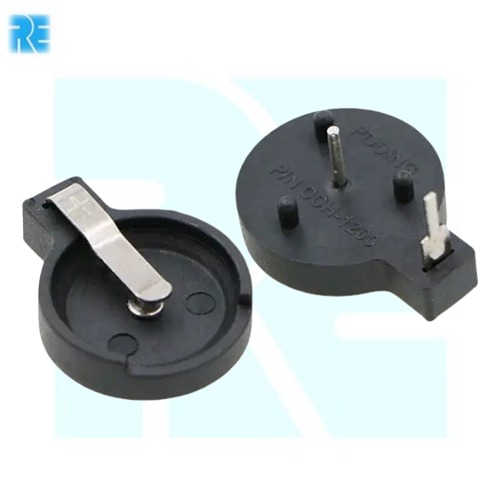

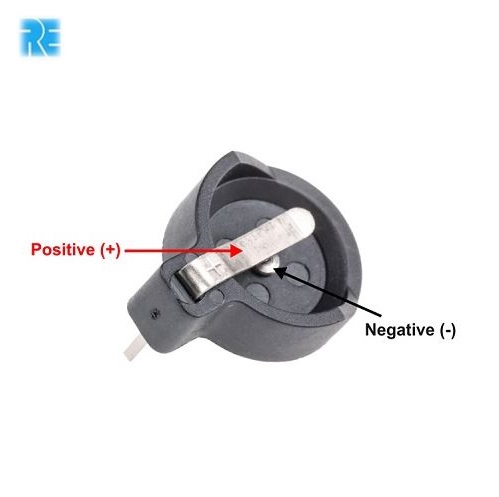

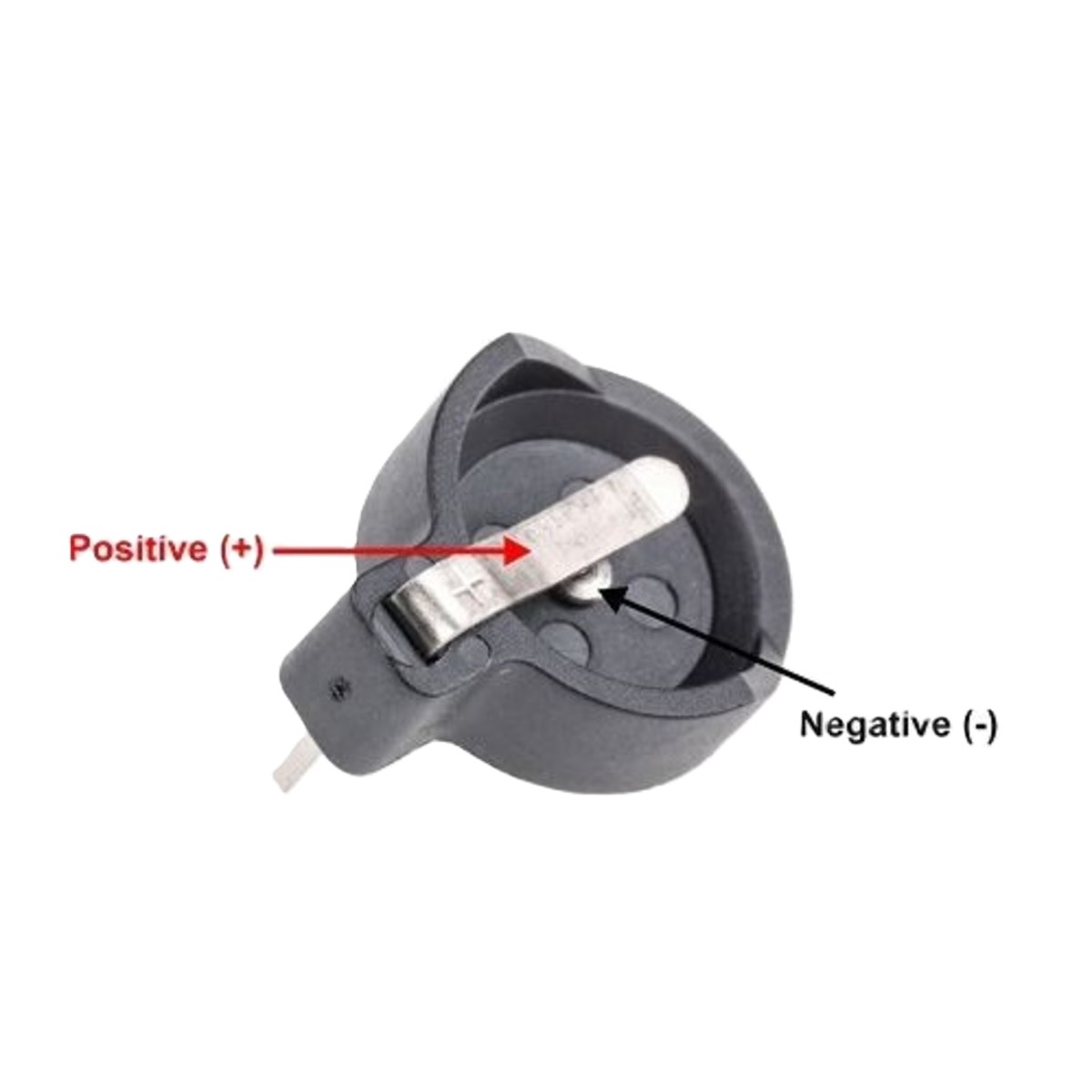

CR1225 / CR1220 Coin Cell Battery Holder (PCB Mount Coin Cell Holder)

The CR1225 / CR1220 Coin Cell Battery Holder is a compact and durable battery holder designed to securely accommodate CR1225 and CR1220 3V lithium coin cell batteries. It provides reliable electrical contact, low contact resistance, and excellent insulation performance, making it suitable for long-term use in electronic circuits. Designed for PCB mounting, this holder allows quick battery installation and replacement without soldering the battery directly to the board.

With a 2A current rating, 500V AC/DC voltage rating, 30mOhm contact resistance, and 500MOhm insulation resistance, this battery holder is ideal for memory backup circuits, RTC modules, embedded systems, IoT devices, medical equipment, and portable electronic products.

Key Features -

• Compatible with CR1225 and CR1220 lithium coin cell batteries

• Secure battery retention for reliable operation

• Low 30mOhm contact resistance

• High 500MOhm insulation resistance

• Rated for 2A current (AC/DC)

• Rated for 500V (AC/DC) insulation voltage

• Compact PCB mount design

• Easy battery installation and replacement

• Durable construction for long service life

Specifications -

• Product Type: Coin Cell Battery Holder

• Compatible Battery: CR1225 / CR1220

• Battery Voltage: 3V

• Mounting Type: PCB Mount

• Current Rating: 2A (AC/DC)

• Voltage Rating: 500V (AC/DC)

• Contact Resistance: 30mOhm

• Insulation Resistance: 500MOhm

Applications -

• Real-Time Clock (RTC) modules

• CMOS memory backup circuits

• Embedded systems

• IoT devices and wireless sensors

• Medical electronic equipment

• Consumer electronic products

• Test and measurement equipment

• Portable electronic devices

• Industrial control systems
