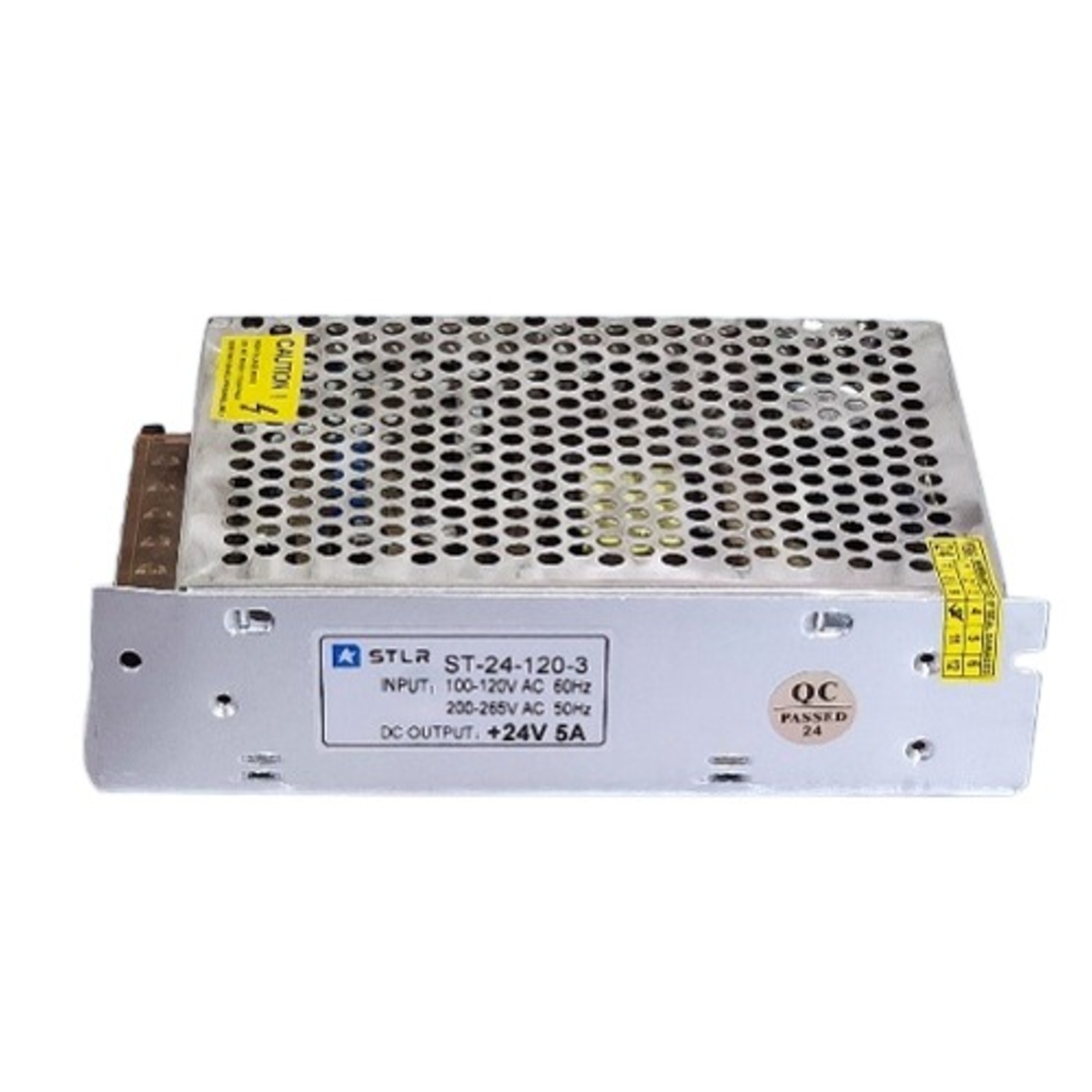

24V 5A SMPS ST Series DC Metal Power Supply ST24-120-3 BIS Certified (120W Switching Power Supply)

The ST24-120-3 is a BIS-certified switched mode power supply designed to deliver a stable 24V DC output at up to 5A current. With a maximum output power of 120W and high conversion efficiency, it is suitable for industrial automation, CCTV systems, LED lighting, access control systems, communication equipment, and embedded electronic applications.

The robust metal enclosure provides efficient heat dissipation and reliable long-term performance in industrial and commercial environments.

Key Features -

• Regulated 24V DC output voltage

• Output current up to 5A

• Maximum power output of 120W

• BIS certified power supply

• High efficiency up to 85%

• Compact metal enclosure design

• Built-in protection circuitry

• Suitable for continuous operation

Specifications -

• Product type - Switching Mode Power Supply (SMPS)

• Model - ST24-120-3

• Input voltage - 220V AC ±15%

• Input frequency - 50Hz

• Input current - 3.4A RMS Maximum

• Output voltage - 24V DC

• Output current - 5A

• Output power - 120W

• Ripple and noise - 300mV Maximum

• Turn-on delay time - 1 Second

• Rise time - 20ms

• Efficiency - 85% Typical

• Leakage current - 0.35mA

• Operating temperature - -10C to +40C

• Enclosure type - Metal Case

• Certification - BIS Certified

• Warranty - 1 Year

Interfaces -

• L - AC Live Input

• N - AC Neutral Input

• Earth - Ground Connection

• V+ - Positive DC Output

• V- - Negative DC Output

Applications -

• Industrial automation systems

• CCTV surveillance equipment

• LED lighting installations

• Access control systems

• Communication equipment

• Control panels

• Embedded electronics projects
