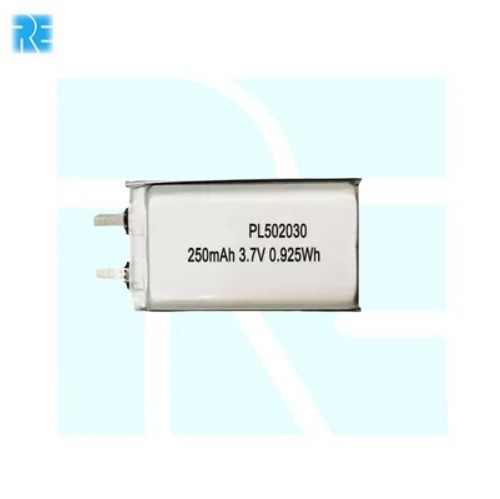

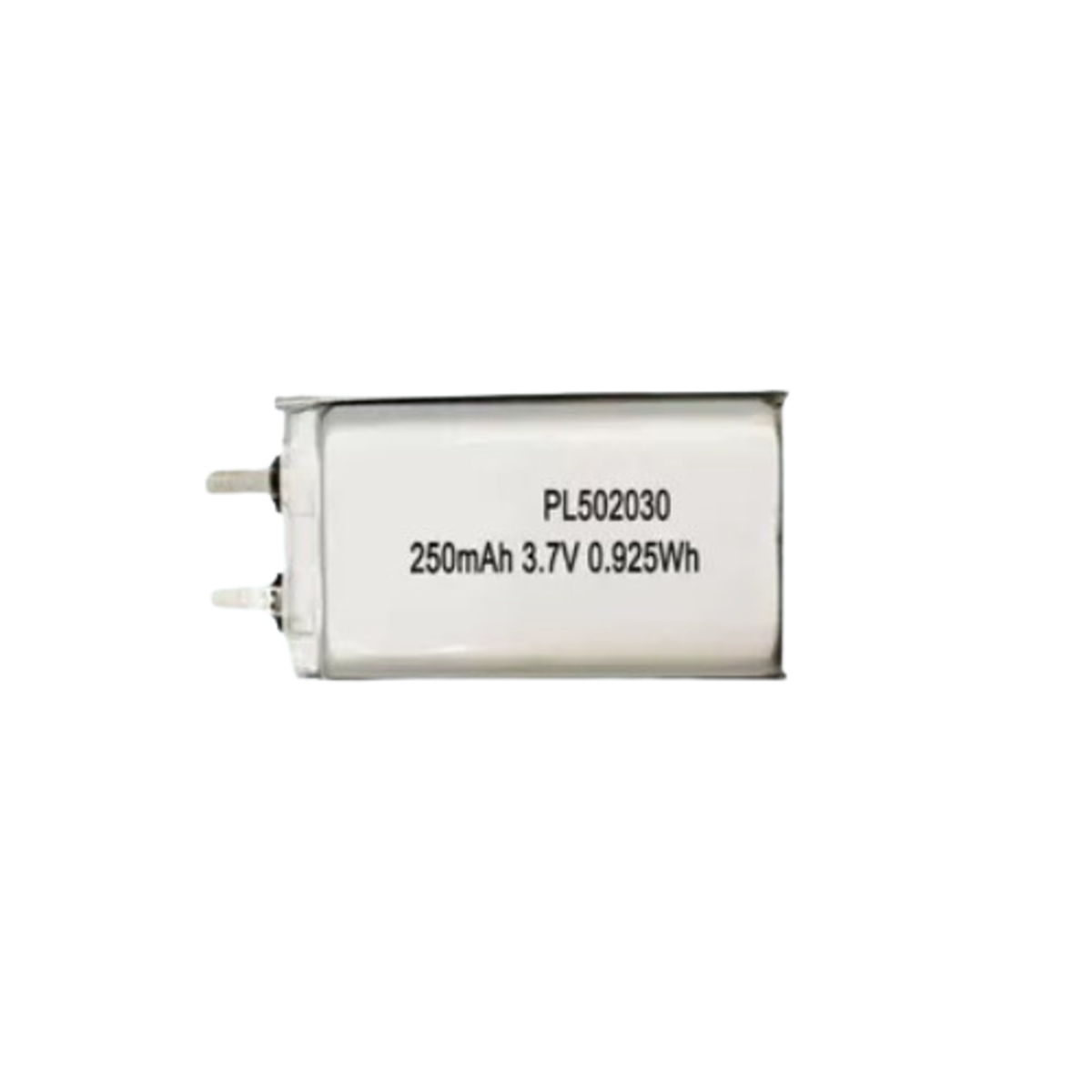

PL502030 3.7V 250mAh Lithium Polymer Battery Power Pack (Rechargeable Li-Po Battery)

The PL502030 3.7V 250mAh Lithium Polymer Battery Power Pack is a compact rechargeable lithium polymer battery designed for portable electronics, IoT devices, embedded systems, wearable devices, GPS equipment, smart devices, and other space-constrained applications. It provides a 3.7V nominal voltage, 250mAh capacity, and approximately 0.93Wh energy capacity.

The 502030 designation corresponds to an approximately 5mm thick, 20mm wide, and 30mm long cell. Actual pack dimensions can vary slightly depending on the protection circuit, wires, and connector.

Key Features -

• 3.7V rechargeable lithium polymer battery

• 250mAh battery capacity

• Approximately 0.93Wh energy capacity

• Compact 502030 pouch cell format

• Lightweight and space-saving design

• High energy density

• Low self-discharge characteristics

• Suitable for portable and embedded electronics

Specifications -

• Product Type: Rechargeable Lithium Polymer Battery

• Model: PL502030

• Battery Chemistry: Lithium Polymer (Li-Po)

• Nominal Voltage: 3.7V

• Capacity: 250mAh

• Energy Rating: 0.93Wh

• Maximum Charge Voltage: 4.2V

• Cell Dimensions: Approximately 5mm x 20mm x 30mm

• Pack Dimensions: Approximately 5mm x 20mm x 32mm depending on protection circuit and wiring

• Rechargeable: Yes

• Protection Circuit: Depends on Battery Variant

• Connector: Depends on Battery Variant

• Additional Features: Compact construction, high energy density, low self-discharge, lightweight design

Applications -

• IoT devices

• Wearable electronics

• GPS devices

• Smart watches and portable devices

• Bluetooth equipment

• Portable audio equipment

• Embedded electronic systems

• DIY electronic projects
