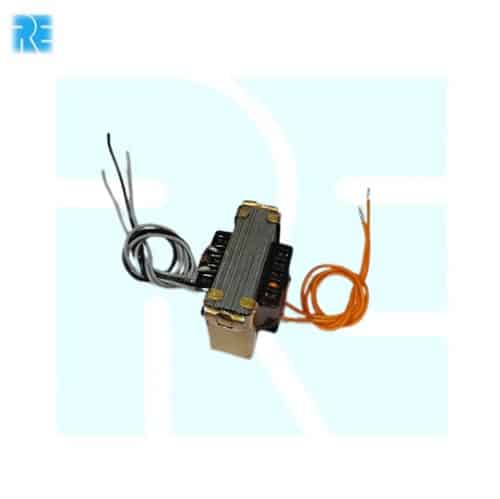

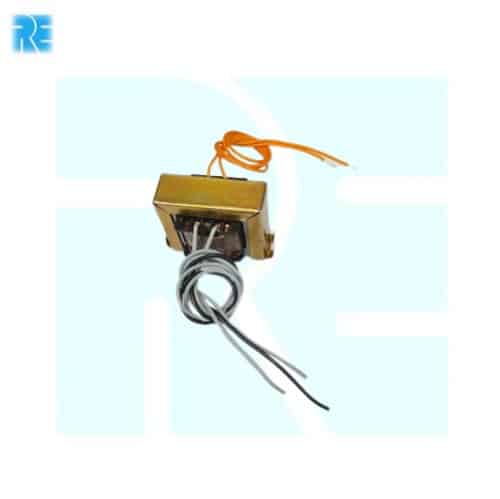

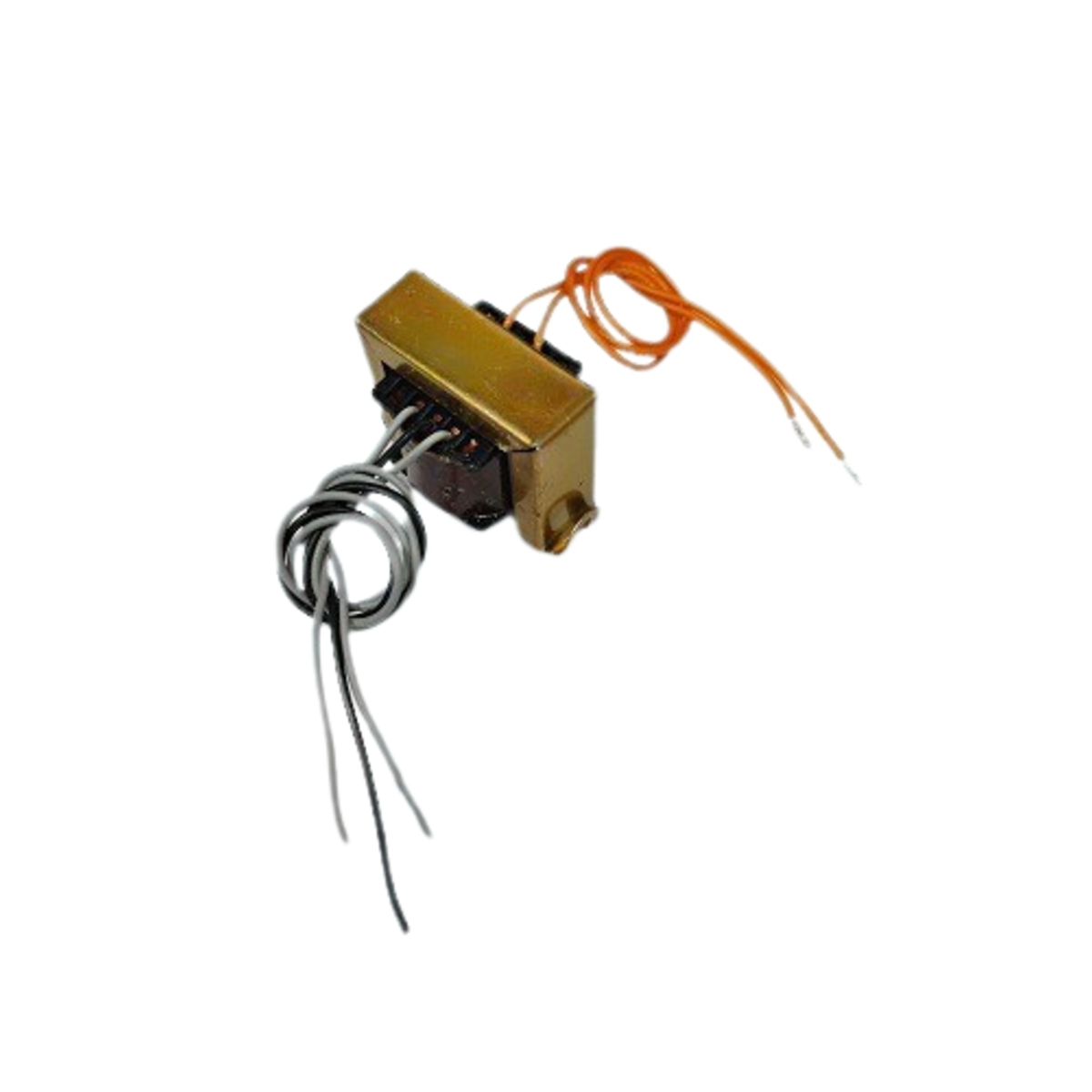

6-0-6V Center Tapped 500mA Step Down Transformer (12V AC CT PCB Mount Transformer)

The 6-0-6V Center Tapped 500mA Step Down Transformer is a compact and reliable transformer designed to convert 230V AC mains voltage into a 6-0-6V AC center-tapped output. With a maximum output current of 500mA, it is ideal for dual power supply circuits, rectifier circuits, audio amplifiers, battery chargers, control systems, and embedded electronic applications. The center-tapped secondary winding enables the generation of both positive and negative DC supply rails after rectification.

Designed with excellent electrical isolation between the primary and secondary windings, this transformer provides safe, stable, and low-noise operation for a wide range of low-power electronic circuits.

Key Features -

• Steps down 230V AC to 6-0-6V AC center-tapped output

• Maximum output current of 500mA

• Center-tapped secondary winding

• Provides galvanic isolation between input and output

• Stable and reliable AC output

• Compact and durable construction

• Low-noise operation

• Suitable for continuous use

• Easy PCB or chassis mounting

Specifications -

• Product Type: Center Tapped Step Down Transformer

• Primary Voltage: 230V AC

• Secondary Voltage: 6-0-6V AC

• Output Current: 500mA Max

• Frequency: 50Hz / 60Hz

• Power Rating: 6VA

• Secondary Type: Center Tapped

• Insulation Type: Double Insulated Windings

• Mounting Type: PCB Mount / Chassis Mount (Model Dependent)

Applications -

• Dual DC power supply circuits

• Audio amplifier power supplies

• Battery charger circuits

• Linear regulated power supplies

• Embedded electronic systems

• Industrial control circuits

• Instrumentation equipment

• Educational and laboratory projects

• DIY electronic projects
