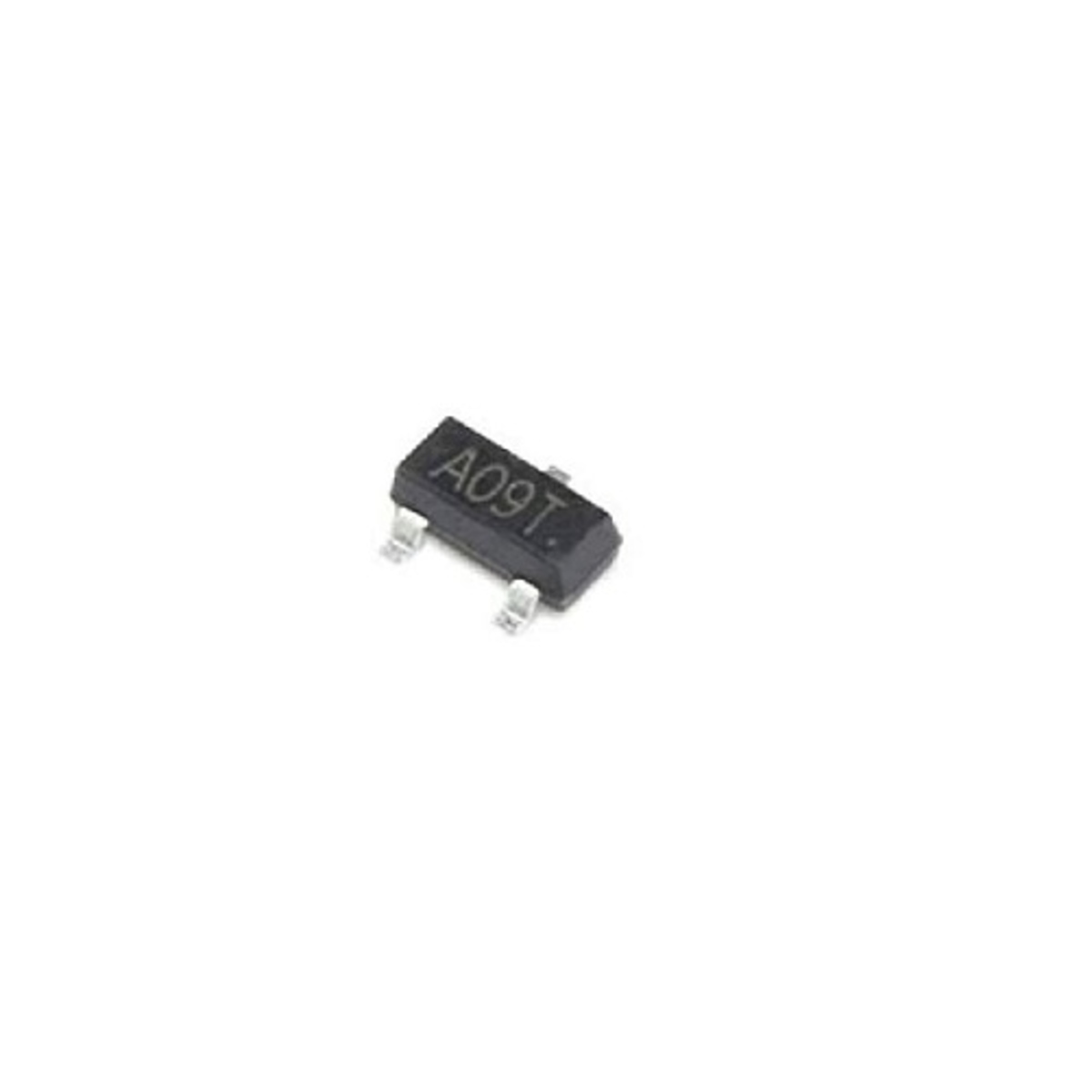

AO3400 30V 5.8A N-Channel MOSFET SOT-23 (Power Switching Transistor)

The AO3400 N-Channel MOSFET is a compact power switching transistor designed for efficient switching and control of DC loads in electronic circuits. It features a 30V drain-source voltage rating and 5.8A continuous drain current rating, making it suitable for low-voltage power management, load switching, motor control, and battery-powered applications.

The compact SOT-23 surface-mount package makes it suitable for space-constrained PCB designs and high-density electronic assemblies.

Key Features -

• N-Channel MOSFET

• 30V drain-source voltage rating

• 5.8A continuous drain current

• ±12V gate-source voltage rating

• Compact SOT-23 package

• Surface-mount PCB design

• Fast electronic switching

• Suitable for low-voltage power applications

Specifications -

• Product Type: N-Channel MOSFET

• Manufacturer: Alpha & Omega Semiconductor

• Manufacturer Part Number: AO3400

• Drain-Source Voltage: 30V

• Gate-Source Voltage: ±12V

• Continuous Drain Current: 5.8A

• Diode Forward Voltage: 0.7V to 1V

• Package: SOT-23

• Mounting Type: Surface Mount (SMD)

Applications -

• DC load switching

• Battery-powered electronics

• Power management circuits

• Motor and actuator control

• LED switching and control

• Microcontroller load switching

• Portable electronic devices

• Power supply circuits

• Embedded systems

• General-purpose electronic switching
