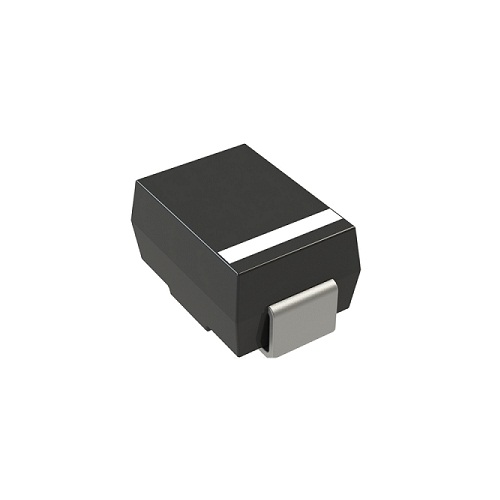

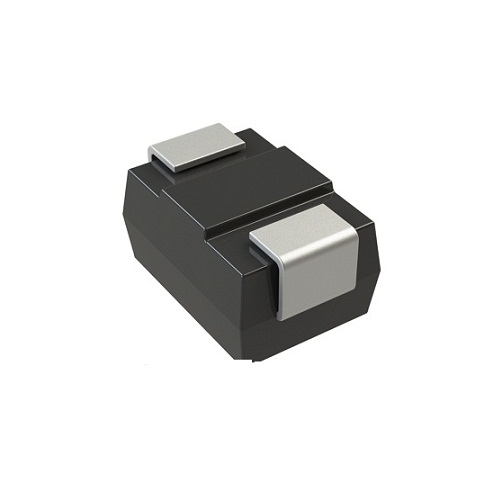

B120-13-F Schottky Rectifier Diode – 20V, 1A, SMB (DO-214AA) SMD

The B120-13-F is a 1A Schottky rectifier diode designed for efficient power rectification and high-speed switching applications. Featuring a 20V reverse voltage rating, low forward voltage drop of 500mV, and a DO-214AA (SMB) surface-mount package, it minimizes power loss while delivering excellent switching performance. The Schottky barrier technology provides negligible reverse recovery time, making it ideal for switch-mode power supplies, DC-DC converters, reverse polarity protection, freewheeling circuits, and portable electronic devices.

Key Features -

• Schottky barrier rectifier for high-efficiency operation

• Reverse voltage rating of 20V

• Average forward current of 1A

• Low forward voltage drop of 500mV (max) @ 1A

• Fast switching with negligible reverse recovery time

• Compact DO-214AA (SMB) surface-mount package

• Low power loss for improved efficiency

• Suitable for high-frequency power conversion circuits

Specifications -

• Product Type - Schottky Rectifier Diode

• Part Number - B120-13-F

• Technology - Schottky Barrier

• Reverse Voltage (VRRM) - 20V

• Average Rectified Current (IO) - 1A

• Forward Voltage (VF Max) - 500mV @ 1A

• Reverse Leakage Current (IR Max) - 500µA @ 20V

• Switching Speed - Fast Recovery ≤ 500ns (>200mA IO)

• Junction Capacitance - 110pF @ 4V, 1MHz

• Mounting Type - Surface Mount (SMD)

• Package - DO-214AA (SMB)

Applications -

• Switch Mode Power Supplies (SMPS)

• DC-DC converters

• Reverse polarity protection circuits

• Battery charging systems

• Freewheeling diode applications

• Portable electronic devices

• Power management circuits

• Consumer and industrial electronics
