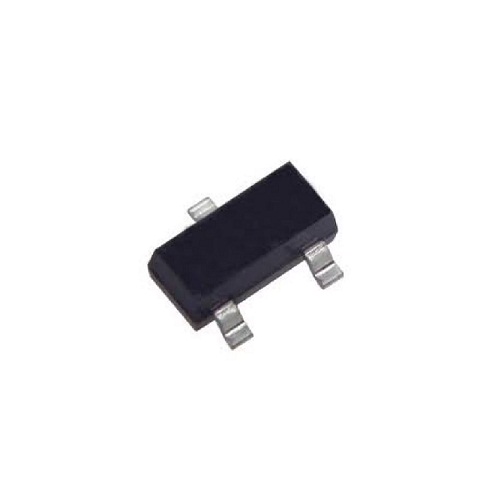

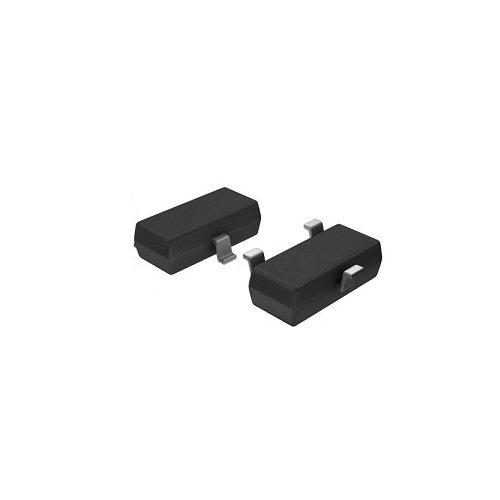

BAV99 70V 200mA High-Speed Switching Diode SOT-23

The BAV99 is a high-speed switching diode consisting of two series-connected silicon switching diodes in a compact SOT-23 surface-mount package. Designed for fast switching applications, signal routing, clamping, and protection circuits, it offers low leakage current, fast recovery time, and reliable performance in compact electronic designs.

Key Features -

• Dual high-speed switching diode configuration

• Maximum repetitive reverse voltage of 70V

• Forward current rating of 200mA

• Fast reverse recovery time of 6ns

• Compact SOT-23 surface-mount package

• Low leakage current and high switching efficiency

Specifications -

• Product type - Switching Diode

• Part number - BAV99

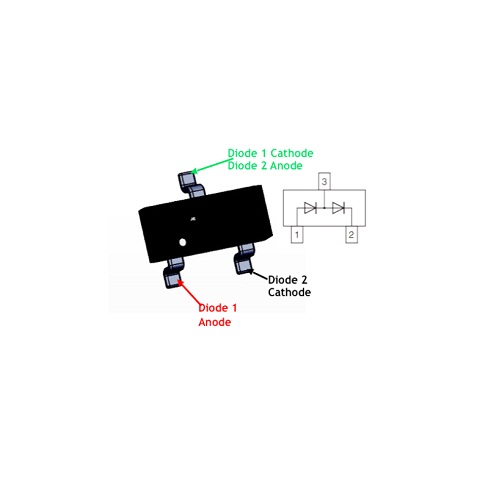

• Diode configuration - Dual Series Switching Diode

• Package type - SOT-23

• Mounting type - Surface Mount (SMD)

• Number of pins - 3

• Maximum repetitive reverse voltage (VRRM) - 70V

• Forward current (IF) - 200mA

• Average rectified current (IO) - 150mA

• Peak forward surge current (IFSM) - 2A

• Maximum forward voltage (VF) - 1.25V

• Reverse recovery time (trr) - 6ns

• Power dissipation (PD) - 225mW

• Operating temperature range - -55°C to +150°C

Applications -

• High-speed switching circuits

• Signal routing and steering networks

• Logic circuits and digital electronics

• Clamping and protection circuits

• Communication equipment

• Consumer electronics

• Embedded and microcontroller-based systems
